model:PT-1200/1400/1700M

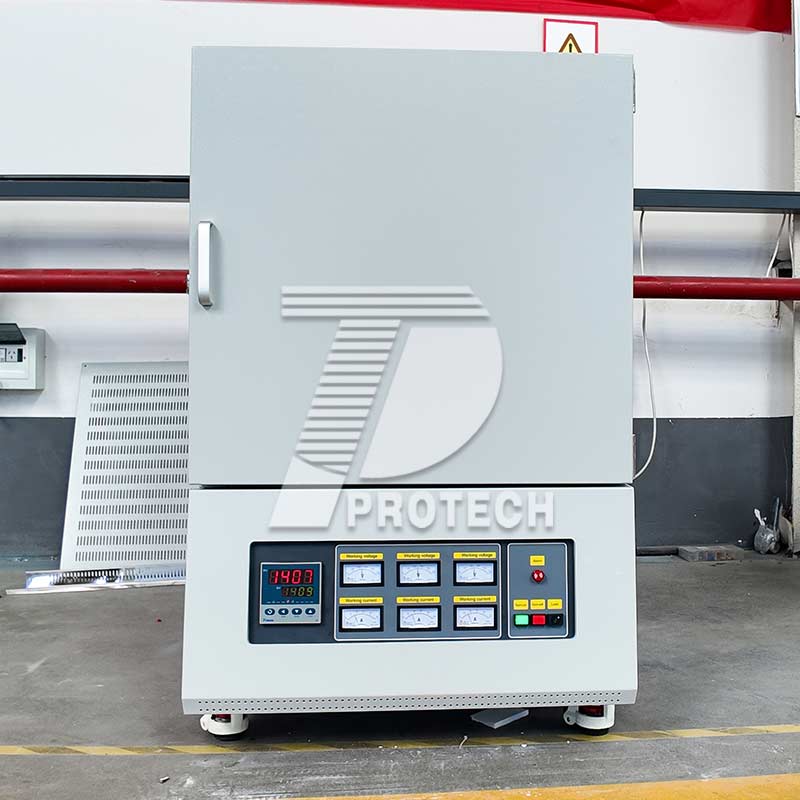

PT-1200/1400/1700M series muffle furnace
Application: Mainly used in colleges, universities, research institutes, industrial and mining enterprises to conduct heat treatment work such as high temperature experiment, material sintering, composition analysis, quality inspection and so on.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Introduction：vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThe Protech brand muffle furnace uses advanced alumina polycrystalline fiber material to refine the furnace, and the furnace surface is coated with high-temperature alumina coating, which effectively improves heating efficiency and prolongs service life; double-layer shell structure, vacuum insulation technology, greatly reducing the surface temperature of the box; PID intelligent 30-stage temperature control system, and equipped with over-temperature, disconnection, over-current protection and other functions. The furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, and energy saving.vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacvkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacApplication:vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacMainly used in colleges, universities, research institutes, industrial and mining enterprises to conduct heat treatment work such as high temperature experiment, material sintering, composition analysis, quality inspection and so on.vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacvkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFeatures of Protech muffle furnace :vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac1. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Heavy duty double layer structure with cooling fan. Lower teperature in outside case. vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier). vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. Power control with 30 segments programmable.vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Protech Company can customize different sizes, temperatures and functional applications according to customer needs.vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
Technical Parameters:
| Model |
PT-1200M |
PT-1400M |
PT-1700M |
| Working Temperature |
1100℃ |
1300℃ |
1600℃ |
| Maximum Temperature |
1200℃ |
1400℃ |
1700℃ |
| Thermal couple |
N type |
S type |
B type |
| Heating Element |
Resistance wire |
Silicon Carbide (SiC) |
Molybdenum silicon rod |
| Temperature Control |
30 steps programmable and PID automatic controlvkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Or optional touch screen model） |
| Heating Rate |
0~20℃/min |
| Temperature Accuracy |
+/-1℃ |
| Working Voltage |
110-480V,50/60Hz (according to your requirement) |
| Sandard Chamber Size |
| Chamber size(mm) |
Effective volume(L) |
| 150*150*150 |
3.4 |
| 150*150*200 |
4.5 |
| 200*200*200 |
8 |
| 200*200*300 |
12 |
| 300*300*300 |
27 |
| 300*300*400 |
36 |
| 400*400*400 |
64 |
| 500*500*500 |
125 |
| 600*600*600 |
216 |
| 800*800*800 |
512 |
| Can be customized according to customer needs |
| Optional Features: Powder off when door open,LCD touch screen,Remote Control,Computer Monitor,Door Open way (Up,Down,Lift,Right) |
vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacvkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Note: there are different chamber sizes for your choice.vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
vkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

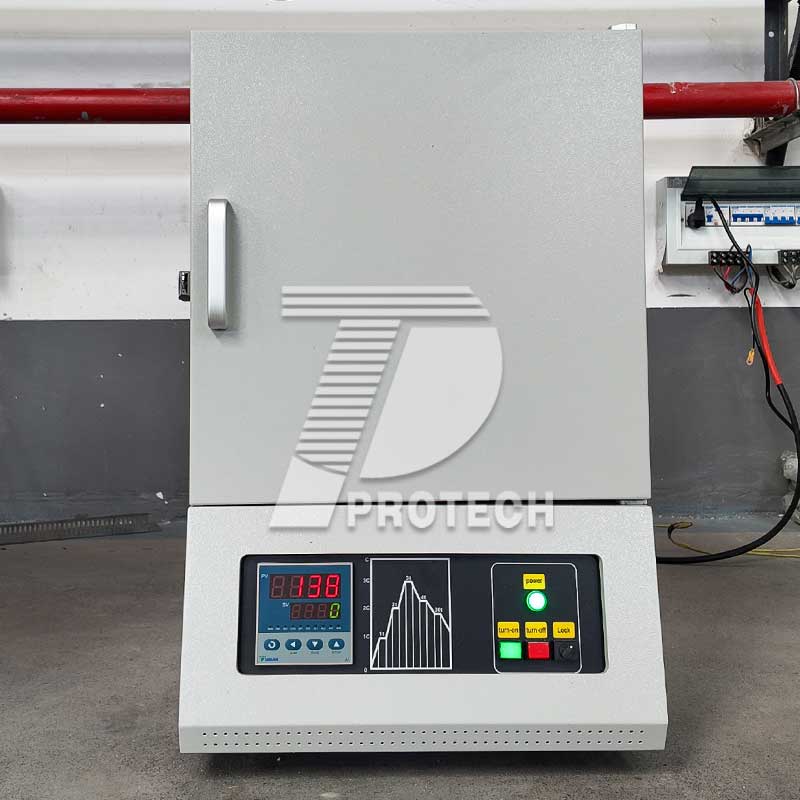

Touch screen box furnacevkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacvkfMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
