Detailed Parameters Of The Product
Introduction:B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

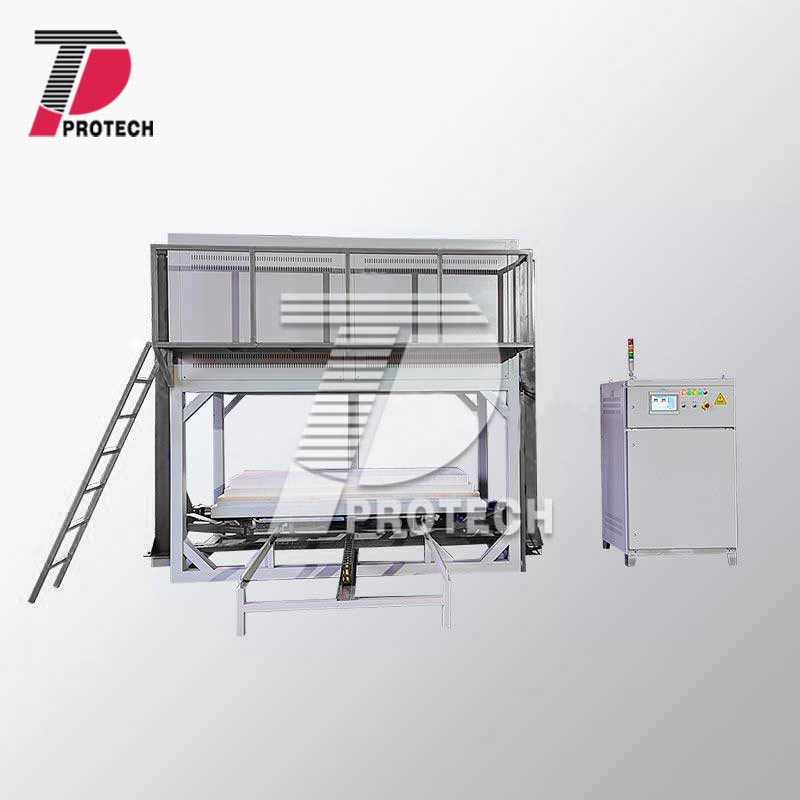

The split, large, touch-screen-controlled hydraulic lift furnace is a new energy-saving, environmentally friendly electric furnace developed and manufactured independently by our company using advanced technology. The charge table can be raised and lowered, and the electrically operated pull-out mechanism facilitates material loading and unloading, improving work efficiency. This equipment features an elegant appearance, advanced and rational structure, and simple and convenient operation. The exterior is crafted from high-quality cold-rolled steel plate using precision CNC machine tools and finished with a luxurious, attractive two-color imported epoxy powder electrostatic spraying process. It is heat-resistant, corrosion-resistant, and long-lasting.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
This furnace offers advantages such as a uniform temperature distribution, a double-layer heat-resistant furnace body with a surface temperature close to room temperature, and an adjustable heating rate. The furnace chamber is constructed using imported high-temperature composite fiber material using CNC technology, offering strong thermal shock resistance, strong resistance to rapid cooling and heating, excellent corrosion resistance, and a long service life without collapse, crystallization, or slag. It is pollution-free and has a long service life.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
In addition, through our independently developed control software, the furnace can be connected to a computer, enabling remote control, furnace start-up and shutdown, temperature program setting and storage, and historical curve viewing and printing.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacApplications:B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The lift-type atmosphere furnace is a common type of heat treatment equipment, widely used in the following areas:B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacSintering: Used for material sintering, heat treatment, and material analysis and testing, such as the sintering of magnetic materials, powder metallurgy materials, rare earth materials, and precious metals.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacHeat Treatment: Performs heat treatment processes such as annealing and tempering on metals and their alloys under atmospheric conditions, as well as precision annealing and microcrystallization of glass and precision annealing of crystals.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacElectronics: Electronic component manufacturing, semiconductor material preparation, and curing of electronic packaging materials.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacNanomaterials: The preparation of nanomaterials requires a demanding reaction environment. Atmosphere furnaces provide a stable atmosphere and precise temperature control, facilitating the synthesis and growth of nanomaterials.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacCeramics: Sintering of electronic ceramics and high-temperature structural ceramics, preparing ceramic glazes, and controlling the atmosphere to regulate interfacial reactions between different components in composite materials, thereby improving the performance of the composites.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFeatures:B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Energy-saving and electricity-saving, environmentally friendly and pollution-free, the furnace body and control are integrated, the furnace bottom is electrically hydraulically lifted, the lifting is smooth and vibration-free.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. The intelligent programmable microcomputer controls 30 programmable curves and automatically heats up, keeps warm and cools down according to the preset program.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. According to different material and process requirements, such as nitrogen, argon and other inert gases can be introduced.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. Complete safety protection devices, such as over-temperature alarm, burnout protection, over-current protection, leakage protection, gas leakage detection, etc.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
| Product name |
Large split hydraulic lifting atmosphere furnace |
| Model |
PT-AS1200 |
PT-AS1400 |
PT-AS1700 |
| Max.temperature |
1200℃ |
1400℃ |
1700℃ |
| Working temperature |
≤1100℃ |
≤1300℃ |
≤1600℃ |
| Heating element |
Resistance wire |
Silicon carbon rod |
Silicon molybdenum rod |
| Thermocouple |
N type |
S type |
B type |
| Temperature control method |
LCD touch screen automatic control, PID adjustment, intelligent microcomputer control, multi-stage programmable temperature control curveB3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac |
| Temperature control protection |
Over-temperature and burnout protection function |
| Heating rate |
Suggest 0~10°C/min |
| Temperature control accuracy |
±1℃ |
| Chamber material |
High purity alumina refractory fiber |
| Furnace shell structure |
Carbon steel shell, double shell and equipped with air cooling system |
| Door opening method |
The furnace door is used as a material platform, and the bottom is hydraulically lifted, which is smooth and vibration-free, making loading and unloading convenient.B3LMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac |
| flow meter |
Float flowmeter/proton flowmeter (optional) |
| Vacuum system (optional) |
Rotary vane pump |
| Optional Configuration |
Power off when door is opened, touch screen, remote control, computer display |
| Furnace chamber size (width * height * depth (mm)) |
| 500*500*500mm(125L) |
500*500*700mm(175L) |
500*500*800mm(200L) |
800*800*800mm(512L) |
| 800*800*1200mm(768L) |
1000*1000*1000mm(1000L) |
1000*1000*1500mm(1500L) |
1000*1000*2000mm(2000L) |
| Other sizes can be customized according to customer needs |
