Ceramic Powder Sintering: Laboratory Furnace Temperature Curve Design

1. Introduction

2. Core Principles of Temperature Curve Design

1. Matching Powder Characteristics: Different ceramic powders have significant differences in sintering activity, thermal stability, and phase transition temperature (e.g., zirconia undergoes monoclinic-tetragonal phase transition around 1170℃, and the initial sintering temperature of alumina is approximately 1200℃). The temperature curve should avoid rapid heating in the critical temperature range of phase transition to prevent internal stress accumulation.

2. Balancing Kinetics and Thermodynamics: The sintering process involves the competition between particle diffusion, densification, and grain growth. The temperature curve needs to regulate the heating rate and holding time to promote densification while inhibiting abnormal grain growth, achieving a balance between "low-temperature rapid sintering" and "high-temperature densification".

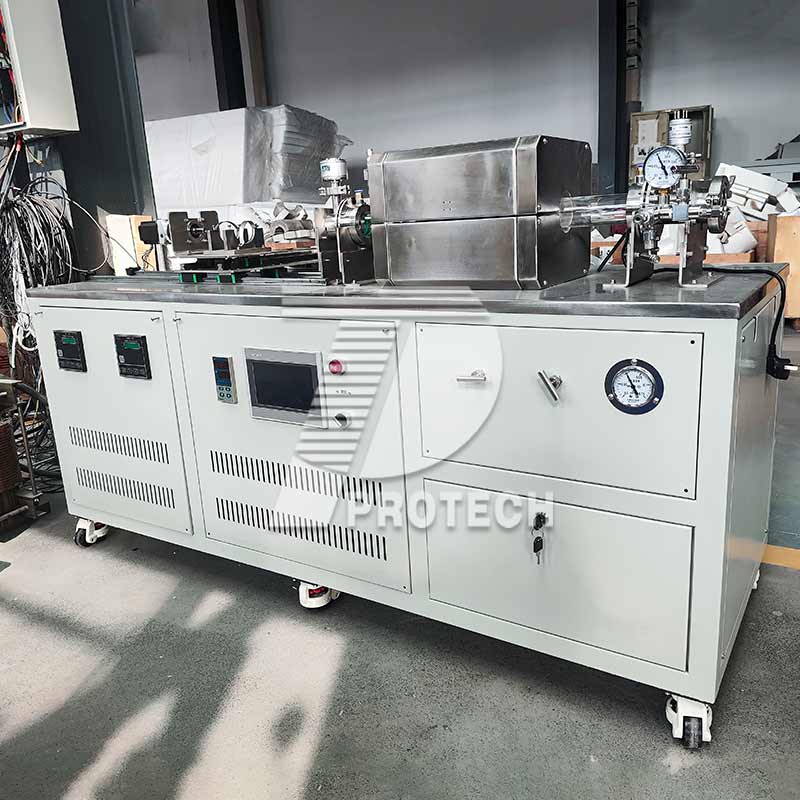

3. Adapting to Electric Furnace Performance: The heating power, temperature field uniformity, and temperature control accuracy (usually requiring ±1℃) of laboratory electric furnaces will affect the actual execution effect of the temperature curve. When designing, the upper limit of the heating rate of the electric furnace (generally 5-20℃/min) and the temperature fluctuation range during the holding stage should be considered.

3. Design Skills for Key Stages of Temperature Curve

(1) Heating Stage: Segmented Speed Control and Gradient Transition

1. Low-temperature Binder Removal Section (Room Temperature - 600℃): It mainly removes adsorbed water, organic binders (such as PVA, PEG), and lubricants in the powder. The heating rate is controlled at 2-5℃/min. Slow heating can prevent gas generated by the rapid decomposition of organic matter from being discharged in a timely manner, leading to the formation of pores or cracking inside the sintered body. For powders with high carbon content, a 1-2h holding can be added in the 400-500℃ range to ensure sufficient decomposition of organic matter.

2. Medium-temperature Preheating Section (600℃ - Initial Sintering Temperature): This stage mainly completes the reduction of oxides on the surface of powder particles, lattice rearrangement, and initial sintering neck formation. The heating rate can be increased to 5-10℃/min. It is necessary to avoid the phase transition temperature range of the powder (such as the crystal transformation of silicon nitride around 1400℃). If there is a phase transition, the heating rate should be reduced to 3-5℃/min before the phase transition temperature, or a 0.5-1h holding should be added to reduce phase transition stress.

3. High-temperature Sintering Section (Initial Sintering Temperature - Maximum Sintering Temperature): A critical stage for densification, with the heating rate controlled at 3-8℃/min. The maximum sintering temperature should be determined according to the powder type (e.g., 1550-1700℃ for alumina, 1450-1600℃ for stabilized zirconia), usually 200-300℃ lower than the melting point of the powder. To promote sintering densification, a 1-3h holding can be added in the range of 100-150℃ before the maximum temperature to achieve pore closure through particle diffusion.

(2) Holding Stage: Accurate Temperature Control and On-demand Adjustment

1. Holding Temperature: Generally, the maximum sintering temperature is used as the holding temperature. For powders prone to grain growth (such as pure alumina), the holding temperature can be appropriately reduced (50-100℃), and densification can be achieved by extending the holding time; for powders with low sintering activity (such as silicon nitride), holding at the maximum sintering temperature is required to ensure sufficient diffusion.

2. Holding Duration: In laboratory scale, the holding duration is usually 1-4h. The finer the powder particles and the higher the sintering activity, the shorter the holding duration (e.g., 1-2h holding is sufficient for nano-zirconia powder); when the particles are coarser or fewer sintering aids are added, the holding time needs to be extended (3-4h). Excessive holding should be avoided, otherwise, it will lead to abnormal grain growth and reduce the mechanical properties of ceramic products.

(3) Cooling Stage: Gradient Cooling to Avoid Cracking

1. High-temperature Cooling Section (Maximum Sintering Temperature - 600℃): There is still a lot of thermal stress inside the ceramic at this stage, and the cooling rate should be controlled at 5-10℃/min. For powders containing phase transitions (such as zirconia), the cooling rate should be reduced to 2-5℃/min in the phase transition temperature range (around 1170℃), or a 0.5h holding should be added to avoid cracking caused by the superposition of volume change due to phase transition and thermal shrinkage.

2. Low-temperature Cooling Section (600℃ - Room Temperature): The internal stress of the ceramic has been basically released, and the cooling rate can be increased to 10-20℃/min to shorten the experimental cycle. If it is necessary to prepare ceramic materials with a specific crystal structure (such as tetragonal zirconia), a rapid cooling (quenching) method can be adopted in the low-temperature section to inhibit crystal transformation.

4. Optimized Temperature Curve Cases for Different Ceramic Powders

1. Alumina (Al₂O₃) Powder: The initial sintering temperature is about 1200℃, and the maximum sintering temperature is 1600-1700℃. Temperature curve design: Room Temperature → 5℃/min → 600℃ (1h holding) → 8℃/min → 1200℃ → 5℃/min → 1650℃ (2h holding) → 8℃/min → 600℃ → 15℃/min → Room Temperature. Through low-temperature binder removal holding, medium-temperature rapid heating, and high-temperature appropriate holding, this curve achieves a density of >95% and controls the grain size at 5-10μm.

2. Yttria-stabilized Zirconia (YSZ) Powder: The initial sintering temperature is about 1100℃, and the maximum sintering temperature is 1450-1550℃. Temperature curve design: Room Temperature → 3℃/min → 500℃ (1h holding) → 7℃/min → 1100℃ → 4℃/min → 1500℃ (1.5h holding) → 5℃/min → 1170℃ (0.5h holding) → 12℃/min → Room Temperature. By holding in the phase transition temperature range, cracking is effectively avoided, and the density can reach more than 98%.

3. Silicon Nitride (Si₃N₄) Powder: The initial sintering temperature is about 1400℃, and the maximum sintering temperature is 1700-1800℃ (nitrogen atmosphere). Temperature curve design: Room Temperature → 4℃/min → 600℃ (1h holding) → 6℃/min → 1400℃ → 3℃/min → 1750℃ (3h holding) → 7℃/min → 600℃ → 10℃/min → Room Temperature. High-temperature holding under nitrogen atmosphere promotes liquid-phase sintering, achieving densification and whisker growth.

5. Practical Precautions

1. Temperature Field Calibration: Before the experiment, thermocouples should be used to calibrate the temperature at different positions in the electric furnace to ensure temperature field uniformity (temperature difference ≤ ±3℃), avoiding uneven performance of sintered bodies caused by local temperature deviations.

2. Atmosphere Control: For easily oxidizable powders (such as silicon nitride, silicon carbide), a protective atmosphere (nitrogen, argon) should be introduced during sintering, and the air in the electric furnace should be replaced with protective gas before heating to prevent powder oxidation.

3. Sample Placement: Samples should be placed in the central area of the electric furnace's temperature field, avoiding being close to the furnace wall or heating elements to prevent local overheating or insufficient temperature. For batch sintering, the sample spacing should be ≥5mm to ensure atmosphere circulation and temperature uniformity.

4. Curve Verification and Adjustment: When using a temperature curve for the first time, the effect should be verified through density testing (Archimedes method), microstructural observation (SEM), and mechanical property testing (hardness, fracture toughness) of the sintered body. The heating rate, holding time, or maximum sintering temperature should be adjusted according to the test results. For example, if the density is insufficient, the maximum sintering temperature can be increased by 50-100℃ or the holding time can be extended by 1h; if grain growth is excessive, the holding temperature can be reduced or the holding time can be shortened.
