Application of Rotary Tube Furnace in Activation Processes of Melamine and Activated Carbon

As a continuous and high-precision industrial heat treatment equipment, rotary tube furnace demonstrates irreplaceable core value in the field of carbon material activation. This paper focuses on the activation processes of melamine (nitrogen-containing activator) and activated carbon (traditional carbon-based material), emphasizing the adaptive design, process control advantages and industrial application value of rotary tube furnace in the two systems. By analyzing the equipment's precise control capabilities over activation temperature, atmosphere and material reaction efficiency, this paper highlights its core role in improving the adsorption performance of carbon materials and ensuring product stability, providing technical reference for relevant industries in selecting efficient activation equipment.

1. Introduction
The activation modification of carbon materials is a key link to improve their pore structure and adsorption performance, which is widely used in industrial scenarios such as wastewater treatment, gas purification and catalyst carriers. As a new type of activator with both activation and nitrogen doping functions, melamine can reconstruct the active sites on the surface of carbon materials through high-temperature decomposition; traditional activated carbon needs to expand pores through physical or chemical activation. Both types of processes have strict requirements on the temperature uniformity, continuous operation stability and process controllability of heating equipment.

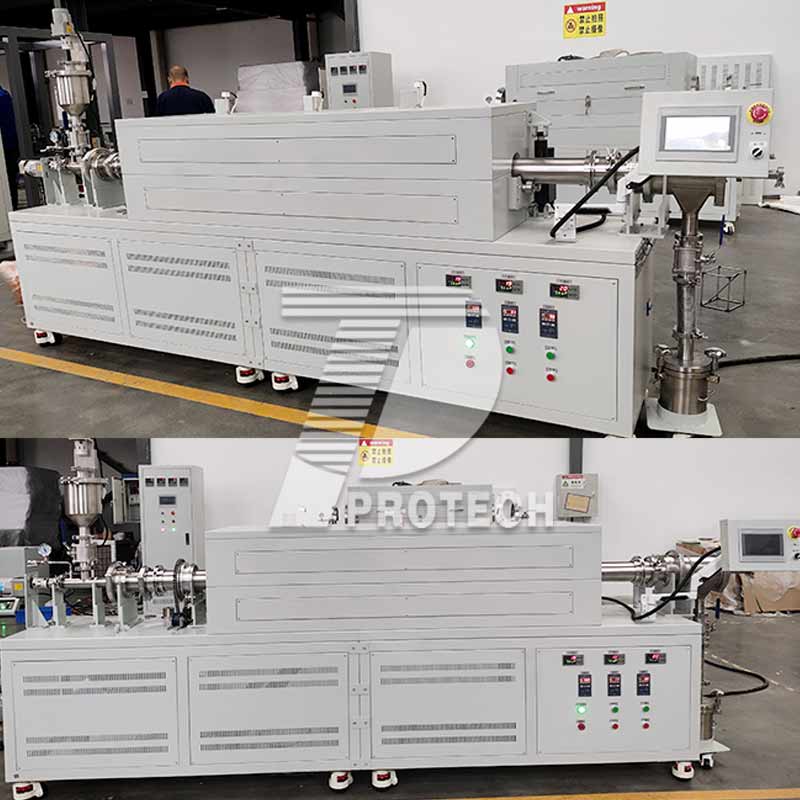

With its unique structural design (inclined rotating furnace tube, segmented heating zone, precise atmosphere control system), rotary tube furnace solves the pain points of low efficiency and large fluctuation of product performance of traditional batch activation equipment, and has become the mainstream choice for industrial-grade carbon material activation. Focusing on the equipment characteristics of rotary tube furnace, this paper compares and analyzes its application differences in melamine and activated carbon activation processes, and deeply interprets how the equipment adapts to different activation needs through parameter optimization, helping the industry realize efficient and stable carbon material preparation.

2. Core Equipment Characteristics of Rotary Tube Furnace
The structure and function design of rotary tube furnace are specially tailored for continuous high-temperature reaction scenarios, with core advantages reflected in the following aspects:

Precise temperature control: Adopting segmented heating design with temperature control accuracy up to ±1℃, it can achieve wide-range temperature regulation of 700-1200℃, perfectly matching the different activation temperature requirements of melamine (800-1000℃) and activated carbon (700-900℃);
Uniform material reaction: The furnace tube rotates at an adjustable speed of 5-30r/min, combined with inclined angle design, ensuring that materials fully tumble in the high-temperature zone and are heated uniformly, avoiding local overheating or insufficient reaction;
Flexible atmosphere regulation: Supports precise proportioning and continuous supply of various activation atmospheres such as nitrogen, water vapor and carbon dioxide, which can be quickly switched according to the reaction needs of the two activation systems;
Continuous and efficient production: The optimized design of furnace tube length and feeding/discharging system realizes integrated continuous feeding, reaction and discharging of materials, with production efficiency 3-5 times higher than batch equipment, meeting the needs of industrial large-scale production;
Safe and stable operation: Equipped with safety devices such as high-temperature alarm, atmosphere leakage detection and automatic feeding regulation, it can operate stably for a long time and reduce industrial production risks.

3. Application Comparison of Rotary Tube Furnace in Two Activation Processes
3.1 Process Adaptability Design
Melamine activation system: Targeting the high-temperature decomposition characteristics of melamine, the rotary tube furnace adopts a rapid heating module (5-10℃/min) to ensure its full decomposition in the range of 850-950℃ to generate nitrogen-containing active gases. At the same time, through the regulation of furnace tube rotation speed (10-20r/min), it ensures the sufficient combination of nitrogen atoms and the surface of carbon materials, realizing synchronous pore carving and nitrogen doping;
Activated carbon activation system: Aiming at the need for long-term heat preservation to expand pores of activated carbon, the equipment can precisely control the heating rate (10-15℃/min) and holding time (90-180min). Combined with the stable supply of carbon dioxide or water vapor atmosphere, it efficiently removes impurities on the surface of activated carbon through oxidation reaction and expands the original pore structure.

3.2 Embodiment of Equipment Regulation Advantages
Improve product performance: The temperature uniformity of the rotary tube furnace can stabilize the nitrogen content of melamine-activated products at 8-12at% with a specific surface area of 1400-1600m²/g; the specific surface area of activated carbon-activated products can be increased to 1600-1900m²/g with a more uniform pore structure, and the fluctuation range of adsorption performance is controlled within ±5%;
Reduce energy consumption and cost: The continuous production mode reduces energy loss caused by heating and cooling of the equipment. Combined with the optimized design of thermal insulation materials, the energy consumption per unit product is reduced by 20-30% compared with traditional equipment;
Flexible process switching: Temperature, rotation speed, atmosphere and other parameters can be quickly adjusted through the touch screen, realizing the switching between melamine and activated carbon activation processes without large-scale equipment modification, adapting to multi-variety production needs.

4. Industrial Application Value of Rotary Tube Furnace
Stabilize product quality: In industrial production, the rotary tube furnace can ensure the consistency of key indicators such as specific surface area, pore volume and adsorption capacity of carbon materials in each batch through precise control of process parameters, solving the industry pain point of large product performance fluctuation of traditional equipment;
Adapt to diverse needs: Targeting the different application scenarios of melamine-activated products (suitable for polar pollutant adsorption and catalysis) and activated carbon-activated products (suitable for non-polar pollutant adsorption and gas separation), the equipment can realize customized product performance through parameter optimization;
Environmental protection and safety guarantee: The closed furnace body design is linked with the exhaust gas treatment system to effectively collect waste gas generated during activation and reduce environmental pollution risks; at the same time, the automatic monitoring and early warning functions of the equipment provide comprehensive safety guarantee for industrial production.

5. Conclusions
With its precise temperature control, uniform material reaction and continuous production mode, the rotary tube furnace has become the ideal equipment choice for melamine and activated carbon activation processes. In the melamine activation system, the equipment realizes synchronous nitrogen doping and pore activation through high-temperature rapid heating and precise atmosphere regulation; in the activated carbon activation system, it efficiently improves the specific surface area and pore volume of materials with stable heat preservation performance and oxidizing atmosphere supply.

Whether for the process adaptation of new activators or the modification and upgrading of traditional carbon materials, the rotary tube furnace can meet the activation needs of different scenarios through flexible parameter regulation and reliable operation performance. Its industrial application not only improves the preparation efficiency and product quality of carbon materials, but also promotes the technological upgrading and green development of related industries, showing broad market application prospects.
