Application of Laboratory Rotary Tube Furnace in Powder Metallurgy and Ceramic Sintering

1. Introduction
In the field of materials science research and laboratory preparation, sintering technology is the core process to achieve densification and performance improvement of powder materials. The laboratory rotary tube furnace, with its unique structural design and precise process control capability, has become an ideal equipment for laboratory research on powder metallurgy and ceramic materials. Its core advantage lies in the slow rotation of the furnace tube, which enables materials to achieve uniform heating, sufficient mixing, and efficient reaction in a high-temperature environment, effectively solving problems such as particle agglomeration and composition segregation that are prone to occur in static sintering. This article will detail the working principle and core technical characteristics of the laboratory rotary tube furnace, and analyze its process advantages and practical value in combination with specific application scenarios of powder metallurgy and ceramic sintering.

2. Working Principle and Core Technical Characteristics of Laboratory Rotary Tube Furnace
2.1 Working Principle

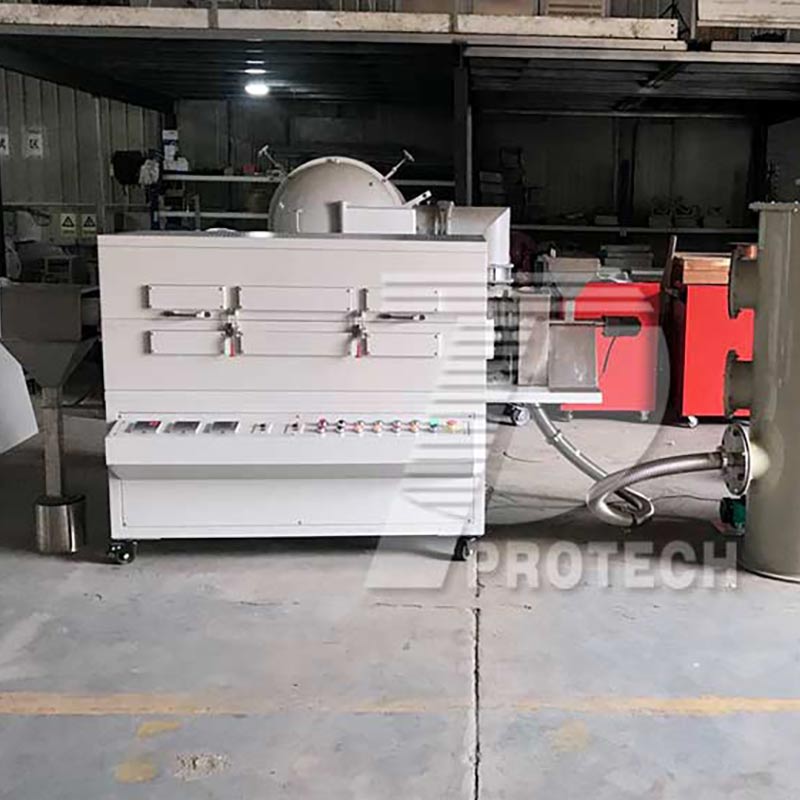

The laboratory rotary tube furnace is mainly composed of a furnace body, a rotating furnace tube, a heating system, a temperature control system, and a transmission system. Its core working logic is as follows: the powder raw material is loaded into a high-temperature resistant furnace tube, and the transmission system drives the furnace tube to rotate slowly at a set speed; the heating system adopts an electric heating method (such as resistance wire or silicon carbide rod heating) to form a uniform high-temperature field inside the furnace tube; the temperature control system real-time monitors the temperature inside the furnace tube through a thermocouple and achieves precise temperature control (temperature control accuracy up to ±1℃) combined with PID regulation technology; during the rotation process, the materials continuously tumble and stir, ensuring that each particle can uniformly contact the high-temperature environment, thereby realizing densification, grain growth, and phase structure transformation during the sintering process.

2.2 Core Technical Characteristics
Outstanding Uniformity: The combination of furnace tube rotation and optimized heating element layout ensures that the temperature field uniformity error is ≤±5℃ (in the effective heating zone). The material heating consistency is far superior to that of static sintering equipment, avoiding local over-sintering or under-sintering.
Precise Control: The temperature control range covers room temperature to 1800℃ (some high-temperature models can reach 2000℃), supporting multi-stage program heating/cooling. The heating rate can be steplessly adjusted within 1-20℃/min to meet the sintering process requirements of different materials.
Flexible Adaptability: The furnace tube material can be quartz, corundum, silicon carbide, etc., adapting to different atmospheric environments such as air, nitrogen, argon, and hydrogen. It can realize various processes such as conventional sintering, atmosphere-protected sintering, and reduction sintering.
Easy Operation: Equipped with a digital touch panel, it supports storage and recall of process parameters (up to 100+ sets of process curves can be stored). The furnace tube rotation speed is adjustable from 0 to 30r/min, meeting the mixing and sintering needs of different materials.
Safety and Reliability: It is equipped with multiple safety mechanisms such as over-temperature alarm, thermocouple break protection, and overload protection. The furnace body adopts a double-layer insulation structure, and the outer layer temperature is ≤60℃, effectively preventing scalding and ensuring laboratory operation safety.

3. Application in Powder Metallurgy
Powder metallurgy is a process technology for preparing metal or metal matrix composite materials through powder preparation, forming, sintering, and subsequent processing. The applications of laboratory rotary tube furnace in this field are mainly concentrated in the following scenarios:

3.1 Metal Powder Sintering
For metal powders such as iron-based, copper-based, and nickel-based, the rotary tube furnace can realize low-temperature sintering (600-1000℃) and high-temperature sintering (1000-1400℃). Under the protective atmosphere of nitrogen or argon, metal powder particles achieve densification through diffusion and fusion, forming sintered bodies with certain strength and electrical conductivity. For example, in the laboratory preparation of iron-based powder metallurgy parts, sintering through a rotary tube furnace at 1100-1200℃ for 2-4 hours can form a strong metallurgical bond between iron particles, avoid oxidation, and the sintered body density can reach more than 90% of the theoretical density.

3.2 Alloy Powder Preparation and Sintering
In the laboratory research of high-performance alloys such as titanium alloys and superalloys, the rotary tube furnace can be used for sintering and homogenization treatment of pre-alloyed powders. For example, Ti-6Al-4V alloy powder, after sintering at 1200-1300℃ under argon protection, can eliminate composition segregation inside the powder, form a uniform β-phase structure, and provide high-quality raw materials for subsequent hot working or 3D printing forming. In addition, the rotary tube furnace can also be used for sintering metal matrix composites (such as Al-SiC, Cu-W), realizing the firm combination of reinforcement phase and matrix through interface reaction at high temperature.

3.3 Reduction Sintering Process
For oxide powders (such as iron oxide, nickel oxide), the rotary tube furnace can realize reduction sintering under hydrogen or hydrogen-nitrogen mixture atmosphere. For example, in the laboratory preparation of nano-iron powder, Fe₂O₃ powder is mixed with a reducing agent (such as carbon powder) and loaded into a corundum furnace tube. Sintering at 800-900℃ under hydrogen atmosphere reduces Fe₂O₃ to elemental iron, and the rotation of the furnace tube ensures the sufficient progress of the reduction reaction, with the product purity reaching more than 99.5%.

4. Application in Ceramic Sintering
Ceramic materials have excellent properties such as high temperature resistance, corrosion resistance, and high hardness. Their sintering process requires densification and grain boundary fusion of ceramic particles at high temperature. The laboratory rotary tube furnace has significant application advantages in ceramic sintering, mainly reflected in the following aspects:

4.1 Oxide Ceramic Sintering
Alumina, zirconia, titania, and other oxide ceramics are commonly used materials in laboratory research. The rotary tube furnace can achieve high-temperature sintering at 1200-1800℃ under air or oxygen atmosphere. For example, in the preparation of zirconia ceramics, zirconia powder is mixed with a stabilizer (such as Y₂O₃) and sintered at 1500-1600℃. The rotation of the furnace tube ensures uniform heating of the materials, and zirconia ceramics with high densification and uniform grains can be prepared, whose fracture toughness can reach more than 10MPa·m¹/².

4.2 Non-oxide Ceramic Sintering
Non-oxide ceramics such as silicon nitride and silicon carbide have higher high-temperature strength and wear resistance, but their sintering needs to be carried out under inert atmosphere or specific reaction atmosphere. The laboratory rotary tube furnace can precisely control the flow rate and pressure of nitrogen, argon, and other atmospheres, providing a stable environment for the sintering of non-oxide ceramics. For example, in the laboratory preparation of silicon nitride ceramics, silicon powder is mixed with a nitriding agent and sintered at 1400-1600℃ under nitrogen atmosphere. The rotation of the furnace tube ensures the uniform progress of the reaction, and finally a dense silicon nitride ceramic sintered body is formed.

4.3 Functional Ceramics and Ceramic Matrix Composites
In the research of functional ceramics such as piezoelectric ceramics and thermosensitive ceramics, the rotary tube furnace can realize precise temperature control and atmosphere regulation, ensuring the performance consistency of ceramic materials. For example, the sintering of PZT piezoelectric ceramics needs to strictly control the heating rate and holding time. Through the multi-stage program heating function of the rotary tube furnace, stress cracks inside the ceramics can be avoided, and their piezoelectric constant and dielectric properties can be improved. In addition, in the sintering of ceramic matrix composites (such as Al₂O₃-SiC), the rotary tube furnace can promote the uniform dispersion of the reinforcement phase, improving the mechanical properties and high-temperature resistance of the composites.

5. Application Advantages and Practical Value
Improve Experimental Efficiency: Compared with traditional static sintering equipment, the rotary tube furnace has stronger material mixing and heating uniformity, which can shorten the sintering time by 30%-50%, reduce the experimental waste rate, and lower the research cost.
Ensure Experimental Repeatability: The precise temperature field control, atmosphere control, and process parameter storage function ensure the consistency of conditions in different batches of experiments, with high repeatability of experimental results, providing guarantee for the reliability of scientific research data.
Expand Research Scope: It supports the combined regulation of multiple atmospheres, temperatures, and rotation speeds, which can adapt to the diverse research needs of powder metallurgy and ceramic materials, covering from basic material performance research to new material development.
Close to Industrial Production: The working principle of the laboratory rotary tube furnace is highly consistent with that of industrial rotary kilns and tunnel kilns. Its process parameters can directly provide references for industrial production, shortening the transformation cycle from laboratory research and development to industrial application.

6. Conclusion
With its core advantages such as good uniformity, precise temperature control, and flexible operation, the laboratory rotary tube furnace plays an irreplaceable role in the fields of powder metallurgy and ceramic sintering. Whether it is the densification of metal powders, the homogenization of alloy materials, or the high-temperature sintering of oxide ceramics and non-oxide ceramics, this equipment can provide researchers with a stable and reliable experimental platform. With the continuous development of materials science, the laboratory rotary tube furnace will play a greater role in the research and development of new functional materials and high-performance composite materials, providing strong support for promoting technological progress in related fields.
