Application Status and Technical Points of Atmosphere Furnaces in the Electronics Industry

Atmosphere furnaces, with their precise atmosphere control and temperature regulation capabilities, have become key equipment in the electronics industry to ensure component performance and reliability. They are widely used in core links such as semiconductors, electronic components, and new materials preparation.

1. Core application scenarios and process requirements

• Semiconductor materials and device manufacturing

In semiconductor chip production, atmosphere furnaces are used for processes such as diffusion, oxidation, and annealing of silicon wafers. By introducing protective gases such as nitrogen and hydrogen, they prevent oxidation and impurity contamination on the silicon wafer surface, ensuring stable PN junction characteristics. For example, in CMOS processes, high-temperature annealing in a nitrogen atmosphere can eliminate wafer processing stress and improve device electrical performance.

• Electronic component sintering and packaging

For components like ceramic capacitors and inductors, atmosphere furnaces provide a controlled atmosphere for precision sintering. For example, multilayer ceramic capacitors (MLCCs) require sintering in a reducing atmosphere (such as a mixture of hydrogen and nitrogen) to prevent oxidation of the electrode material and maintain component dielectric properties. Furthermore, during sensor packaging, atmosphere furnaces are used for preheating and activation prior to wire bonding to enhance weld strength.

• Research and development of new electronic materials

In fields such as nanoelectronic materials and flexible electronic devices, atmosphere furnaces are used to prepare thin film or composite materials. By adjusting the atmosphere composition (such as oxygen partial pressure and inert gas flow), the crystal structure and electrical properties of the material can be precisely controlled. For example, epitaxial growth of gallium oxide semiconductor thin films requires strict oxygen partial pressure control.

2. Key technical advantages and equipment requirements

• Ability to precisely control atmosphere

The electronics industry has extremely high requirements for atmosphere purity. For example, in semiconductor processing, water vapor content must be controlled below 1 ppm, and oxygen content must be below 5 ppm. Atmosphere furnaces utilize a multi-stage gas purification system (such as deoxidation and dehydration devices) and closed-loop flow control to achieve ppm-level atmosphere accuracy, meeting the high reliability requirements of components.

• Temperature uniformity and stability

Electronic components (such as chip wafers) have stringent temperature uniformity requirements, typically within ±1°C. Our atmosphere furnace utilizes zoned heating and hot air circulation, coupled with a high-precision temperature control system (such as PID + PLC control) to ensure a uniform temperature field within the furnace, preventing performance variations in components caused by local temperature differences.

• Clean and anti-pollution design

The interior of the furnace is coated with stainless steel or ceramic to reduce volatile contamination, and the heating elements are made of high-purity molybdenum or silicon carbon rods to prevent contamination from metal ion migration. For example, in the LED chip epitaxial growth process, the atmosphere in the furnace must be replaced with inert gas and then baked at high temperatures to remove residual impurities.

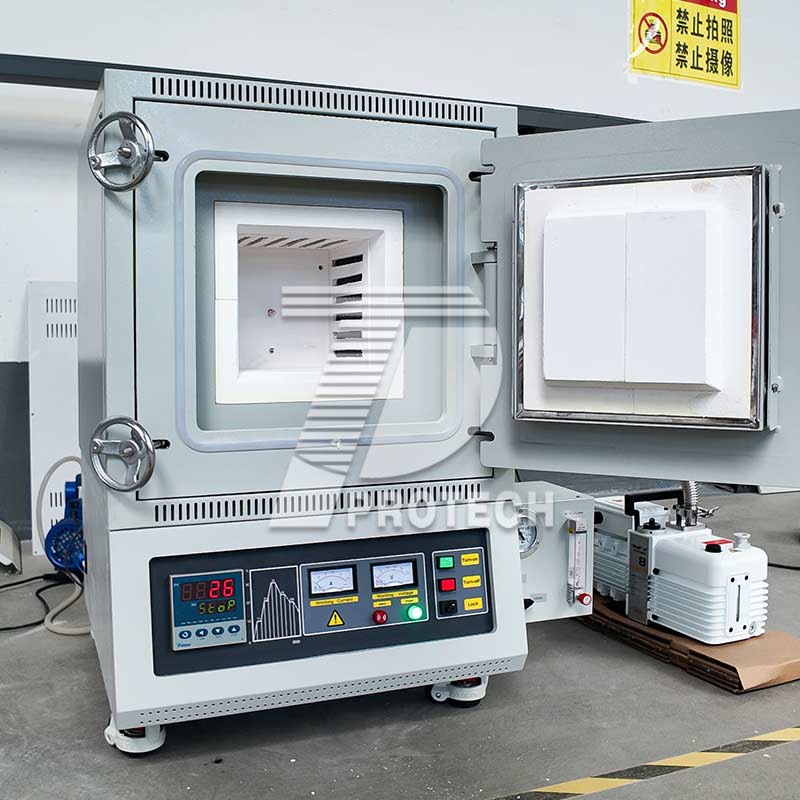

Atmosphere Furnace

3. Industry Development Trends and Challenges

• Intelligent and automated integration

As electronics manufacturing becomes more intelligent, atmosphere furnaces are integrating IoT technology to enable remote monitoring, automatic optimization of process parameters, and fault warnings. For example, AI algorithms analyze historical data to dynamically adjust heating rates and atmosphere ratios, improving batch consistency.

• Energy saving, environmental protection and miniaturization requirements

In response to the trend toward miniaturization of consumer electronics, atmosphere furnaces are evolving toward compact designs. They also employ low-heat-capacity insulation materials (such as ceramic fiber) and waste heat recovery systems to reduce energy consumption. A new atmosphere furnace developed by an electronic component manufacturer uses an optimized structure, resulting in a 25% reduction in energy consumption compared to traditional equipment.

4. Typical application cases

Application Scenario	Process requirements	Atmosphere and temperature control	Core role
Wafer annealing	Eliminate processing stress and improve carrier mobility	N₂ protective atmosphere, 1000-100℃, ±1℃ uniformity	Improve chip yield and electrical performance stability
MLCC sintering	Avoid electrode oxidation and control ceramic density	H₂/N₂ mixed reducing atmosphere, 850-950℃	Ensure capacitor capacity accuracy and reliability
Sensor package preheating	Activate pads to improve bonding strength	Dry air atmosphere, 150-00℃	Reduce packaging defects and extend sensor service life

Through the combination of the above technologies and processes, the atmosphere furnace provides the electronics industry with full-process temperature and atmosphere solutions from material preparation to device packaging, supporting technological breakthroughs and industrial upgrades in the fields of microelectronics, optoelectronics, etc.
