Analysis of the structural characteristics, performance advantages and application fields of the rot

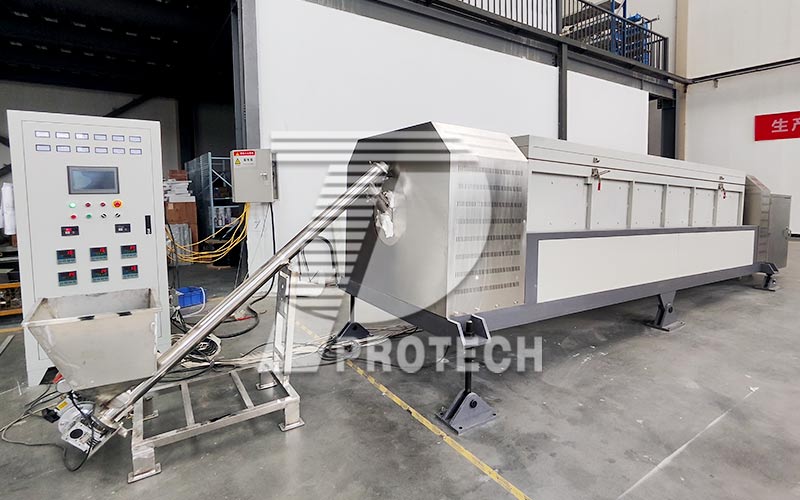

The rotary tube furnace is an efficient heat treatment equipment that integrates rotary heating and automatic feeding functions. It realizes continuous material processing through tilting furnace tubes and spiral feeding structures. It is widely used in ceramics, metallurgy, new energy and other fields. The following is an explanation from three aspects: core structure, technical characteristics and typical applications.

1. Core structure and working principle

a. Main body design

Furnace structure: adopts a double-layer insulation design with carbon steel shell and alumina fiber lining, and cooperates with cooling fans to reduce the surface temperature. The furnace tube diameter can reach 800mm and the length can reach up to 8 meters. It supports electric or hydraulic adjustment of the tilt angle (0-10°) to control the discharge speed.

Transmission system: The furnace tube is driven to rotate by a motor, a reducer, and a frequency converter (the speed is adjustable). The spiral feeding mechanism accurately controls the material entry rate through the speed regulation system to achieve continuous production.

b. Heating and temperature control

With resistance wire as heating element, 30-stage program temperature control system is adopted, the temperature range covers 800-1000℃, the furnace temperature uniformity reaches ±1℃, the heating rate is fast and the insulation effect is significant, and the energy saving rate is 60%-80% higher than that of traditional equipment.

2. Technical advantages and functional characteristics

Efficient and uniform heating: The furnace tube rotates to make the material fully tumble to avoid local overheating, which is especially suitable for the sintering and calcining of powdered or granular materials (such as metal powder and ceramic particles).

Automation and continuity: The automatic feeding and discharging system is combined with the three-barrel design to reduce manual intervention and labor intensity, which is suitable for batch production scenarios.

Multi-atmosphere adaptation: Supports air, inert gas (such as nitrogen, argon) and reducing atmosphere (such as hydrogen) to meet different process requirements such as oxidation, reduction, and inert protection.

3. Typical application areas

Ceramic industry

The firing process of products such as tiles and sanitary ceramics, high temperature uniformity ensures product density and mechanical properties.

Metallurgy and New Energy

Metal powder sintering (such as positive and negative electrode materials for lithium batteries), preparation of silicon-based materials for solar cells, and heat treatment of fuel cell catalysts.

Chemical Industry and Environmental Protection

Sintering and regeneration of petrochemical catalysts, smelting treatment in scrap metal recycling, and promotion of resource recycling.

Scientific Research Experiments

Research on new material synthesis and heat treatment performance in the field of materials science, supporting customized furnace types such as single temperature zone and double temperature zone.

4. Selection and Use Precautions

Parameter Matching: Select the furnace tube material (quartz, corundum or metal) according to the material properties (particle size, heat resistance), and optimize the processing efficiency through the tilt angle (3-5° commonly used) and speed (1-10r/min).

Safety Specifications: When operating at high temperature, it is necessary to cooperate with the air cooling system to cool down, and a gas leak detection device must be installed when handling flammable and explosive atmospheres.

The rotary tube furnace has become a key equipment connecting laboratory research and industrial mass production with its characteristics of "continuity, high precision, and low energy consumption". In the future, with the development of new energy and advanced materials industries, its application scenarios will be further expanded.
