Innovative development and application expansion of vacuum aluminum brazing technology

As an advanced technology for achieving precision connection of aluminum and aluminum alloys in a vacuum environment, vacuum aluminum brazing has been widely used in aerospace, electronics, automobile and other fields due to its advantages of no oxidation, no flux pollution and high joint quality. With the upgrading of industrial demand, this technology continues to make breakthroughs in material adaptation, process optimization and equipment intelligence. The following is an analysis from three aspects: technological progress, application scenario expansion and future trends.

1. Core technology progress and process optimization direction

a. Study on the matching of solder and base material

In view of the characteristics of aluminum alloys (such as 6 series and 5 series), the development of new low-melting-point brazing filler metals (such as Al-Si-Cu series and Al-Zn series) has effectively improved the joint strength and corrosion resistance. For example, brazing filler metals containing germanium (Ge) can reduce the brazing temperature to 560-580°C, reduce the impact on the mechanical properties of the base material, and are particularly suitable for welding thin-walled components.

b. Intelligent temperature control and vacuum degree control

Gradient heating technology : Through segmented heating (such as preheating section 200-300℃, insulation section 450-500℃, brazing section 580-600℃), the problem of uneven temperature caused by the fast thermal conductivity of aluminum alloy is solved.
Dynamic vacuum control : Maintain a high vacuum degree of 1×10⁻³~5×10⁻⁴Pa during the brazing stage to prevent oxidation of the brazing material; fill with inert gas (such as high-purity nitrogen) during the cooling stage to accelerate cooling and reduce thermal stress deformation.

c. Breakthrough in welding technology for large and complex components

By adopting zoned pressurized tooling and flexible positioning technology, the integral brazing of aluminum heat sinks, microwave waveguides and other components with a length-to-width ratio exceeding 10:1 can be achieved, and the deformation is controlled within 0.1mm/m, meeting the needs of high-precision electronic equipment.

2. Diversified expansion of application areas

a. Key components of new energy vehicles

Battery water cooling plate : Vacuum brazing achieves leak-free connection of multi-layer aluminum alloy channels, and the heat dissipation efficiency is increased by 30% compared with traditional welding. It has been mass-produced in Tesla, BYD and other models.
Motor controller housing : Integrated cooling channels through vacuum brazing, 25% lighter, and vibration resistance improved to 1000 hours (10-2000Hz).

b. Aerospace lightweight structure

Satellite antenna reflector : 5A06 aluminum alloy honeycomb structure vacuum brazing, surface density as low as 2.5kg/m², flatness error <0.1mm.
Aircraft engine fuel nozzle : The complex inner cavity structure is formed in one step, and the welding qualification rate is increased from 75% of the traditional process to 98%.

c. Electronic cooling and 5G communication

5G base station heat sink : vacuum brazing of aluminum profiles and copper inserts to achieve efficient heat dissipation with a heat flux density of 300W/cm², meeting the needs of millimeter wave antenna modules.
LED car light module : The brazing temperature of the multi-chip integrated substrate is controlled at 590±5℃ to ensure the thermal stability of the phosphor coating.

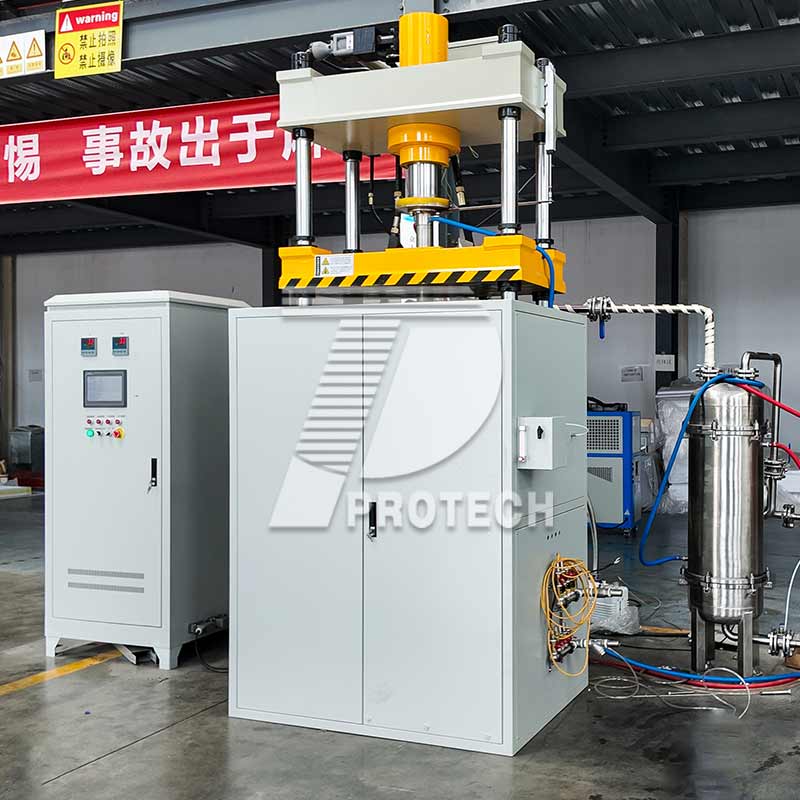

vacuum furnace

3. Future Development Trends and Challenges

a. Green technology and cost control

Low-temperature brazing technology : Research and develop nano-composite brazing materials (such as Al-Si@TiO₂), with the goal of reducing the brazing temperature to below 500°C and reducing energy consumption by 20%.
Large-scale equipment and batch production : Develop a multi-station continuous vacuum brazing furnace, increase the production capacity of a single furnace to 500 pieces/batch, and reduce unit energy consumption by 15%.

b.Digitalization and quality traceability

By introducing the industrial Internet platform, 128 process parameters such as vacuum degree, temperature field, and pressure are collected in real time, and the AI algorithm is used to predict welding defects, reducing the defective rate to below 0.5%.

c. Research on adaptability to extreme environments

Develop fatigue-resistant brazing joints for scenarios such as deep sea (3000m water pressure) and deep space (-196℃~120℃), with the target life increased to 10⁵ cycles.

4. Comparison of Typical Process Cases

Application Scenario	Traditional welding process	Advantages of vacuum aluminum brazing
Car Radiator	Salt bath brazing (chloride salt contamination)	No welding slag, no need to clean, environmental protection cost reduced by 40%
Radar waveguide	Argon arc welding (large deformation)	One-step molding, no need for subsequent machining, shortening working hours by 60%
Power battery housing	Friction stir welding (with spatter)	No splash, no air hole, leakage rate <1×10⁻⁹Pa·m³/s

Through the above-mentioned technological innovation and application expansion, vacuum aluminum brazing is gradually becoming one of the core processes in the field of high-end manufacturing. In the future, it is necessary to focus on breaking through bottlenecks such as welding of dissimilar materials (such as aluminum-magnesium alloy, aluminum-titanium alloy) and deformation control of ultra-large components, and promote its large-scale application in more industrial scenarios.
