How to put materials into the vertical tube furnace?

How to strictly follow the equipment structure and process safety to achieve material loading of vertical tube furnace to ensure operation efficiency and experimental/production quality? Next, let's take a look at the furnace loading process, core precautions, and typical cases!CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

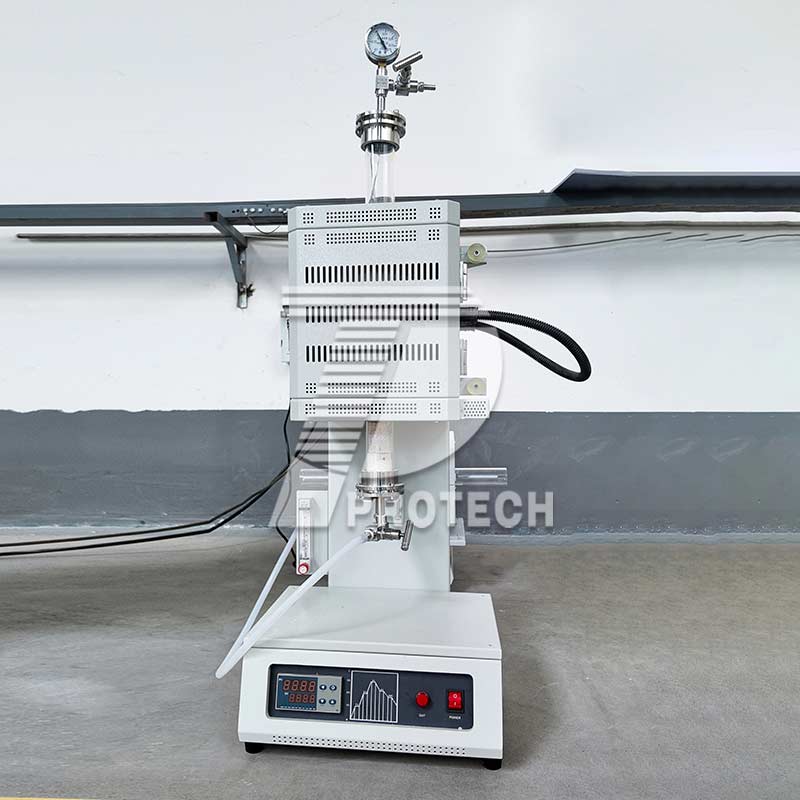

Vertical Tube Furnace Click the picture to view detailed parametersCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Vertical Tube Furnace
1. Standardized process for loading vertical tube furnaceCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
a. Equipment pre-inspection and safety confirmationCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
① Check the integrity of the furnace tube: confirm that there are no cracks in the furnace tube and no residue on the inner wall (such as oxides or carbides from the previous experiment). It is recommended to use an endoscope to detect the deep hole area.CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
② Verify the sealing: fill argon gas to 0.1MPa and maintain the pressure for 10 minutes, observe whether the pressure gauge fluctuation is ≤0.005MPa to avoid danger caused by gas leakage at high temperature.CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
③ Calibrate the temperature control system: Use a standard thermocouple (such as K type) to check the temperature uniformity at multiple points in the middle and both ends of the furnace tube. The error must be ≤±2℃ (high-precision experiments require ≤±1℃).CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
b. Material loading strategyCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
① Rigid support system:CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Use high-purity alumina or silicon carbide boat (purity ≥99.9%), the boat length should be ≤ the effective heating zone length of the furnace tube (usually 70%-80% of the total length of the furnace tube).CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
② Loading density control: Powder samples need to be flattened to a thickness of ≤5mm, and the spacing between block materials should be ≥10mm (such as when sintering lithium-ion battery positive electrode materials to prevent particle agglomeration).CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
③ Flexible suspension solution:CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Fiber cloth/net bag (such as alumina fiber, temperature resistance 1600℃) is suitable for fragile or special-shaped parts, fixed by the top ring of the furnace tube to avoid contact with the inner wall of the furnace tube.CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The suspension spacing needs to be ≥30mm (such as carbon nanotube growth experiment, to prevent air flow disturbance from causing material to fall off).CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
c. Atmosphere pipeline pretreatmentCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
① Inert gas replacement: introduce argon/nitrogen at a flow rate of ≥500ml/min for more than 30 minutes to ensure that the oxygen content is ≤1ppm (using an oxygen probe for real-time monitoring).CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
② Premixing of reaction gases: If hydrogen/ammonia is needed, first mix it with inert gas at 10% volume fraction, and then adjust it through a gas mixer (accuracy ±0.5%FS) before introducing it.
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Key operational risks and solutionsCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
① Furnace tube ruptureCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Cause analysis: Rapid cooling and heating lead to thermal stress concentrationCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Solution: Heating/cooling rate ≤5℃/min, high temperature section (>1000℃) insulation time extended by 20%CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
② Sample contaminationCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Cause analysis: volatilization of furnace tube residue or impure atmosphereCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Solution: After each experiment, burn the furnace tube at high temperature (1200℃) for 1 hour, and add 5 minutes of purge time when the atmosphere is switchedCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
③ Temperature uniformity is too poorCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Cause analysis: The axial temperature difference of the furnace tube is too largeCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Solution: Use three-zone independent temperature control technology, or use graphite felt to wrap the middle section of the furnace tube (reduce radial heat loss)CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
④ Seal failureCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Cause analysis: Insufficient preload of flange bolts or aging of sealing ringsCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Solution: Use a torque wrench to tighten diagonally 3 times (recommended torque: M16 bolts are 80-100N·m), and replace the sealing ring regularlyCpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
CpnMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
