Tube furnace for preparing activated carbon

Activated carbon is a porous material with a large specific surface area and adsorption performance, which is widely used in various applications, such as water treatment, air purification, chemical treatment, etc. Activated carbon preparation tube furnace is an equipment used for preparing activated carbon, which combines the high-temperature heating characteristics of tube furnace and the special process requirements of activated carbon preparation. The tube furnace provides a closed and controllable environment, allowing for the control of parameters such as temperature, atmosphere, and time during the preparation of activated carbon, thereby ensuring the quality and performance of activated carbon.

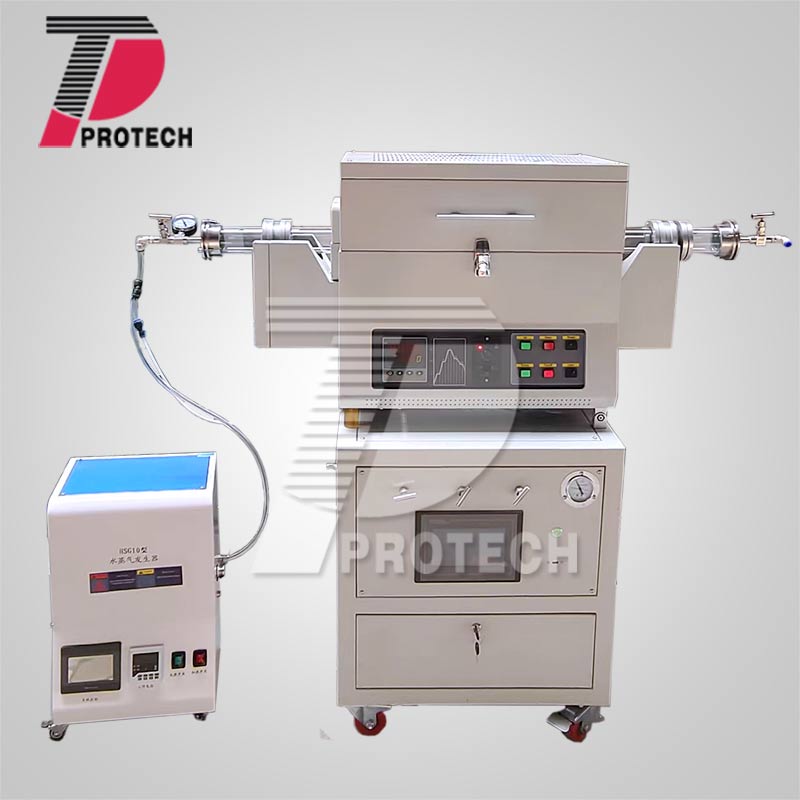

Tube furnace with steam generator (click on image to view product details)

① Carbonization process: In the preparation of activated carbon, carbonization is a key step. In a tubular furnace, raw organic materials (usually wood, coal, coconut shells, fruit shells, etc.) are exposed to high temperatures for pyrolysis in an anaerobic environment. At the same time, the tube furnace can also be activated by introducing specific gases (such as water vapor, carbon dioxide, etc.) according to the needs of the activated carbon preparation process. These gases react with the carbonized raw materials to form activated carbon with a rich pore structure. By precisely controlling the activation process, activated carbon with specific pore size distribution, specific surface area, and adsorption performance can be prepared. This process converts organic materials into carbon and generates a microporous structure, thereby forming the characteristic properties of activated carbon. The tube furnace supports this carbonization process by providing the required high temperature and heat.

② Advantages and disadvantages of activated carbon preparation: The advantages of a tubular furnace for activated carbon preparation include high temperature control accuracy, uniform heat distribution, and high production efficiency. However, it also has some drawbacks, such as complex equipment and high requirements for loading particle size of raw materials. Therefore, when selecting and using activated carbon to prepare tube furnaces, it is necessary to comprehensively consider specific process requirements and raw material characteristics.

③ Furnace design: The design of a tubular furnace for preparing activated carbon usually takes into account the need to provide uniform heating to ensure the consistency and stability of raw materials during the carbonization process. The interior of a tubular furnace usually adopts reaction zone, heating zone, and cooling zone to control the various stages of the carbonization process.

④ Temperature control and atmosphere control: Tubular furnaces are usually equipped with a temperature control system to ensure that a constant temperature is maintained during the carbonization process. In addition, the tube furnace may also have an atmosphere control system that can control the atmosphere inside the furnace, such as controlling the oxygen concentration to optimize the carbonization reaction.

⑤ Efficient energy utilization: Due to the high temperature conditions required for the preparation of activated carbon, tube furnaces are usually designed to efficiently utilize energy, such as using gas, steam, or electricity as heating media.

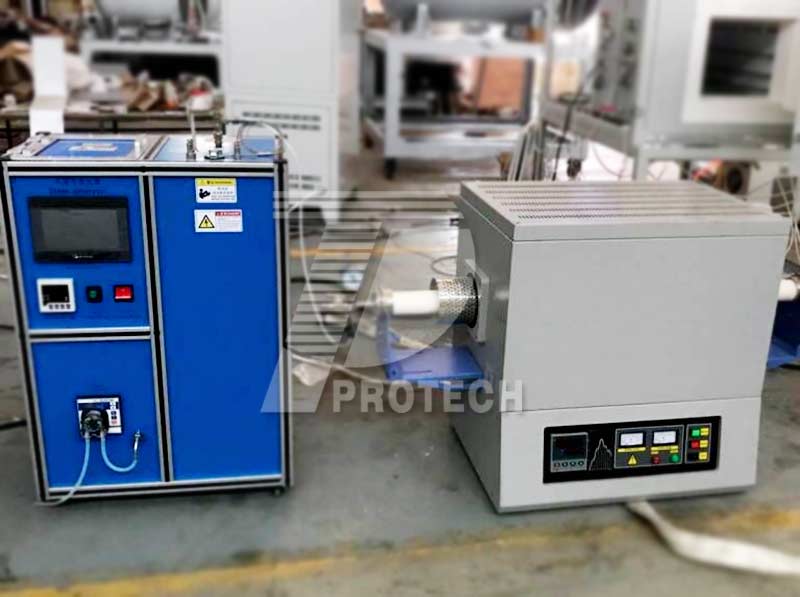

1200℃ Tube furnace with steam generator(click on image to view product details)

⑥ Automation and monitoring system: Modern activated carbon preparation tube furnaces are usually equipped with automation control and real-time monitoring systems to ensure the stability and safety of the production process and improve production efficiency.

Activated carbon preparation tube furnace is an efficient and controllable equipment for preparing activated carbon, widely used in chemical, environmental protection, energy and other fields. The tubular furnace for preparing activated carbon plays a crucial role in the production process, supporting the carbonization process of raw materials by providing a high-temperature environment and necessary heat energy, thereby producing high-quality activated carbon products. With the continuous progress of technology and the expansion of application fields, the performance and process of activated carbon preparation tube furnace will also be continuously optimized and improved.Click to learn more tube furnace! Or click on online customer service to learn more about product information!
