1.7Mhz Ultrasonic Spray Pyrolysis Furnace 1200C Max. for Synthesis Nanoparticles
model:PT-T1200-III

1.7Mhz Ultrasonic Spray Pyrolysis Furnace 1200C Max. for Synthesis Nanoparticles

    Application:  Widely used in experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Introduction:ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1.The ultrasonic spray furnace system should be designed for versatility for the synthesis of nano core shell structures.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.The system should consist of four main modules: aerosol generator, 3-zone heating furnace, electrostatic precipitation (precipitation) and four-channel mass flow controller.
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

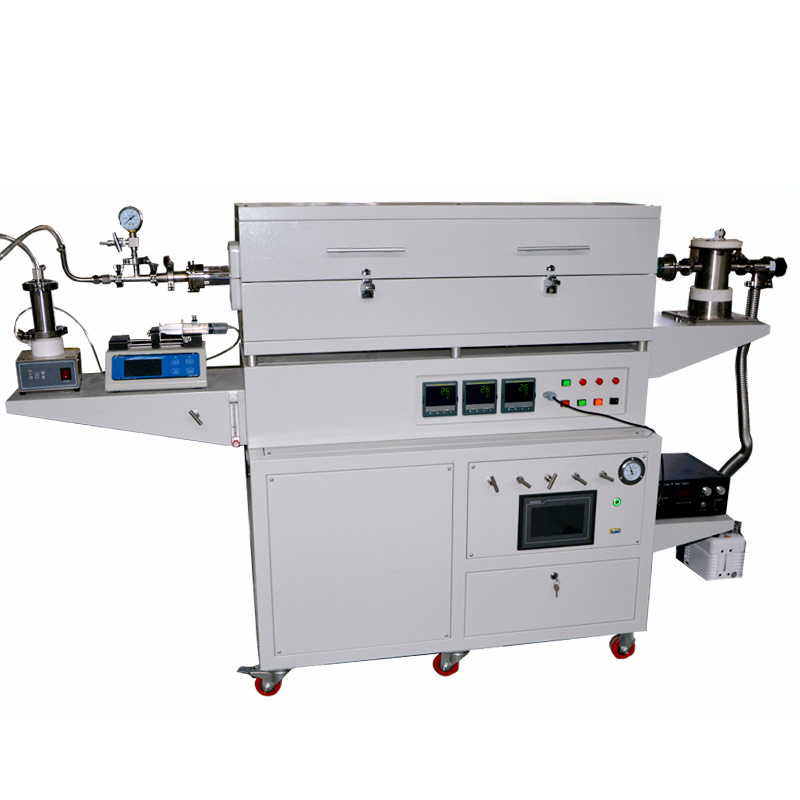

Real picture of 1.7 Mhz ultrasonic spray pyrolysis furnaceThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Real picture of 1.7 Mhz ultrasonic spray pyrolysis furnaceThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Technical Parameter:ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Part I Aerosol generatorThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Atomization device:ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Equipped with a 1.7MHz ultrasonic atomizer, the liquid can be atomized into liquid particles and introduced into a tube furnace.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

20VAC, 1.7MHz ultrasonic atomizerThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• The liquid tank comes standard with 316 stainless steel,and sealed with a fluorine rubber seal;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• Atomization amount can be set from 1 to 8, and the amount of atomization can be controlled by adjusting the size of the gear;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• It can realize two functions of continuous operation atomization and regular operation atomization. The timing can be adjusted from 30 minutes to 180 minutes (adjust the gear every 30 minutes).ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Liquid injection systemThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• A standard set of liquid injection pumps for automatic liquid feedingThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• The syringe pump is equipped with a plastic syringe with a maximum volume of 60ml for holding liquids;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• Syringe pump speed adjustment range:ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

0.004ml / min—70ml / minThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Part II 3-Zone Heating FurnaceThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

StructureThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Heating section (tube furnace): The maximum temperature of the tube furnace can reach 1200 ° C.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Working voltage & powerThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Single Phase 220V 50HzThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Max. Power 7KWThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Working temperatureThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Max. Temp. 1200C <= 1hrThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Contiously working temp. <= 1100CThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Recommended heating rateThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

≤10℃/min, max. 20℃/minThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Heating ElementsThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Fe-Cr-Al Alloy doped by MoThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Hot Zone ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

300+300+300mmThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

If all three regions of the furnace are set to the same temperature, the constant temperature zone should be 600 mm with a temperature flexibility of ± 2 ° C.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Temperature control systemThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

-Three digital temperature controller with 30 segments should be programmable for precise control of heating rate, cooling rate and dwell time. ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

-The built-in overtemperature alarm and protection must allow operation at a temperature sensitivity of +/- 1 ºC.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

-It must have RS485 Communication Port.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Furnace TubeThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Using high-purity quartz tubeThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Quartz tube size: Φ25 * 1400mmThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Sealing FlangeThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The left end is equipped with a KF series quick connection flange, which is connected to the atomization device, and a mechanical vacuum pressure gauge is connected through the tee.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The right end is equipped with a KF series quick-connect flange, which is connected to the electrostatic collectorThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Tilt functionThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

The furnace must be tiltable to prevent fluid backflow.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Part III Electrostatic precipitation (precipitation)ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

High voltage power supplyThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

•Input: 208 ~ 240VAC single phase, maximum power 30WThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• Digital display voltage and current value, the maximum output voltage is 30KV, the maximum output current is 1 mA;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• With arc protection circuit.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Nano powder collectorThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• The inlet of the collecting cylinder is a KF25 quick connector, and the air outlet is a quick connector with an outer diameter of Φ12.7mm;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• A KF25 quick connector is reserved for the collection cylinder to evacuate the collection cylinder;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• The positive pole and the negative pole are connected through a PTFE plate to achieve insulation;ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

• The maximum volume of the collection cylinder is 700ml and the effective volume is 150ml.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Part IV  4 Channels MFC Controller (Optional)ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

 ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1. The equipment must have 4 channels and control the gases that will enter the furnace.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

2. The equipment must have one LCD touch screen and must control 4 independent channels.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

3. The equipment must be suitable for operation in the temperature range of 5-45 oC.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

4. Equipment should be able to reach a maximum pressure of 3x106 Pa.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

5. The flow accuracy of the equipment should be ± 1.5% F.S for the full flow range.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

6.The doubling accuracy of the equipment should be ± 0.2% F.S.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

7. In the 4-channel system, three controllers should be able to control the gas flow at the limits of 0-200 sccm and one at 0-400 sscm.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

8. One gas mixing tank should be placed under the system with liquid drain valve.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

9. The system must include 4 stainless steel needle valves to control the flow of four different gases.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

10. One of the four channels in the system is suitable for hydrogen, one for dry air, one for nitrogen and one for argon gases.ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Real picture of 1.7 Mhz ultrasonic spray pyrolysis furnaceThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Real picture of 1.7 Mhz ultrasonic spray pyrolysis furnace
ThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Real picture of 1.7 Mhz ultrasonic spray pyrolysis furnaceThEMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
