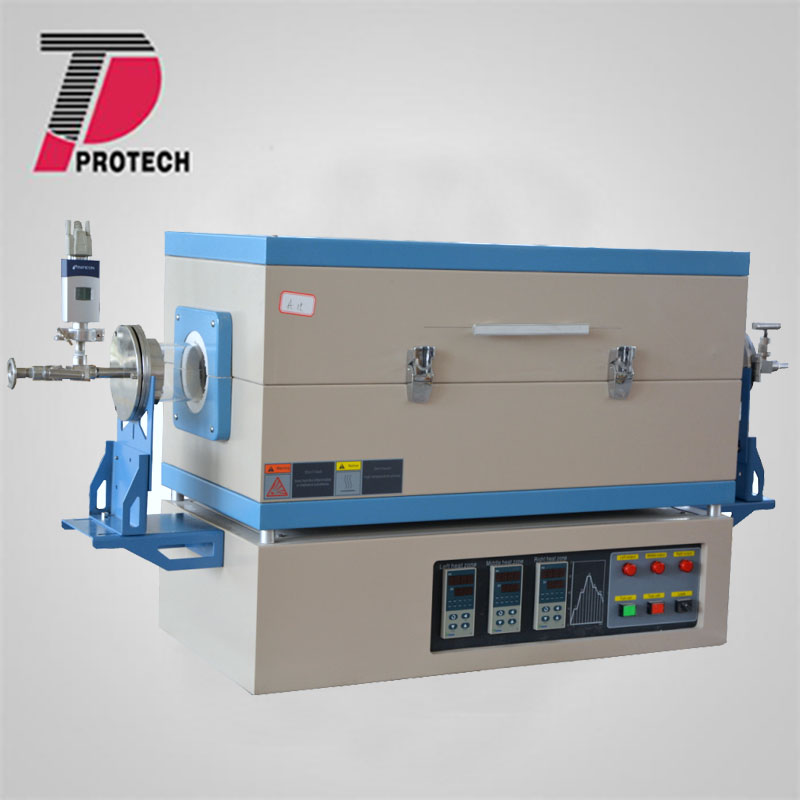

Three Heat Zone Tube Furnace

Three Heat Zone Tube Furnace

    Application:  Widely used in experiments and small batch production in universities, scientific research institutes, industrial and mining enterprises, etc.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Three zones tube furnaces:
Max Temp.  1200°C
Three zones 220mm+220mm+220mm (or According to your requirement)
Tube Diameter OD 60mm
OD 80mm
OD 100mm
Power 6KW for OD 60mm
10KW for OD 80mm
10KW for OD 100mm

Display LED
Heating Rate Suggestion 0~10℃/min, max. 20℃/min
Temperature Control Accuracy ±1℃
Heating Element Fe-Cr-Al Alloy doped by Mo
Thermocouple K Type
Working Voltage AC 208V-240V single phase, 50 Hz (or according to your requirement)
Temperature Control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Warranty One year limited warranty (Consumable parts such as heating elements are not covered by the warranty)

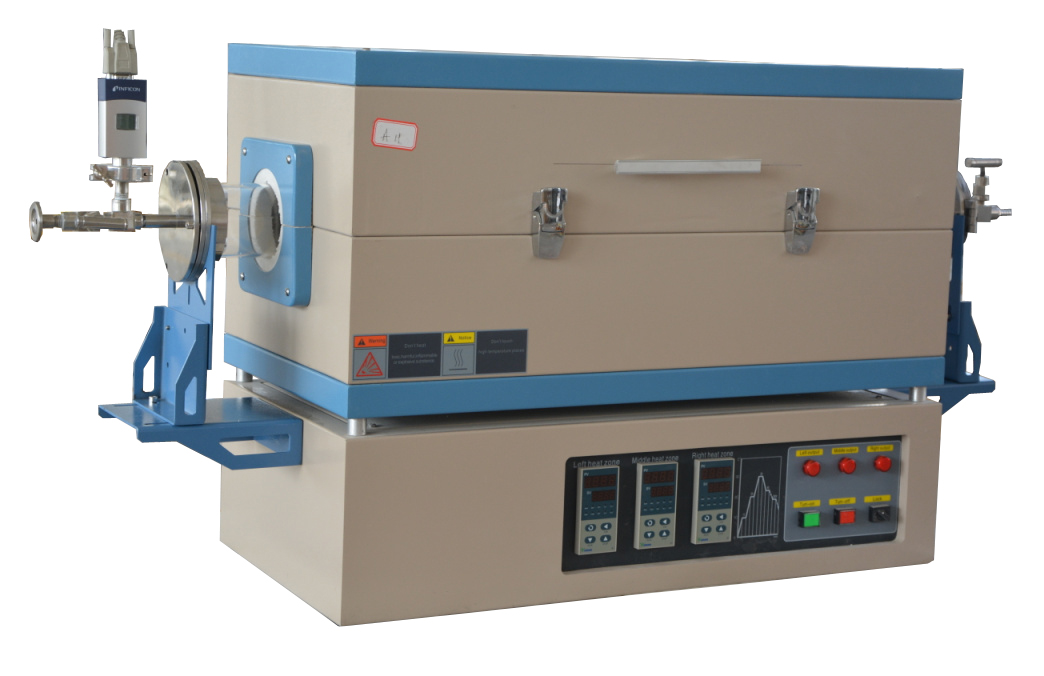

Three Heat Zone Tube Furnace
 Three heat zone Tube Furnace can be customized according to customers’requirements.
