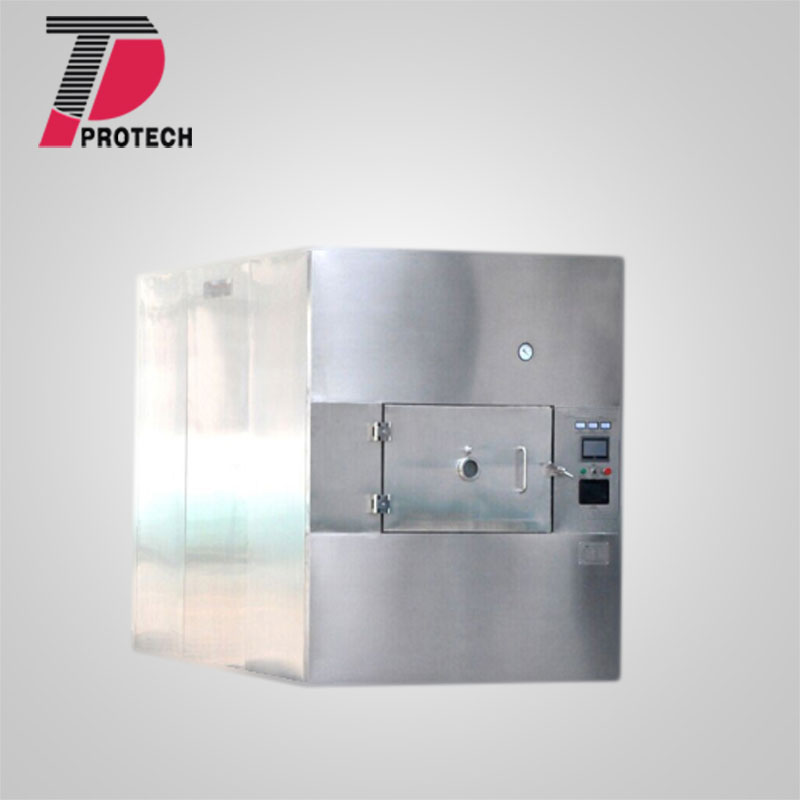

Description:ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
it is ideal for chemical powder, medicine, deep drying fruit, candied fruit, herb, vegetable, vegetable powder(e.g. chilli powder),subsidiary agricultural products, fresh flower, health care products, etc.ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Cloth and transmission ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Material transmission way:vertical rotation(wheel);hanging carrying trays.Product material:tray bearing,artificial fabric;limit,positioning set automatic non-contact photoelectric switch. The technological process is: raw material - shaft transmission - microwave vacuum drying process to equipment discharging mouth-the finished product.ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.temperature controlctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Equipment with infrared thermometer, used in the process of drying the real-time accurate temperature measurement, on the set temperature and the requirements of automatic adjust microwave field strength, in order to realize the process requirement.ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Vacuum systemctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Adopts water ring vacuum pump (SKA - 5111), up and down cylinder vacuum at the same time, the gas within the condenser, the check back to the vacuum pump, vacuum degree to 0.082 MPactkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. vacuum sealing technology ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Microwave generator part adopts boda special sealing technology, not only ensure the vacuum and does not affect microwave emission; Door adopt arch structure, double microwave inhibition and seal, not only increase the strength, better meet the needs of the safe and beautiful. The door is made of double chain protection device to ensure safety equipment use. (a total of 5 utility model patents sealing technology)ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Cooling wayctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Generator cooling systems used in circulating cooling water, the water temperature is less than or equal to 35 ℃, water is not less than 8 m3 / h, circulating water should be soft water, hardness is less than or equal to 8 (1 degree of hardness is equivalent to every litres of water containing 10 mg calcium oxide). Equipped with automatic protection program, can automatically stop when outside conditions change or the police. electrical components cooling electrical components adopt original singlectkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
transformer ark independent cooling ways, such as transformer and capacitor, silicon stack cooling element separately placed outside the device electrical cabinets, convenient for maintenance and cooling rapidly; Transformer use special oil cooling and air cooling combination of cooling, guarantee the run-time temperature less than 60 degrees. (cooling technology with a total of 3 utility model patents)ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6. Control systemctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The control mode Microwave power adopts continuous adjustable, microwave operation according to the current meter real time observation; On the control panel, add video device, operation visual material within the cavity; Using far infrared measuring temperature control, the accuracy + / -11 ℃; ressure display for the pressure gauge and pressure sensors to PLC two modes, and vacuum pump pressure adjustment can be realized according to rev. Stop;ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameter:ctkMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Model |
PTMD-PM-V-30 |
Microwave frequency |
2450Mhz+-50Mhz |
Voltage |
380V |
Power |
30KW |
Motor power |
0.5KW |
Material |
304 stainless steel |
Chamber size |
900*1200mm |
Tray size |
360*990*100mm |
Tray number |
10 pcs |
Speed |
1.6r/min |
Microwave limit |
<1mw/cm2 |
Cooling way |
Air cooling and oil cooling |
Vacuum degree |
0.082Mpa |
Dimension |
3000*2000*2500mm |
Weight |
6 tons |
