Home > Products > Dental Furnace > Dental Zirconia Sintering Furnace

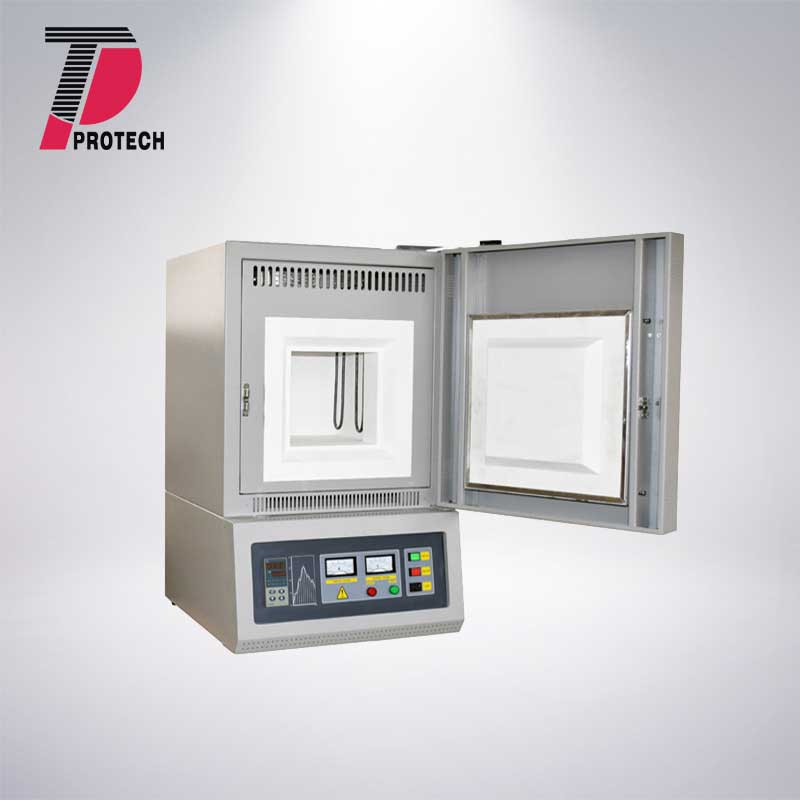

Cheap Zirconia Sintering Furnace
model:PT-1700M Sintering furnace

Cheap Zirconia Sintering Furnace

    Application:  Mainly used in the crystallization and sintering of zirconia dental crowns. At the same time, it can also achieve high temperature sintering and annealing treatment for materials in the field of powder metallurgy.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

1.Features of High temperature sintering muffle furnace:yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

(1). Operation Temperature: 1600℃ ( 1700℃ for short time). yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(3). Heavy duty double layer structure with cooling fan. Lower teperature in outside case. yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).             yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(5). Power control with 30 segments programmable.
yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Technical parameters of
High temperature sintering muffle furnace :yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Model PT-1700M Sintering furnace
Chamber model Side Door
Display LED
Limiting temperature 1700℃
Working temperature ≤1650℃
Heating rate Suggestion 0~20℃/min
Temperature accuracy ±1℃
Inside chamber size 200×200×300(mm)
Heating element  Molybdenum Disilicide (MoSi2)
Thermal couple B Type
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Rated power 4KW
Working voltage AC 110-480V 50-60HzyAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(or according to your requirement)
Warranty 12 month (exclusive wearing part)
 Sintering furnace can be customized according to customers’requirements.yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3.Related furnaces :
yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
yAxMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
