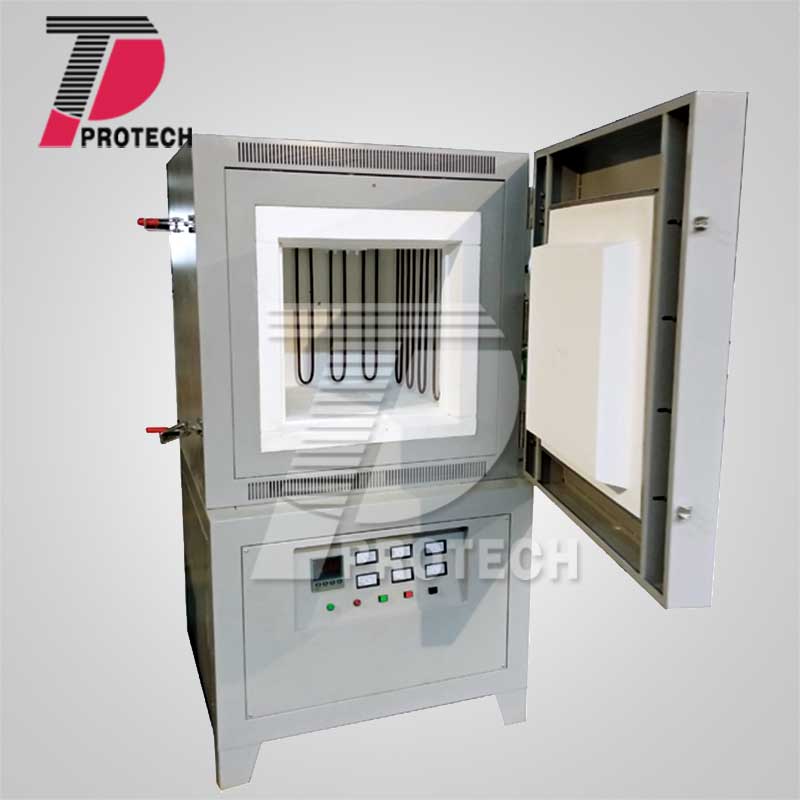

1700℃ High-temperature Box Muffle Furnace-36L
model:PT-M1700-36LZ

1700℃ High-temperature Box Muffle Furnace-36L

    Application:  PT-M1700-36LZ box furnace is CE-approved with MoSi2 heating rods as heating element, SCR, 518p intellectual temperature controller and B-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1700℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Specific Introduction:cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    PT-M1700-36LZ box furnace is CE-approved with MoSi2 heating rods as heating element, SCR, 518p intellectual temperature controller and B-type thermocouple to achieve high temperature and automatic control. The top temperature can reach 1700℃. Inside the heating chamber, the high-temperature alumina coating increases the energy efficiency and prolong the service life of the furnace.cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Parameters:
Model PT-M1700-36LZ
Working Chamber Size 300*300*400mm
Heating Chamber Material High-Purity Alumina Ceramic fiber
Working temperature Top temperature: 1700℃cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Working temperature: 1600℃
Temperature Control PID, Intellectual 30-segment Programmable Controller
Heating Rate 0-30℃/min(Suggestion: 0-10℃/min)
Control Accuracy ±1℃
Heating Element MoSi2 heating rods
Temperature Sensor B-type ThermocouplecWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(With Breakage and over-heating alarm)
Outside Shell Electrostatic sprayed Carbon Steel Outside Shell with Cooling Fans
Door Side-open
Power Supply 220V   50HZ/60HZcWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(Customizable)
Plug Please let us know the plug in your country when you book the furnace.
Max. Power 15kW
Accessories Door block, Crucible Tong, Gloves, Instruction manual
Certificate CE, ISO.
Option Crucible, Screen Control, Software
Notes 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10℃/min.cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2, This furnace is not air-tight.cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating.
 cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Warranty
One year warranty with life-time technical support.cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Special notes:cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1, Consumables like heating element, quartz, crucible and so on are uncovered.cWrMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2, Man-made damage and damage caused by misuse are uncovered.
