Precision Disc Cutter with Standard 15, 19, 20 & 24mm

Precision Disc Cutter with Standard 15, 19, 20 & 24mm

    Application:  Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, environmental protection and other departments. It is an ideal equipment for scientific research, experimental production and material research.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:cGOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

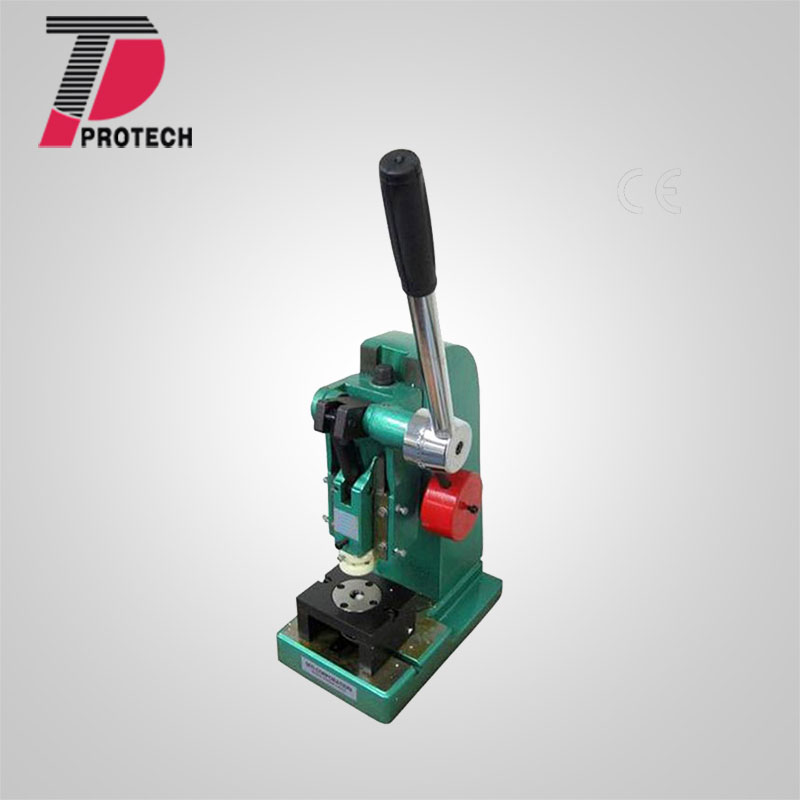

   MSK-T-06 (updated from EQ-T06-Disc,and color changed to blue) is a precision disc cutter with max. pressure of 600kN. This tool is manually operated and is designed for cutting round discs from thin metal sheet/foil < 0.3 mm (such as Cu and Al) or separator film (<30um). The resulting discs can be used as electrode/separator discs of split test cell and coin cell for battery researches.cGOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
cGOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:
cGOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Max. Nominal Pressure 600 kN
Max. Stroke 40 mm
Max. cutting thickness 200 microns
Hole Diam. for upper mold insert 12 mm
Cutting Dies Four sets of cutting dies  (15, 19, 20, and 24mm ) are included in standard package:cGOMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
  • 15mm (for electrode discs of CR20xx series coin cell cases
  • 19mm (for electrode discs of CR20xx series coin cell cases and CR2325 negative side cases)
  • 20mm (for electrode discs of CR2450 cell cases,CR2325 positive side cases, and separator discs of CR20xx series coin cell cases)
  • 24mm (for electrode and separator discs of CR24xx series)
  • Optional sizes available in 10, 12, 12.7 (1/2''), 16, 18mm diameter at extra cost.
Product Dimensions 230mm(L) x 190mm(W) x 450mm(H)
Compliance CE Certified
  • One year limited manufacture warranty with lifetime support
(*Rusted and damaged parts due to improper storage condition or maintenance are not covered by warranty)
Application Notes
  • If you are going to make CR2016, CR2025 or/and CR2032 coin cell batteries, you will need at least three cutting dies:
    • 15mm (for negative side case, which is 16.5mm in diameter)
    • 19mm (for positive side case, which is 20mm in diameter)
    • 20 mm (for separator to fully separate the electrodes in both negative and positive cases)
  • For CR2450 coin cell, a 20mm cutting die can be used for cutting electrode discs and the 24mm cutting die for either electrode or separator discs.
    • 24 mm (for electrode and separator discs in CR24+ series or depending on customer's requirement)
  • For cutting seperator films, it is necessary to use transparent file covers to sandwitch the film prior to cutting. This setup will stiffen up the film for ensuring smooth cuts on the edges of the disc.
