Bench-Top Double Side Lapping / Polishing Machine for Max. 2
model:EQ-Unipol-160D

Bench-Top Double Side Lapping / Polishing Machine for Max. 2

    Application:  Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, environmental protection and other departments. It is an ideal equipment for scientific research, experimental production and material research.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

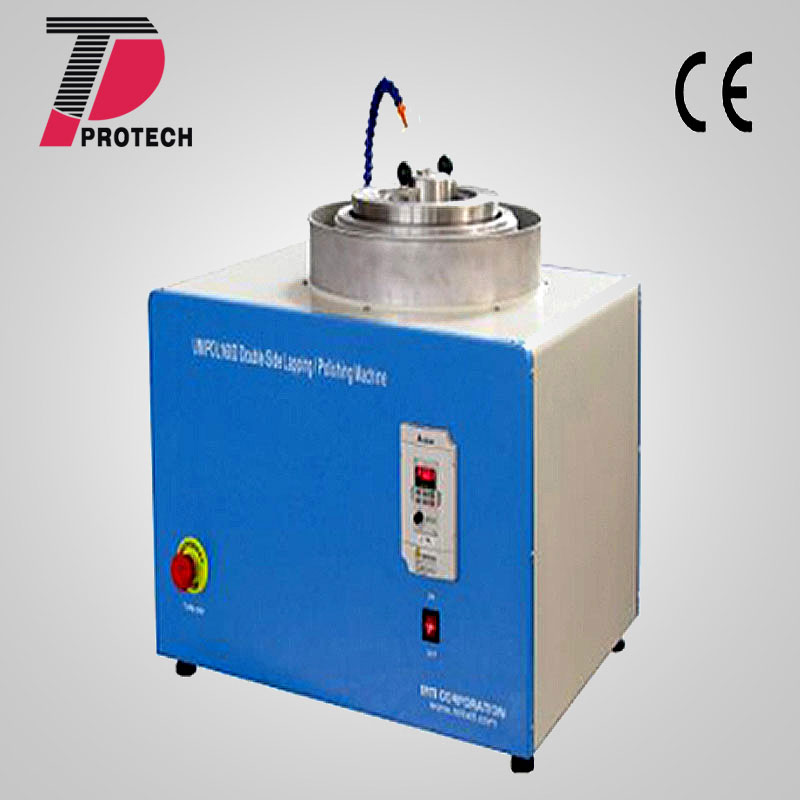

    EQ-UNIPOL-160D machine is a bench-top precision double side lapping and polishing machine. It can lap and polish 4 pieces of wafers up to 2" in both side at the same time, and achieves TTV less than one micron in 2" diameter area. It is an idea tool to prepare Si, Ge and oxide single crystal wafer with 2" diameter or less in the laboratory.ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:
ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Lapping Plate Dimensions 225 x  94 x 15mm (Outer dia. x Arbor dia. x Thickness)
Weight of Upper Lapping Plate and Balance 5.5kg (3kg for balance weight)
Gearing Template Specification z=54 m=1.5  dia.81mm (metric)
Number of Gearing Templates for Simultaneous Use 4
Largest Work Piece Size Dia. 60mm; thickness 15mm
Accuracy of Fatness and Parallelism 0.001mm
Accuracy of Lapping and Polishing +/-0.001mm
Surface Finish > grade 10
Input Power Single phase 220V
Motor DC/600W
Dimensions 615x375x494mm
Net Weight 80kg
Note Four pieces of gearing templates are required for double sides polishing. ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(MTI can provide the gearing template with various hole size at extra costORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 (~$30/template). ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
One template can hold sample as the follows:
ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
  • One 60 mm or 2" diameter wafer
  • 3 pcs or less 1" diameter wafer
  • 14 pcs or less 10x10mm substrate
 To get a quote for gearing template please let us know wafer size and ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 final thickness to be polished.
Compliance CE Certified
Warranty
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
 ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
STANDARD PACKAGE
ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Item No.  Description  Qty
 EQ-unipol-160D-01ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Polishing plate 2
 EQ-unipol-160D-02ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Lapping plate 2
 EQ-unipol-160D-03ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Polishing template gear  4
 EQ-unipol-160D-04ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Polymide polishing pad  2
 EQ-unipol-160D-05ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Poromeric polishing pad  2
 EQ-unipol-160D-06ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Axle key holders (pre-install in the upper polishing plate)  2
 EQ-unipol-160D-07ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Ring feeding channel (pre-install in the upper polishing plate)  1
 EQ-unipol-160D-08ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Ring weight  3
 EQ-unipol-160D-09ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Water pipes  2
 EQ-unipol-160D-10 10A Fuse  2
 EQ-unipol-160D-11ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Screw drivers  2
 EQ-unipol-160D-12ORNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Power cord  1
