model:PT-60F

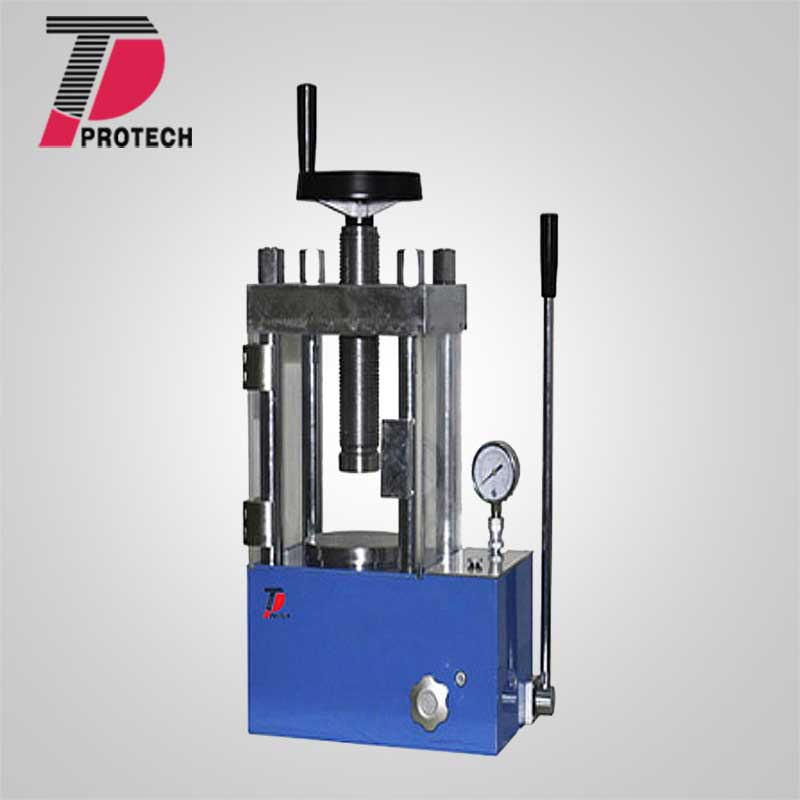

60T protected Manual Powder Press Machine
Application: Mainly used in industries such as catalysis, silicate, ceramics, batteries, superconductivity, biochemical analysis and sample preparation of new materials.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Application:
The product is a protected Manual pressing machine with pressure capability up to 60 metric tons for preparing compound or ceramic sample faster and easier.It is an excellent tool for material / ceramic / chemistry laboratories to make larger pellet samples
Technical parameters:
Model |
PT-60F |
Pressure Range |
0-60T (0-33Mpa) |
Integrative Structure |
Mainboard,Oil Pool,Oil Cylinder with no seal structure |
Diameter of piston |
Chrome plated cylinders φ150mm |
Digital Pressure Gauge |
Accuracy 0.1MPa |
Worktable Diameter |
160mm |
Working Space |
160×160×200mm |
Pressure Stability |
≤1MPa/10min |
Machine Dimensions |
420×300×630mm |
Protective Cover |
Organic Glass |
weight |
100kg
|
