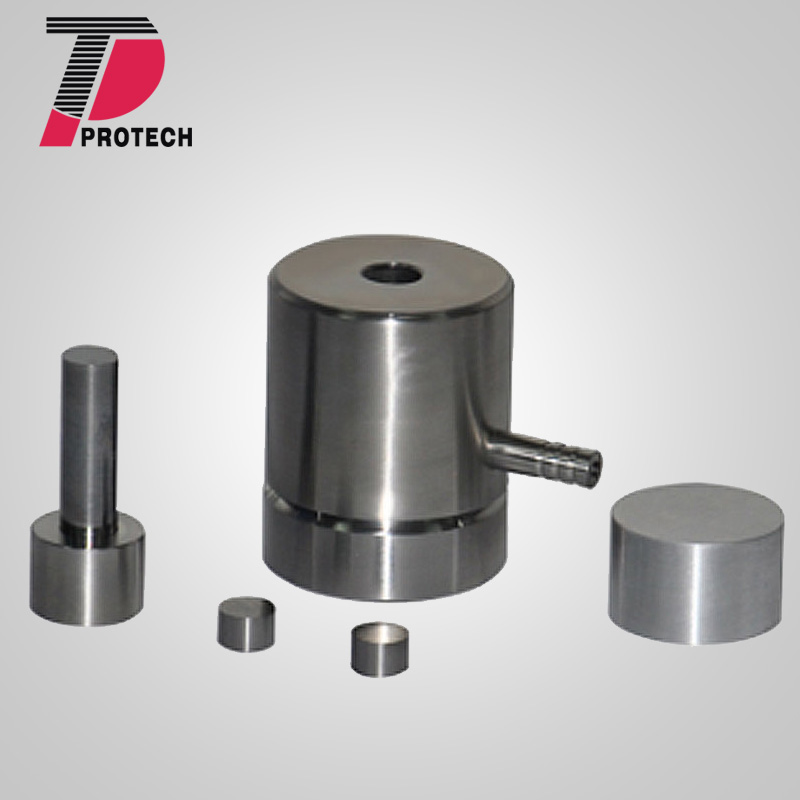

Circular pressing die

Circular pressing die

    Application:  Mainly used in industries such as catalysis, silicate, ceramics, batteries, superconductivity, biochemical analysis and sample preparation of new materials.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

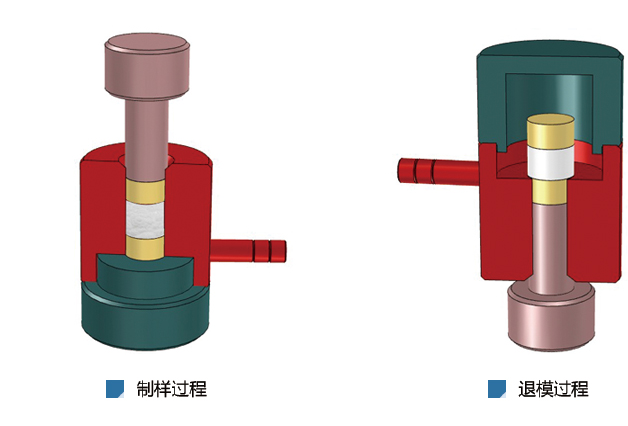

A pressing die is suitable for the molding and testing of most of the samples, holds the uncompressed powder in a shaped pocket. The pocket shape defined the final pellet shape.Across International offers manual and electrical hydraulic pellet presses with dozens pressing dies available. Also try our latest easy-retrieve dies for super fast and easy pellet retrival.

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.

parameters of Dry pressing die :

Mold material HRC60-HRC62
Pressure head hardness HRC60-HRC62
Sample size Φ50,Φ60,Φ70mm
Cavity depth 55,60,65mm
Appearance size Φ88*150mm,Φ98*180mm,Φ108*180mm
Mold weight 5.1kg, 7.3kg, 9kg
