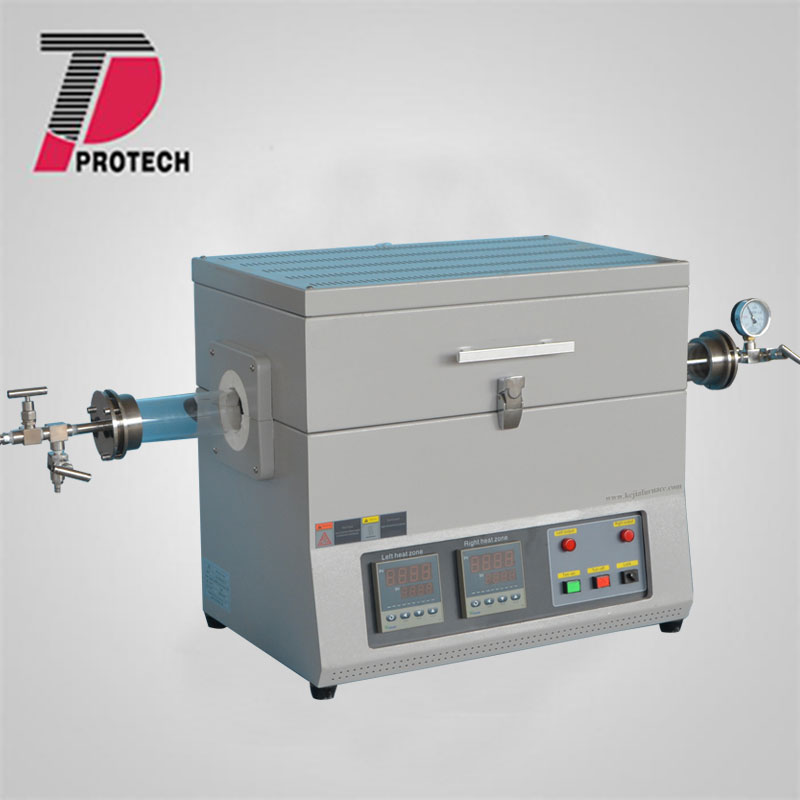

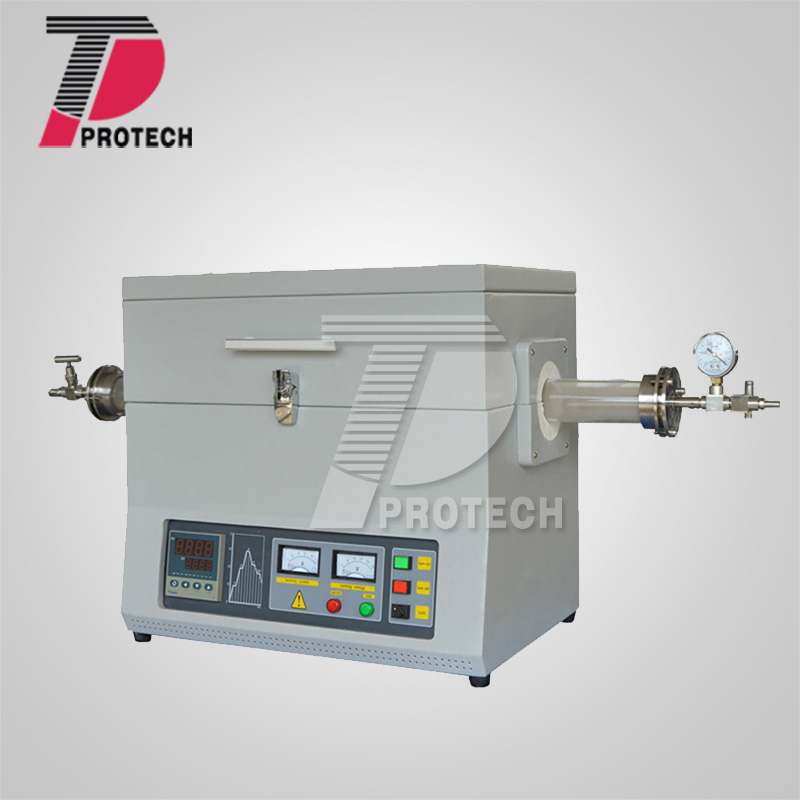

Dual Zone Quartz tubular furnace
model:OTF-1200X-80-II-M4LV

Dual Zone Quartz tubular furnace

    Application:
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Description:6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    Dual Zone Quartz tubular furnace is a CE certified and ready to pass UL/CSA certification spiltable dual zone Tube furnace with 80mm diameter quartz tube, mechanical vacuum pump and four channel gas flowing system. It can achieve a maximum vacuum up to 10-2 torr and mix 1-3 types of gases for CVD or diffusion.
6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

1.Features of Dual Zone Quartz Tube Furnace :6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(1). Operation Temperature: 1100°C  ( 1200°C for short time). 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(3). Heavy duty double layer structure with cooling fan. Lower temperature in outside case. 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).             6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(5). Power control with 30 segments programmable. 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2.Technical parameters of Dual Zone Quartz Tube Furnace :6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Power 208-240VAC,  50/60Hz, single phase,  2.5KW ( 20A Breaker required)
Heating Temperature Max. Temperature: 1200°C6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Continuous Temperature: 1000°C
Heating Zone Two Zones:  200 mm (8") for each zone and total 400 mm heating zone length
Constant Temperature Zone If two zones are set at the same temperature, constant temperature zone is 10" (250 mm)6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 long  with a temperature discrepancy of +/- 1°C.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
If using only one zone (center zone), constant temperature zone is 4.3" (110 mm) long 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
with a temperature discrepancy of +/- 1°C.
Max. Heating Rate <= 20  °C /min (20 °C /min below 800°C; <5 °C /min over 1000°C)
Tube Size and material Quartz Tube: 80 ODx 72 IDx 1000 L
Temperature Accuracy +/- 1°C
Heating Elements Fe-Cr-Al Alloy doped by Mo
Temperature Controller Two precision temperature controllers to control two zones separately.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
PID automatic control with 30 programmable segments for precise control of 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
heating rate, cooling rate and dwell time.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Built in overheating & broken thermocouple protection.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Over temperature protection and alarm allows for operation without attendant(s).6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
+/- 1 ºC temperature accuracy.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
RS485 Communications Port.
Gas Mix Station Four precision mass flow controller ( MFC)  with digital display6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
·         MFC 1: Control range from 0~100 sccm6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
·         MFC 2: Control range from 0~200 sccm6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
·         MFC 3: Control range from 0~200 sccm6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
·         MFC 4: Control range from 0~500 sccm6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Gas route: 4 routes6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Flowing rate accuracy: 0.2% accuracy6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Gas inlet and outlet: 1/4" swagelok tube connector6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
One gas mixing tank installed on bottom case with liquid release valve.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Each gas route with SS needle valve to on-off control independently.
Vacuum pump 120 L/m Rotary Vane Vacuum Pump with Oil Trap (220V single phase) and 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
stainless steel hose tube are included for connecting to tube furnace. 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Max. achievable vacuum pressure is 10^-2 torr.
Vacuum gauge Power Connection:9 pins D-sub connector. 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Power Adapter:One 24V,1A DC power adapter is included and ready to use.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
 Input voltage for the adpter is 110~240V.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Measurement Range:3.8x10-5 to 1125 Torr.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Display:Digital display (20x14mm) with measurement unit torr 6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Gauge Fitting:Small Foot-Print with 1/8"NPT fitting6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Dimensions:46mm×28mm×126mm ( L x W x H)
Certificate CE
6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Dual Zone Quartz Tube Furnace can be customized according to customers’requirements.6vNMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
