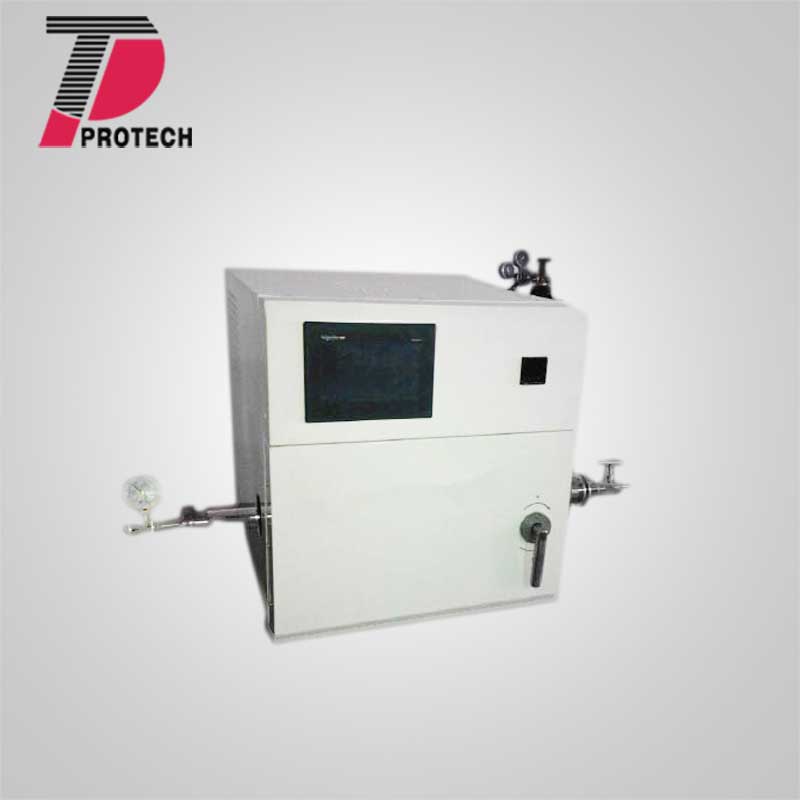

Microwave tube furnace
model:PT1500

Microwave tube furnace

    Application:  Mainly used in powder metallurgy, electronic ceramics, magnetic materials, battery materials and other inorganic oxide powder sintering preparation, industrial production, scientific experiments and other fields.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Description:TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Glue, water of crystallization, thermal decomposition Dry distillation, pyrolysis, pyrolysis Oxidation, reduction, nitride The flue gas denitration desulfurization Vapor deposition.
TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Oustanding featuresTvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Using special industrial microwave source, to ensure the continuous stable for a long time. TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Stepless adjustable microwave output power, achieve precise temperature control curve; TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. Set into the cavity of the gas oven pathway, furnace atmosphere is forced to flow and the fine control; TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. Imported high precision infrared thermometer, direct measurement of material temperature; TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Equipped with embedded microcomputer control system, provides two types of manual and automatic operation mode and switch freely; TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
6. Various original special crucible for selection, for material non-polluting; Can process various microwave properties of materials, excellent versatility; TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
7. Real-time temperature curve, according to realize the dynamic monitoring of the heating process; TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
8. Multiple containment microwave shielding design, safe and reliable protection.TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters
PTlab PT1500 PT3000
Max.temperature 1100℃ 1400℃
Temperature accuracy +-0.1% +-0.1%
Atmosphere system OxidationTvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
protective and weak reducing atmosphere
Oxidation, protective and weak reducing atmosphere;TvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Configuration function of hot
Chamber size 250*300mm 380*520mm
Loading space 50*250mm 80*600mm
Output power 0.2-1.4KW(adjustable) 0.3-2.85KW(adjustable)
Power  4Kw 6Kw
Temperature measurement way Thermocouple or infrared LeiTai infrared thermometer
Control mode PC or touch screen PC or touch screen
Setting process curve yes yes
Cooling way Water cooling Water coolingTvZMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
