model:PTlab

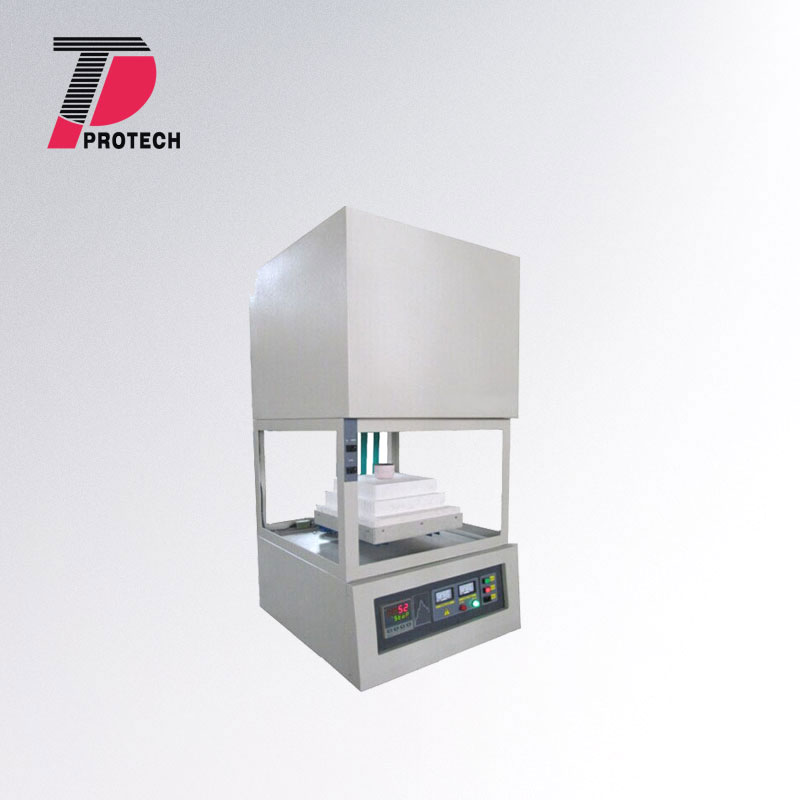

Microwave vacuum furnace
Application: Mainly used in powder metallurgy, electronic ceramics, magnetic materials, battery materials and other inorganic oxide powder sintering preparation, industrial production, scientific experiments and other fields.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Description:
In addition to meet microwave furnace atmosphere all applications, especially can be applied to: Iron base, copper base powder metallurgy and sintering of hard alloy products Sintered ndfeb magnetic material The nitride, carbide metal powder materials.
Outstanding features
1. Using special industrial microwave source, to ensure the continuous stable for a long time.
2. Stepless adjustable microwave output power, achieve precise temperature control curve.
3. Set 2 gas channel, fine controllable atmosphere.
4. Imported high precision infrared thermometer, direct measurement of the sample temperature.
5. Equipped with embedded microcomputer control system, provide manual and automatic, constant temperature three operating modes and are free to switch.
6. All kinds of heat insulation for the original special crucible and choice, no pollution for material.
7. Can process various microwave properties of materials, excellent versatility.
8. Set the anti-corrosive exhaust passage, it can be heated fast discharge process of gas;
9. Real-time temperature curve, according to realize the dynamic monitoring of the heating process;
10. Multiple containment microwave shielding design, safe and reliable protection.
Technical parameters
PTlab |
PT3000 |
PT4500 |
Max.temperature |
1400 ℃
(103 pa vacuum) 1600℃ atmosphere condition |
1400 ℃
(103 pa vacuum) 1600℃ atmosphere condition |
Temperature accuracy |
+-0.1% |
+-0.1% |
Atmosphere system |
Oxidation, protective and weak reducing
atmosphere |
Oxidation, protective and weak reducing
atmosphere |
Final vacuum
|
10-3 pa |
10-3 pa |
Chamber size |
500*560mm |
500*560mm |
Loading space |
110*110mm |
110*110mm |
Output power |
0.3-2.85KW(adjustable) |
0.3-4.2KW(adjustable) |
Power |
9Kw |
12Kw |
Temperature measurement way |
infrared temperature measurement |
infrared temperature measurement |
Control mode |
PC |
PC |
Setting process curve |
yes |
yes |
Cooling way |
Water cooling |
Water cooling
|
