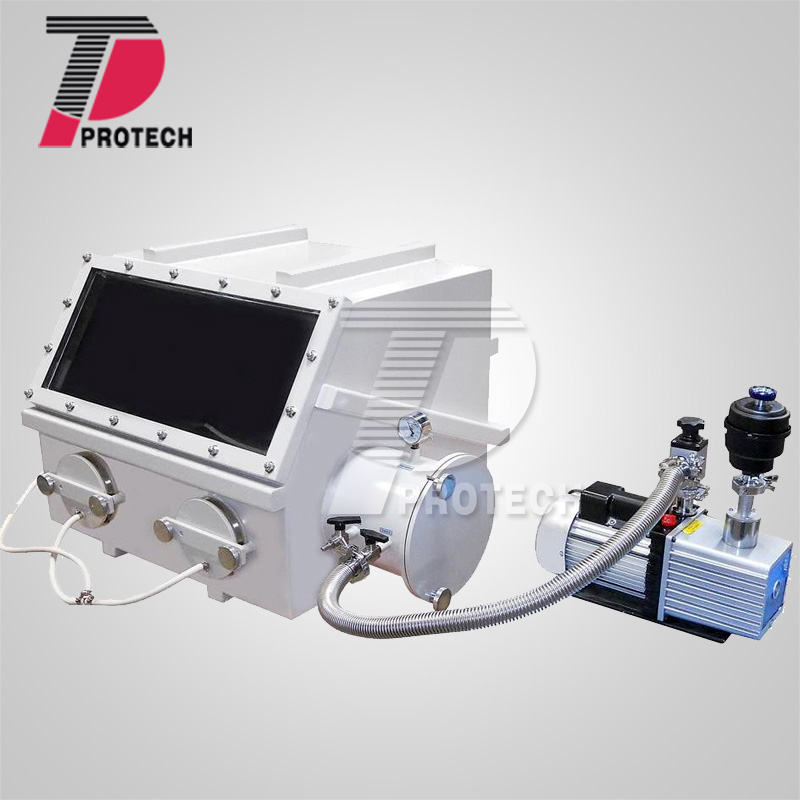

VGB series of vacuum glove box
model:VGB

VGB series of vacuum glove box

    Application:  Mainly used in material experiments or chemical experiments, semiconductors, experimental research on the preparation of nanomaterials and battery electrodes
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
VGB series is stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.
TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Model VGB-1 VGB-3 VGB-4
Dimension 936*480*475 1040*700*710 1555*745*960
Main chamber sizeTIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(L*W*H)mm
594*444*414 780*700*650 1120*740*900
Front pump chamberTIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(L*Dia)
270*140 260*240 435*360
Box outside connection 1. The front class has a mechanical pressure gauge, a ball valve and a KF25 interfaceTIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. There is a KF25 interface and two ball valves behind the main cavity
Vacuum level       Pre-stage chamber: 0.05 Torr (close the front of the internal flange, so that the former class and the main warehouse to become a separate vacuum chamber);TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
   Main warehouse: 0.5 Torr (closed front of the internal flange, so that the former level and the main warehouse to become a separate vacuum chamber)TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
  · Maximum positive pressure: 1.1 atmTIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Note:TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
· This glove box is not designed for high vacuum and the vacuum is too high to deform the glove box.TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
· Rubber gloves can not be operated in a vacuum condition, in order to remove water and oxygen from glove.TIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
· Maximum positive pressure: 1.1 atm (Note: if the pressure inside the glove box is higher than 1.1atm 810 torrs can not operate rubber gloves).
Power supply Three core plugTIDMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
(power input)
Three core power line  patch panel

One extension socket (Max power 1500W) is installed in the glove box main chamber.
