model:PT-M1700-BF

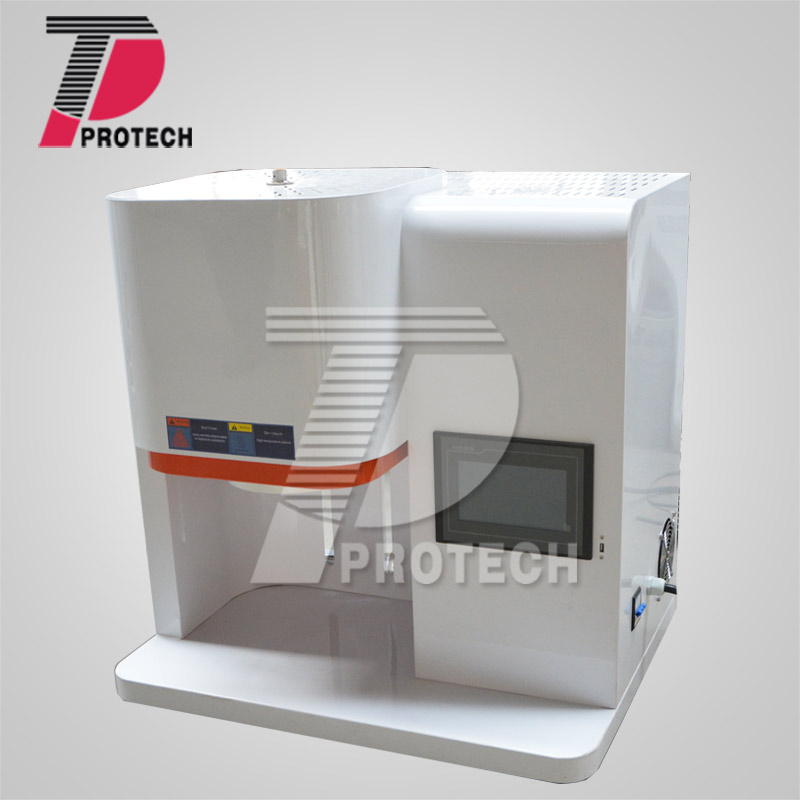

PT-M1700-BF Fast sintering furnace
Application: Protech dental fast sintering furnace is mainly used for the sintering of zirconia materials and also can be used in the field of powder metallurgical for the high temperature sintering and annealing of the materials.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Brief Introduction:
Protech dental fast sintering furnace is mainly used for the sintering of zirconia materials and also can be used in the field of powder metallurgical for the high temperature sintering and annealing of the materials.
The main features are as below:
- Simple English touch screen control panel
- Various programmed curve setting available
- Exclusive elements to avoid zirconia discoloration
- Big cylindrical chamber with auto lift and drop tray
- Fast heating speed
- Auto lifting down when finish cooling
- One-cilck operation.
Technical Parameter:
Chamber structure |
Circular and bottom lift |
Display |
Touch Screen LCD |
Max Temperature |
1700°C |
Usable Range |
≤1600°C |
Heating Rate |
0~100°C/min |
Inside Chamber Size |
Φ154×125mm |
Heating Element |
Torch MoSi2 Heating elments |
Thermocouple |
B Type |
Max. Power |
5.5KW |
Working Voltage |
AC110-240V, 50/60hz |
Temperature Control |
PID automatic control via SCR power control |
Warranty |
One year limited warranty (Consumable parts such as heating elements are not covered by the warranty) |
No |
Name |
Reference Picture |
Unit |
Quantity |
1 |
PT-M1700-BF dental furnace |
|
set |
1 |
2 |
Crucible |
|
set |
1 |
3 |
Zirconia Beads |
|
piece |
1 |
4 |
Crucible Tong |
|
piece |
1 |
5 |
B type Thermocouple |
|
piece |
1 |
6 |
Protective gloves |
|
pair |
1 |
7 |
Tray |
|
piece |
1 |
8 |
Loading table |
|
piece |
1 |
9 |
User Manual |
|
piece |
1 |
10 |
Power line |
|
piece |
1 |
11 |
Packing list |
|
piece |
1 |
