| Item | Name | Model | Qty | Unit | EXW Price |

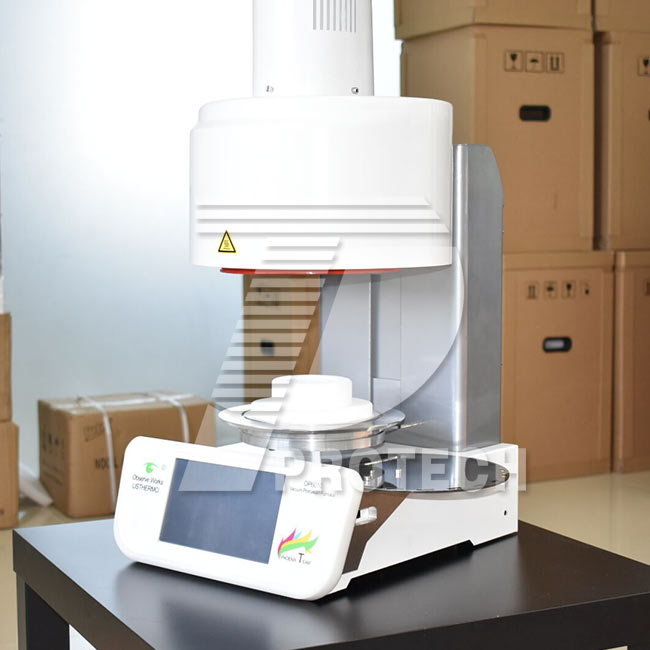

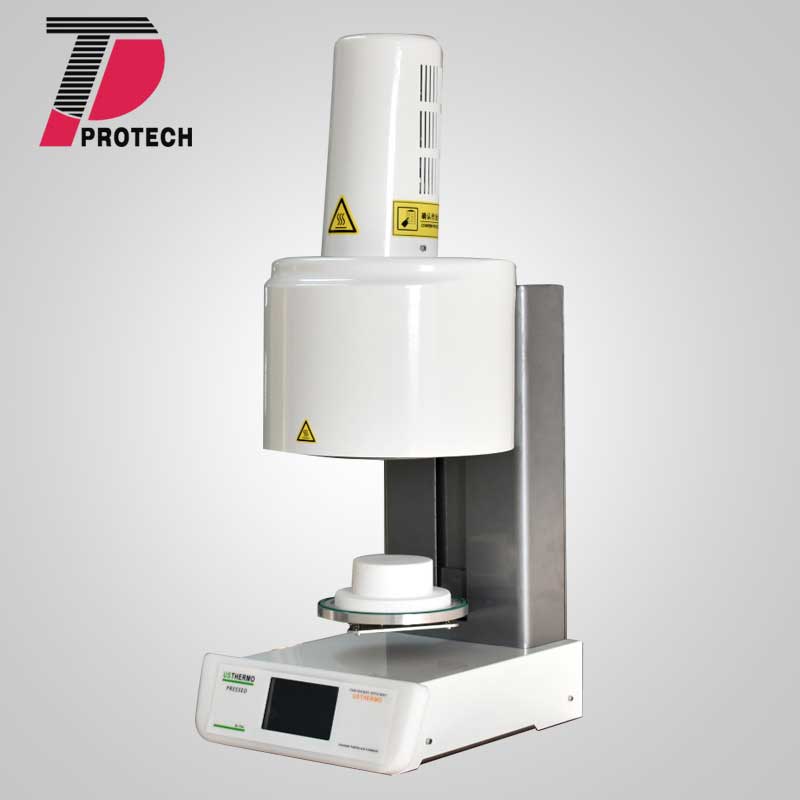

| 1 | Press Furnace | PT-P1200 | 1 | Set | USD(***) |
| Vacuum level | 1-101% | The max temperature |
1200C max (22830 F) |
|
The velocity of temperature increasing : |
200C/min max. (3920 F /minute) |
The time which can be kept at the max temperature | 2 H |
| Operation range | 100-120V 50/60HZ 230V 50/60HZ | Electric current | 14.5ampere@110V 7.0ampere@230V |
| Power max | 1500w | WXDXH | width 27cm Depth 36cm Height 70cm |
| Usable measure (firing chamber) | 9cm 3.5" | Net weight | 22Kg |
|
AMBIENT CONDITIONS |
Indoor use Ambient temperature: 20 C to 400 C Relative humidity 80% at 31oC Maximum altitude : 1500 m (Special Model:3500m) Rated voltage fluctuations must not exceed plus/minus 10% of the rated voltage |
||
