Stainless Steel High-Temperature Vacuum Brazing: Difficulties and Atmosphere Furnace Solutions

1. Industry Background: Technical Pain Points of Stainless Steel Vacuum Brazing

1.1 Application Scenarios and Process Requirements of Stainless Steel Brazing
High-temperature vacuum brazing is the core precision connection process for stainless steel components, adapting to high-standard requirements of high temperature resistance, corrosion resistance and air tightness.
Stainless steel materials feature high strength, excellent corrosion resistance and stable high-temperature performance, widely used in aerospace, new energy equipment, vacuum vessels, chemical precision parts and food machinery. Most stainless steel structural components require integrated brazing connection to ensure overall structural stability and sealing performance. Conventional welding processes struggle to meet the high-precision manufacturing standards of stainless steel workpieces. High-temperature vacuum atmosphere brazing can effectively protect material properties, obtain clean and high-strength joints, and has become the mainstream process for high-end stainless steel component assembly.

1.2 Key Difficulties in Traditional Stainless Steel Brazing Processes
Stainless steel’s unique material characteristics lead to prominent defects such as surface oxidation, chromium depletion and joint embrittlement in conventional brazing.
Stainless steel contains chromium, nickel and other alloy elements with strong oxygen affinity. In atmospheric high-temperature brazing, dense chromium oxide films quickly form on the material surface, hindering filler metal wetting and spreading and causing incomplete brazing and poor joint compactness. Long-term high-temperature heating without atmosphere protection will lead to local chromium depletion, reducing the corrosion resistance of stainless steel. In addition, mismatched heating temperature and cooling curves easily cause residual stress, joint embrittlement and micro-cracks, seriously affecting the service life and safety of precision stainless steel components.

1.3 Deficiencies of Ordinary Furnaces in High-Precision Brazing
Common heating equipment suffers from unstable atmosphere and uneven temperature, failing to solve batch quality fluctuation problems of stainless steel brazing.
Ordinary box furnaces and general vacuum furnaces have poor sealing performance, unstable vacuum degree and large temperature field deviation. They cannot maintain a continuous ultra-clean and oxygen-free high-temperature environment, resulting in local oxidation, insufficient filler diffusion and inconsistent brazing quality. Moreover, ordinary equipment lacks professional atmosphere regulation and gradient cooling systems, which cannot eliminate brazing residual stress. It is difficult to meet the mass production requirements of high-air-tightness and high-corrosion-resistance stainless steel components, restricting the industrial upgrading of high-precision stainless steel products.

2. Unique Technical Difficulties of Stainless Steel High-Temperature Vacuum Brazing

2.1 Surface Oxidation and Passivation Film Barrier Problem
Stable chromium passivation film on stainless steel surface hinders metallurgical bonding, becoming the primary difficulty in brazing molding.
The natural passivation film formed by chromium oxidation on stainless steel surface is dense and stable, which cannot be removed by conventional heating. At high temperatures, residual trace oxygen in the furnace will further thicken the oxide film, completely isolating the wetting reaction between filler metal and base metal. This leads to insufficient joint bonding strength, virtual welding and peeling defects. Only by relying on high-vacuum and pure inert atmosphere environment can the oxide film be effectively decomposed and inhibited, ensuring effective combination of brazing filler and stainless steel base metal.

2.2 High Temperature Induces Alloy Element Precipitation and Performance Degradation
Uncontrolled high-temperature heating causes alloy element precipitation and grain coarsening, reducing stainless steel corrosion resistance and toughness.
Stainless steel has strict temperature sensitivity during high-temperature processing. Long-term high-temperature heat preservation or local overheating will cause chromium carbide precipitation and internal grain coarsening, resulting in material embrittlement and reduced toughness. Meanwhile, element segregation will destroy the original uniform alloy structure, significantly weakening the corrosion resistance of stainless steel components. Such hidden quality problems cannot be eliminated by post-processing, which directly affects the long-term stable service performance of precision equipment components.

2.3 Residual Stress and Brazing Deformation Control Difficulty
High material hardness and poor thermal conductivity of stainless steel make stress release and deformation control more difficult than ordinary metal brazing.
Compared with copper and carbon steel, stainless steel has lower thermal conductivity and higher structural hardness. Unreasonable heating and cooling rates easily form severe internal thermal stress. Thin-walled stainless steel parts and complex structural workpieces are prone to warping, distortion and dimensional deviation after brazing. Conventional process equipment cannot achieve precise segmented temperature control, resulting in unstable stress release effect and high product defective rate, which restricts the standardized production of precision stainless steel parts.

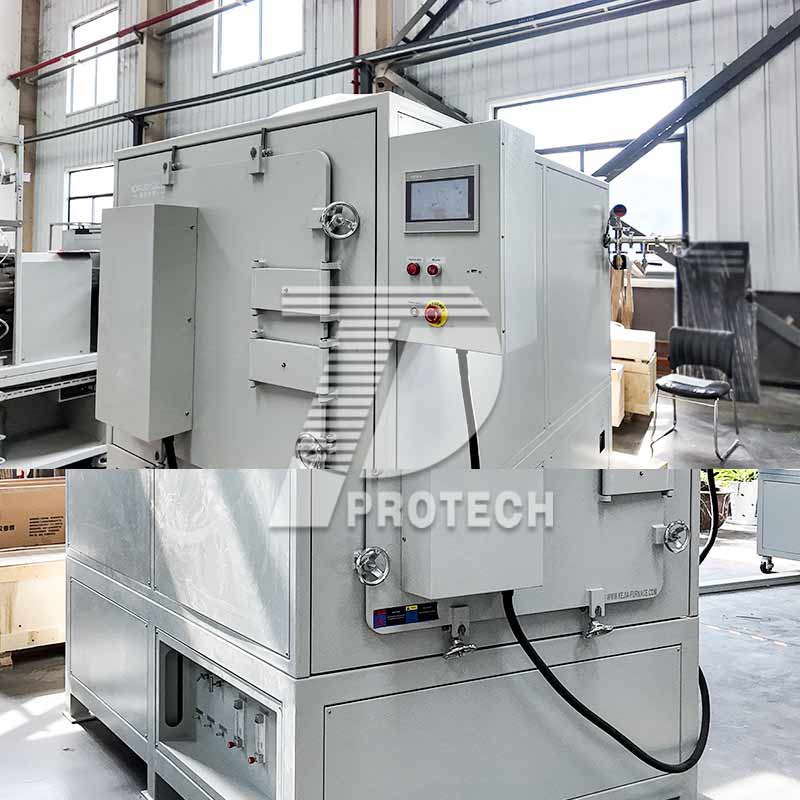

3. Core Application Advantages of Atmosphere Brazing Furnace

3.1 Ultra-Clean Inert Atmosphere Eliminates Oxidation Barriers
Pure inert atmosphere protection inhibits oxide film regeneration and thoroughly solves the problem of poor filler metal wetting.
Professional atmosphere brazing furnaces adopt high-precision vacuum pumping and multi-cycle inert gas displacement technology to remove internal air, moisture and residual oxygen, maintaining an ultra-low oxygen environment in the furnace. The stable inert atmosphere can decompose the initial passivation film on the stainless steel surface and completely prevent secondary oxidation at high temperature. Without oxide barriers, the brazing filler metal can fully wet and spread on the base metal surface, forming dense, pore-free and high-strength brazing joints, ensuring excellent air tightness and bonding performance.

3.2 Uniform Temperature Field Avoids Material Performance Damage
Whole-furnace uniform radiation heating realizes precise temperature control and avoids grain coarsening and element precipitation defects.
The atmosphere brazing furnace is equipped with a high-precision multi-zone heating system, with extremely small temperature deviation in the effective working area. It realizes synchronous and uniform heating of stainless steel workpieces, avoiding local overheating and excessive temperature difference. Through scientific high-temperature constant temperature parameter setting, it effectively suppresses internal grain coarsening and chromium element precipitation, maintains the original mechanical properties and corrosion resistance of stainless steel materials, and ensures consistent performance of brazed finished products.

3.3 Gradient Temperature Control Reduces Brazing Residual Stress
Programmed heating and gradient cooling mode effectively releases thermal stress and controls workpiece deformation.
Different from the single heating and rapid cooling mode of ordinary furnaces, the atmosphere brazing furnace supports multi-stage programmable temperature curves. Slow preheating ensures uniform temperature conduction inside and outside the workpiece, avoiding excessive thermal stress caused by rapid temperature rise. Segmented gradient cooling after brazing steadily releases internal residual stress, effectively preventing deformation, warping and micro-crack problems of stainless steel parts. It greatly improves the dimensional accuracy and structural stability of finished components.

4. Standardized Application Scheme of Atmosphere Brazing Furnace for Stainless Steel

4.1 Pre-Brazing Atmosphere Purification and Vacuum Treatment
Complete gas replacement and vacuum purification pretreatment create an ultra-clean brazing environment.
Before formal heating, the atmosphere brazing furnace starts vacuum pumping to extract internal air and humid gas, and performs multiple cycles of inert gas replacement to minimize residual oxygen and moisture. Strict atmosphere purification pretreatment thoroughly eliminates oxidation sources, ensures that the stainless steel surface is always in a pure protective state during high-temperature heating, and lays a foundation for high-quality brazing joint molding.

4.2 Segmented High-Temperature Brazing Parameter Matching
Targeted temperature curve setting adapts to the high-temperature resistance and heat conduction characteristics of stainless steel.
According to the stainless steel material grade and brazing filler metal type, the equipment formulates exclusive segmented temperature parameters. The low-temperature stage removes residual impurities and avoids sudden temperature rise stress; the medium-temperature transition stage stabilizes the heating rate to balance internal and external temperature; the high-temperature brazing stage accurately locks the optimal melting and diffusion temperature of the filler metal. Precise temperature matching ensures full metallurgical bonding while protecting the base metal performance from damage.

4.3 Whole-Process Atmosphere Stability Control
Dynamic inert gas circulation and micro-positive pressure maintenance ensure long-term stable furnace atmosphere.
During high-temperature brazing, the atmosphere brazing furnace adopts continuous inert gas circulation and micro-positive pressure protection mode to prevent external air infiltration. The system dynamically adjusts gas flow according to temperature changes to maintain uniform gas distribution in the furnace cavity. It avoids local atmosphere fluctuation and oxygen enrichment, ensures that all workpieces in the furnace maintain consistent brazing conditions, and realizes stable batch production of high-quality stainless steel components.

4.4 Post-Brazing Intelligent Stress Relief and Cooling
Stage gradient cooling and heat preservation treatment eliminate residual stress and stabilize workpiece size.
After the high-temperature brazing is completed, the system does not perform rapid cooling immediately. Instead, it adopts high-temperature heat preservation and slow cooling to release internal thermal stress uniformly, and then performs low-temperature stable cooling to fix the structural size. This standardized cooling scheme effectively solves the deformation and residual stress problems of stainless steel precision parts, ensuring high dimensional accuracy and structural stability of finished products.

5. Industry Application and Development Prospect
Atmosphere vacuum brazing technology has become the key supporting process for high-end stainless steel precision component manufacturing.
With the upgrading of aerospace, semiconductor equipment, new energy and chemical high-end manufacturing industries, the demand for high-precision, high-stability and high-corrosion-resistance stainless steel components continues to increase. Traditional welding and ordinary brazing processes can no longer meet the strict requirements of high-end equipment. Atmosphere brazing furnaces effectively solve the multiple technical difficulties of stainless steel high-temperature brazing and become the core equipment for high-quality processing of stainless steel components.

Intelligent atmosphere regulation and refined temperature control will further optimize stainless steel brazing production efficiency and quality.
In the future, atmosphere brazing furnaces will develop towards full intelligence, higher atmosphere precision and more uniform temperature field. Digital whole-process parameter monitoring and closed-loop adjustment technology will realize unmanned standardized production of stainless steel brazing, further improving product consistency and production efficiency, and promoting the high-quality development of the high-end stainless steel processing industry.
