Copper Vacuum Brazing Process: Furnace Selection and Temperature Control Essentials

1. Industry Background: Technical Difficulties of Copper Vacuum Brazing

1.1 Application Value and Process Requirements of Copper Brazing
Vacuum brazing has become the core precision connection process for copper components, solving the problems of poor bonding strength and easy oxidation in traditional copper welding.
Copper and copper alloy parts are widely used in new energy heat sinks, refrigeration components, electrical conductors and precision machinery fields due to their excellent thermal conductivity, electrical conductivity and ductility. In actual production, multiple copper structural parts often need integrated connection and forming. Traditional argon arc welding and soldering processes are prone to copper surface oxidation, weld porosity, deformation and insufficient joint compactness. Vacuum brazing realizes component connection through low-temperature melting and wetting spreading of brazing filler metal in a vacuum environment, which can maintain the original physical properties of copper materials and obtain high-strength, high-density and oxidation-free welds, becoming the preferred process for high-precision copper part assembly.

1.2 Defects and Pain Points of Traditional Copper Welding Processes
Traditional atmospheric welding processes cannot avoid copper oxidation and thermal deformation, resulting in unstable quality of copper part joints.
Copper materials have high thermal conductivity and strong oxygen affinity at high temperatures. In conventional atmospheric welding, high-temperature heating will quickly form thick oxide layers on the copper surface, resulting in poor wetting of brazing filler metal, incomplete weld penetration and obvious joint gaps. In addition, local overheating and uneven heating cause serious thermal deformation of thin-walled copper parts, affecting the assembly accuracy and flatness of finished products. Traditional processes also require post-welding cleaning, pickling and polishing, which increases process complexity and production cost, and cannot meet the precision manufacturing standards of high-end copper components.

1.3 Importance of Professional Furnace Selection and Accurate Temperature Control
Reasonable vacuum brazing furnace selection and precise temperature control are the key prerequisites to realize high-quality and consistent copper brazing effects.
The quality of copper vacuum brazing is mainly determined by vacuum degree, heating uniformity and temperature curve accuracy. Ordinary general-purpose vacuum furnaces have unstable vacuum holding capacity and poor temperature field uniformity, which are easy to cause local oxidation, insufficient filler spreading and virtual welding defects. Only by selecting a professional vacuum brazing furnace matching copper material characteristics and formulating segmented and accurate temperature control parameters can we effectively avoid common brazing defects, ensure firm joint bonding and stable batch quality, and support large-scale standardized production of precision copper parts.

2. Core Advantages of Vacuum Brazing for Copper Parts

2.1 Vacuum Environment Eliminates Copper Oxidation Defects
The high-vacuum oxygen-free environment completely suppresses high-temperature oxidation of copper, ensuring smooth spreading and wetting of brazing filler metal.
The interior of the vacuum brazing furnace maintains a high vacuum state, which completely removes air, moisture and residual oxygen in the furnace cavity. It fundamentally avoids the formation of copper oxide and cuprous oxide on the surface of copper parts during high-temperature heating. Without oxide barrier, the brazing filler metal can fully wet the copper base metal surface, flow evenly along the joint gap, and form dense and uniform brazing seams. The brazed copper parts have bright surface without oxidation discoloration, eliminating the need for subsequent surface pickling and polishing processes.

2.2 Uniform Heating Reduces Thermal Deformation of Copper Components
Overall radiation heating mode ensures uniform temperature of copper parts and effectively controls thermal deformation.
Different from the local concentrated heating of traditional welding, the vacuum brazing furnace adopts overall radiation heating. The temperature field in the furnace is uniform and stable, and all surfaces of copper parts are heated synchronously without local overheating. For thin-walled copper heat sinks, copper pipe assemblies and micro-precision copper parts, the overall uniform heating mode can effectively reduce internal thermal stress, avoid warping, bending and shrinkage deformation, and maintain the original dimensional accuracy and structural flatness of copper components.

2.3 Improve Joint Strength and Product Consistency
Stable vacuum and temperature conditions form high-density brazing joints, improving the mechanical properties and batch consistency of copper parts.
Under standard vacuum brazing conditions, the brazing filler metal and copper base metal produce sufficient diffusion and metallurgical bonding, with no pores, cracks or virtual welding inside the joint. The brazed joint has high tensile strength, good air tightness and excellent thermal conductivity, which is consistent with the performance of the copper base metal. The whole-process closed and controllable production environment makes the brazing effect of each batch of parts stable and consistent, solving the problem of unstable quality in traditional manual welding.

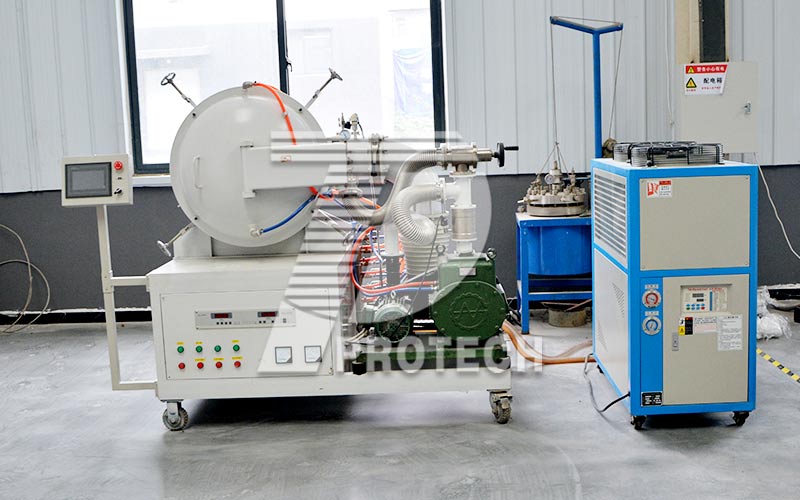

3. Key Selection Criteria for Copper Vacuum Brazing Furnace

3.1 Vacuum Degree and Vacuum Holding Stability
High and stable vacuum degree is the core index to prevent copper oxidation and ensure brazing qualification rate.
Copper brazing requires a high-purity vacuum environment to isolate oxygen. Professional copper vacuum brazing furnaces need to reach a high vacuum degree of 1×10⁻³ Pa or above, and equipped with high-efficiency vacuum pump sets and good sealing structures to ensure no vacuum leakage during long-term heating and heat preservation. Stable vacuum holding capacity can continuously suppress the regeneration of tiny oxides on the copper surface, ensure the activity of the base metal surface, and provide basic guarantee for the full spreading of brazing filler metal.

3.2 Furnace Body Temperature Uniformity and Heating System
Excellent temperature field uniformity is the key to avoid local virtual welding and inconsistent brazing quality.
Copper parts have fast heat conduction and high temperature sensitivity. The selected vacuum brazing furnace must have high-precision temperature control and uniform radiation heating structure, and the temperature deviation of the effective heating zone should be controlled within ±3℃. Equipped with multi-area independent temperature regulation and multi-point thermocouple detection system, it can realize synchronous heating and constant temperature of all positions in the furnace. Uniform temperature field ensures that each brazing joint reaches the optimal melting and diffusion temperature, avoiding insufficient brazing at low temperature and filler metal ablation at high temperature.

3.3 Furnace Structure and Loading Capacity Matching
Reasonable furnace cavity structure and loading mode adapt to the diversified processing needs of different copper parts.
According to the size, wall thickness and batch production capacity of copper parts, vertical or horizontal vacuum brazing furnaces can be selected. Small and micro precision copper parts are suitable for vertical compact furnace body to reduce temperature difference; large heat dissipation copper components and multi-layer stacked parts are suitable for horizontal large-load furnace type. The furnace cavity is made of high-purity heat-resistant materials, which is not easy to volatilize impurities at high temperature, avoiding secondary pollution on the surface of copper parts, and meeting the high-precision processing requirements of different copper workpieces.

3.4 Cooling System and Production Efficiency Configuration
Intelligent cooling system configuration balances production efficiency and product deformation control.
Professional copper brazing vacuum furnace is equipped with segmented gradient cooling and rapid cooling protection system. It can realize slow cooling to release internal stress and rapid cooling to shorten cycle time according to process requirements. The gradient cooling mode effectively prevents structural deformation and residual stress of copper parts caused by rapid temperature difference, while the intelligent cooling control greatly improves production rhythm, meeting the mass production needs of enterprise copper parts.

4. Core Temperature Control Essentials for Copper Vacuum Brazing

4.1 Segmented Heating Curve Setting
Phased temperature rise, heat preservation and cooling curve is the core process to ensure stable brazing quality.
Copper vacuum brazing must adopt segmented programming temperature control to avoid quality defects caused by one-time rapid heating. In the low-temperature preheating stage, slow heating and long-time heat preservation are adopted to uniformly remove moisture and residual gas in copper parts and brazing filler metal, preventing bubble defects in brazing seams. In the medium-temperature transition stage, the temperature rise rate is stabilized to ensure synchronous temperature conduction inside and outside the parts. In the high-temperature brazing stage, the temperature is stably maintained near the melting point of the brazing filler metal to ensure sufficient melting, spreading and diffusion of the filler metal.

4.2 Precise Control of Brazing Constant Temperature Range
Strict temperature threshold control avoids insufficient melting or over-ablation of brazing filler metal.
Different copper-based brazing fillers have fixed melting point ranges. The furnace temperature must be accurately locked according to the filler metal parameters, and the constant temperature deviation is controlled within ±2℃. If the temperature is too low, the brazing filler metal cannot fully melt and spread, resulting in virtual welding and weak joint strength; if the temperature is too high, the filler metal will be ablated in vacuum, and the copper base metal will be overheated and softened, affecting the structural rigidity and dimensional accuracy of the parts. Accurate constant temperature control ensures the best metallurgical bonding state of brazing joints.

4.3 Heating Rate and Temperature Holding Time Matching
Reasonable heating rate and heat preservation time adapt to the heat conduction characteristics of copper materials.
Copper has extremely fast thermal conductivity. Excessively fast heating will cause inconsistent internal and external temperature of thick copper parts, resulting in unbalanced thermal stress. In actual production, the heating rate should be reasonably adjusted according to the wall thickness and structure of copper parts. Thick structural parts need slow heating and properly extended heat preservation time to ensure full temperature penetration and sufficient diffusion of brazing filler metal. Thin-walled precision parts appropriately shorten the heat preservation cycle to avoid excessive heating affecting material hardness and flatness.

4.4 Gradient Cooling Control to Eliminate Residual Stress
Segmented gradient cooling technology effectively eliminates residual stress and prevents post-brazing deformation.
Rapid cooling after high-temperature brazing is easy to cause severe residual stress and micro-deformation of copper parts. Professional vacuum brazing process adopts staged gradient cooling: slow cooling at high temperature releases internal stress, and stable cooling at low temperature fixes the structural size. Scientific cooling curve control ensures that the brazed copper parts have stable structure and accurate size, no rebound deformation in subsequent processing and use, and improves the overall qualification rate of products.

5. Industry Application and Development Prospect
Vacuum brazing technology has become the mainstream precision connection process for high-end copper components, with expanding market application scope.
With the upgrading of new energy, refrigeration, electrical and precision equipment manufacturing industries, the demand for high-precision, high-air-tightness and high-stability copper parts continues to grow. Traditional welding processes can no longer meet the requirements of high-end equipment for copper joint strength, flatness and oxidation resistance. Vacuum brazing, with its advantages of no oxidation, small deformation and high bonding strength, has become the preferred process for copper heat sinks, conductive bus bars, refrigeration copper pipes and precision copper structural parts.

Intelligent furnace equipment and refined temperature control technology will further promote the upgrading of copper brazing process.
In the future, vacuum brazing furnaces will develop towards intelligent programming, full-automatic operation and higher temperature uniformity. Accurate closed-loop temperature control and digital process parameter management will realize batch unmanned production of copper parts, further improving product consistency and production efficiency. The continuous optimization of vacuum brazing technology will support the high-quality development of high-end copper component manufacturing industry.
