Rotary Tube Furnace: An All-Round Processing Equipment from Carbon Molecular Sieves to New Energy Ma

In the field of industrial material preparation and modification, the rotary tube furnace has become an "all-round equipment" for cross-industry material processing, relying on its core advantages such as uniform heating, continuous operation, and strong process controllability. From the activation of carbon molecular sieves in the gas separation field to the sintering of battery materials in the new energy industry, and the preparation of special ceramics and catalyst carriers, the rotary tube furnace, with its flexible adaptability and stable processing effect, runs through the entire process of material R&D and large-scale production, providing key technical support for the upgrading of the high-end material industry.

I. Core Working Principle: Perfect Combination of Precise Temperature Control and Efficient Mass Transfer

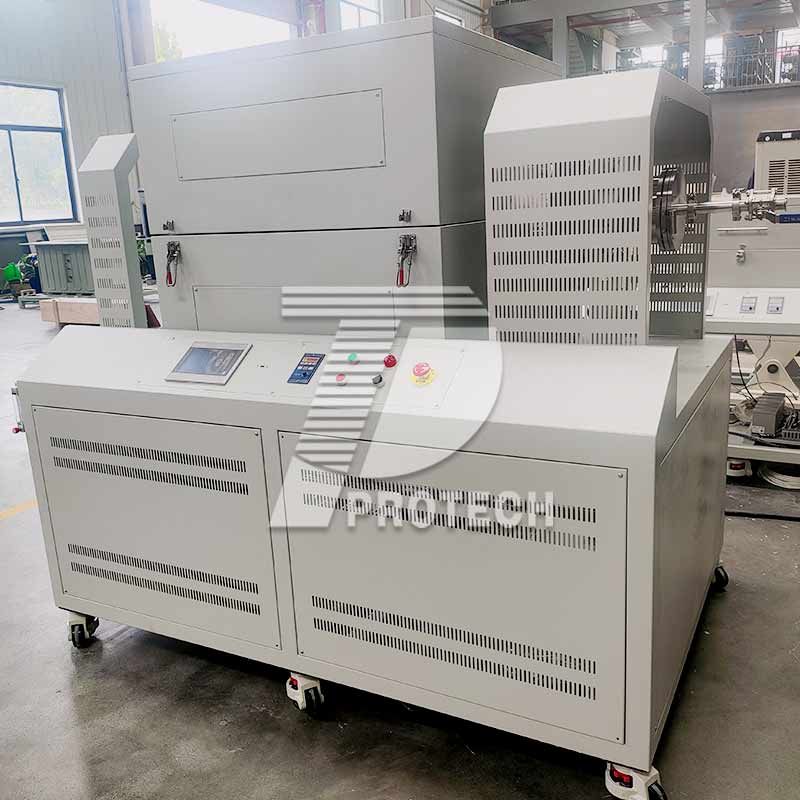

The core structure of a rotary tube furnace consists of an inclined rotating reaction tube, a heating furnace body, a temperature control system, a feeding/discharging device, and an atmosphere control system. Its working principle is based on the synergy of "dynamic heating + controlled atmosphere":
Materials enter the inclined reaction tube from the feeding end. Through the slow rotation of the tube body (adjustable speed range: 0.5-30rpm), the materials are uniformly turned over and advanced in the tube, avoiding local overheating or insufficient reaction;
The heating furnace body adopts a multi-zone heating design (usually 3-5 zones), with a temperature control accuracy of ±1℃ per zone. A gradient heating curve can be set according to process requirements to meet the reaction requirements of different materials in specific temperature ranges;
The atmosphere control system supports precise proportioning and flow control (flow range: 0.1-5L/min) of inert gases (nitrogen, argon), reducing gases (hydrogen), oxidizing gases (oxygen), or mixed gases, effectively isolating air interference and ensuring the purity and stability of the reaction;
Materials are collected through the discharge port at the end of the reaction tube. The entire process can realize continuous operation, greatly improving production efficiency and reducing batch-to-batch errors.

II. Cross-Industry Application Scenarios: Comprehensive Coverage from Basic Materials to High-End Manufacturing

1. Carbon Material Field: Activation and Modification of Carbon Molecular Sieves
As the core material for gas separation (such as nitrogen purification and hydrogen recovery), the adsorption performance of carbon molecular sieves depends on precise activation processes. The rotary tube furnace has significant application advantages in this field:
It can achieve high-temperature activation treatment at 400-900℃. By controlling the heating rate (5-10℃/min) and holding time (2-8h), the pore size distribution (0.3-1.0nm) of carbon molecular sieves is regulated, improving the selective adsorption capacity of gases;
Nitrogen or argon protective atmosphere is adopted to avoid oxidative combustion of carbon materials at high temperatures, ensuring product purity;
The continuous operation design is suitable for industrial production needs, with a daily processing capacity of 50-500kg per unit, meeting large-scale production requirements.

2. New Energy Material Field: Sintering of Battery Materials and Photovoltaic Materials
With the rapid development of the lithium battery and photovoltaic industries, the rotary tube furnace has become a key equipment for new energy material preparation:
Lithium battery cathode materials (such as ternary material LiNiCoMnO₂, lithium iron phosphate LiFePO₄): High-temperature sintering at 700-1000℃ optimizes the crystal structure and stabilizes the performance of the material, improving the cycle life and energy density of the battery; supports hydrogen/nitrogen mixed atmosphere reduction to enhance the conductivity of the material;
Anode materials (such as artificial graphite, silicon-carbon composites): Graphitization treatment under an inert atmosphere at 800-1200℃ improves the specific surface area and conductivity of the material, reducing battery internal resistance;
Photovoltaic silver paste and semiconductor materials: Low-temperature sintering and performance regulation of materials are realized through precise temperature control (300-600℃) and a clean atmosphere environment, ensuring the photoelectric conversion efficiency of photovoltaic modules.

3. Special Material Field: Preparation of Catalysts, Ceramics, and Powder Materials
The flexible adaptability of the rotary tube furnace makes it equally outstanding in the field of special materials:
Catalyst carriers (such as alumina, silica carriers): Calcination at 500-800℃ removes moisture and organic impurities in the carrier, forming a stable porous structure and improving the load capacity and activity of the catalyst;
Special ceramics (such as zirconia, silicon nitride ceramics): Sintering densification at 1200-1600℃. The rotary turning design avoids agglomeration of ceramic particles, ensuring product uniformity and mechanical properties;
Metal powder materials (such as iron powder, copper powder): High-temperature treatment under a reducing atmosphere realizes the reduction of oxides and refinement of powder, improving the fluidity and forming performance of the powder.

4. Environmental Protection and Chemical Industry: Waste Treatment and Resource Recovery
Under the background of increasingly strict environmental policies, the rotary tube furnace plays an important role in waste resource utilization:
Industrial sludge and hazardous waste: High-temperature pyrolysis at 800-1200℃ realizes the decomposition and harmless treatment of organic matter, while recovering metal resources from it;
Spent catalyst regeneration: High-temperature treatment under a reducing atmosphere removes carbon deposits and impurities on the catalyst surface, restoring its catalytic activity and reducing production costs.

III. Core Technical Advantages: Empowering High-Quality Development of the Material Industry
Precise Temperature Control Capacity: Multi-zone heating system combined with PID intelligent temperature control algorithm, temperature control accuracy up to ±1℃, supporting complex heating curve programming to meet the process requirements of different materials;
Uniformity Guarantee: Tube rotation design (adjustable speed) and optimized internal flow guide structure ensure uniform heating of materials, avoid local reaction differences, and improve product consistency;
Flexible Atmosphere Regulation: Supports precise control of various gas types, proportions, and flows, enabling rapid switching of atmosphere modes according to process requirements, adapting to oxidizing, reducing, inert and other reaction environments;
Efficient and Energy-Saving Design: Adopts high-quality thermal insulation materials (such as ceramic fiber, rock wool), the surface temperature of the furnace body is ≤60℃, and the thermal efficiency is over 75%, saving 30% energy compared with traditional furnace bodies;
Safety and Reliability: Equipped with multiple safety devices such as over-temperature alarm, gas leakage detection, and overload protection. At the same time, the reaction tube is made of high-temperature resistant quartz or alloy materials, extending the service life of the equipment;
Customized Adaptability: Can customize reaction tube size (diameter φ50-φ500mm, length 1000-6000mm), heating power (5-50kW), atmosphere system, and feeding/discharging methods according to user needs, meeting the full-scenario requirements from laboratory R&D to industrial production.

IV. Industry Development Trends: Intelligence, Large-Scale, and Greenization
With the continuous upgrading of the high-end material industry, the development of rotary tube furnaces presents three major trends:
Intelligent Upgrade: Integrate PLC control system and touch screen operation interface, support storage, call, and remote monitoring of process parameters, realize automated production and data traceability; some high-end equipment can be equipped with AI algorithms to automatically optimize temperature control curves and atmosphere parameters according to material characteristics;
Large-Scale Design: Targeting the large-scale production needs of new energy, carbon materials, etc., the equipment develops towards large-diameter reaction tubes (above φ500mm) and high-power heating (above 50kW), with a daily processing capacity of a single unit exceeding 1000kg;

Green Transformation: Optimize the heating system and thermal insulation structure to further improve thermal efficiency; adopt low-energy motors and environmentally friendly materials to reduce energy consumption and pollutant emissions during equipment operation, in line with the concept of green manufacturing.
As the core equipment for industrial material processing, the rotary tube furnace is playing an irreplaceable role in multiple fields such as carbon materials, new energy, and special ceramics with its "all-round adaptation" characteristics. In the future, with continuous technological innovation and upgrading, the rotary tube furnace will provide more efficient, precise, and environmentally friendly solutions for the R&D and industrialization of more high-end materials, helping the high-quality development of the global industrial industry.
