model:PT-MBV1400

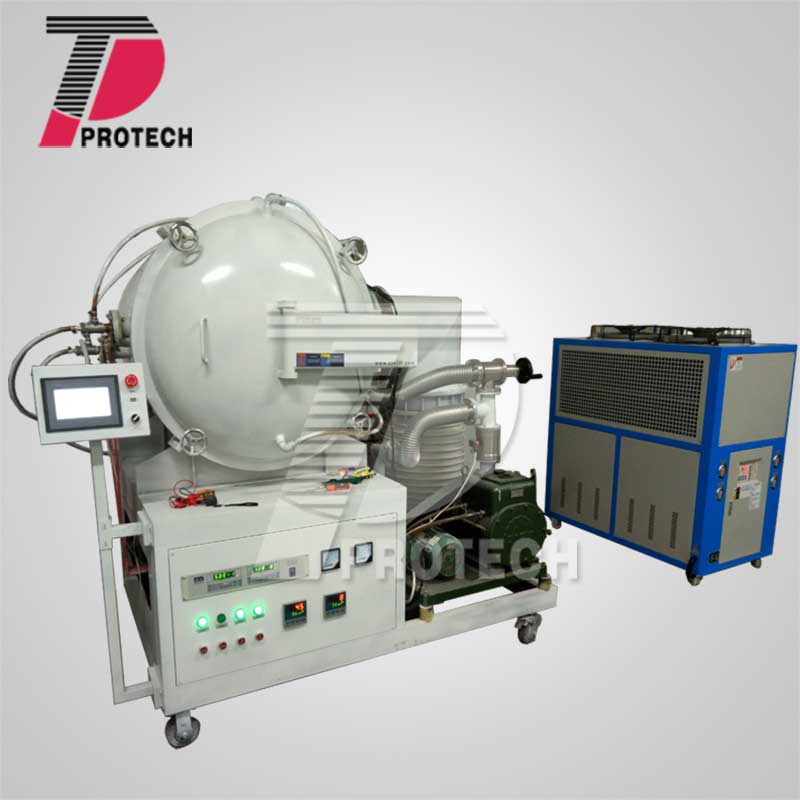

Vacuum molybdenum brazing furnace

Application

Detailed Parameters Of The Product

Brief Description:
PT-MBV Series vacuum molybdenum brazing furnace comprises a high-temperature furnace, a vacuum pump system and a precise pressure gauge. Compared with alumina fiber lining, heating chamber with molybdenum will provide a space with no dust at all.

Specific Introduction:
PT-MBV Series vacuum molybdenum brazing furnace is widely used in heat treatment of metal and special material, brazing of different material in vacuum or controlled inert gas atmosphere condition.

Parameters:

Model	PT-MBV1400
Max. Temperature	1400℃ (Higher temperature is available.)
Heating Rate	0-20℃
Heating Element	Molybdenum strip
Temperature sensor	S-type thermocouple
Insulation Material	Molybdenum plate
Temperature Accuracy	±1℃
Power Supply	110-415V，50/60Hz
Vacuum degree	6.67x10Pa/6.67x10-3Pa
Outside tank	Cooled by fans / water
Size
Heating Chamber Size mm		Capacity L
150150150		3.4
150150200		4.5
200200200		8
200200300		12
300300300		27
Customization is available!
Optional	Crucible, Touchscreen, Software
Notes:	1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10deg.C/min. 2, Cooling rate no higher than 5deg.C/min. 3, Toxic or explosive gas is not allowed.
Warranty	One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered.
