Front-end preheating molybdenum sulfide preparation equipment
model:PT-400C

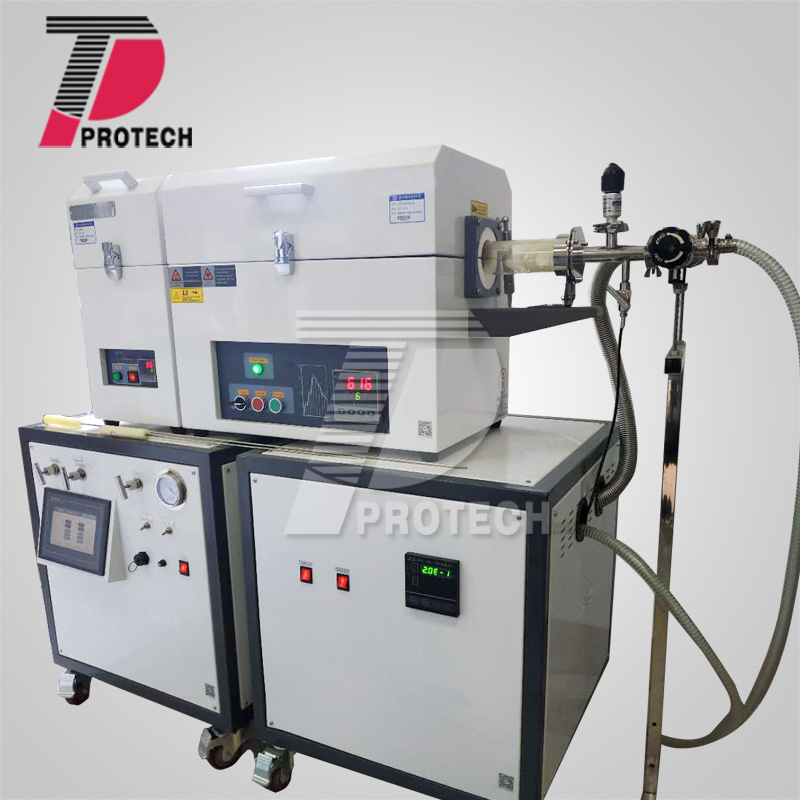

Front-end preheating molybdenum sulfide preparation equipment

    Application:  Graphene growth, carbon nanotube development, silicon nitride film deposition, two-dimensional material growth, crystal material battery electrode field.
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Main feature
　　The front end is equipped with a preheater that can be heated to 400 ° C to assist sulfur powder evaporation, and the rear end is a dual-temperature zone vulcanization furnace. The temperature control is accurate and the operation is simple. It is also equipped with an atmosphere fine-tuning device, which can accurately reflect the gas pressure inside the reaction chamber. The adjustment valve with scale is very practical for low pressure CVD and has good repeatability.

Technical parameter
Sulfur powder preheater
 		 model：PT-400C
working temp.：350℃
max. temp.：400℃
max. heating rate：30℃/min
suggested heating rate：10℃/min
temp. control：30 programmable segments for precise thermal processing
voltage：AC220 V
power：800W
temp. accuracy：±1℃
heating element：· Resistance wire, Fe-Cr-Al Alloy doped by Mo

Vulcanization furnace

power(KW):3
voltage(V):AC220v  50/60 Hz
max. temp.(℃):1200（1 hour）
working temp.(℃）：1100
heating rate（℃/min）：≤50
tube size（mm）：
Φ50×1200mm
heating zone length（mm）：440mm
（mm）:200mm
temp. control:l PID automatic control and auto-tune function.
l 30 programmable segments for precise thermal processing.
l Built-in protection for the over-heated and broken thermocouple.
Temperature Accuracy(℃):±1
Heating Element:Resistance wire, Fe-Cr-Al Alloy doped by Mo
gas supply system,GMF3Z
 		 （MFC）
weight：35Kg
overall size：600x600x650mm
Standard range（N2)：50sccm、200sccm、500sccm； （optional）
Accuracy：±1.5%
vacuum unit,VAU-02
 		  pumping rate：4Ls
ultiamte vacuum：5X10-1Pa
oil capacity：1.1L
Rotation rate：1450rpm
noise：50dB
overall size:600×600×600mm
