Application:

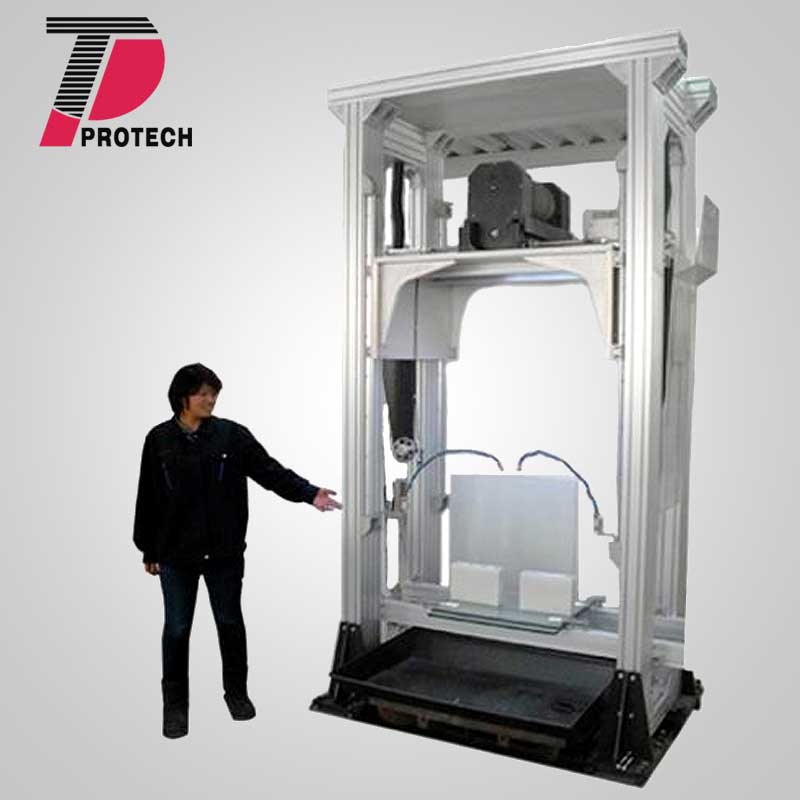

STX-2401 is a CE certified precision diamond wire saw. It is designed to provide smooth cutting or slicing for all kinds of materials (especially for larger size crystals, such as Si, CaF , glass and sapphire, etc.) with boule diameter up to 24" (600 mm). It cuts the crystal by a diamond impregnated wire (0.28 mm diameter) which moves back and forth repeatedly with the help of a digital controller. STX-2401 is equipped with an angle-adjustable sample holder.
Technical parameters:
|
Power Supply |
AC220 V, 50/60 Hz , 300W (110V is available with a transformer) |
|
Cutting speed |
Highest feeding speed: 60 mm/min
Lowest feeding speed: 0.001 mm/min |
|
Wire Moving Speed |
0 - 4 Meter/ second variable |
|
Controller |
6" color LCD touch screen control panel allows you to set the program to control the Moving Speed of the diamond wire, feeding
speed of the sample stage, the slicing thickness and coolant pump operation. |
|
Sample Stage |
The sample stage can move in the X-axis and rotate towards two directions (clockwise and counter-clockwise) for precision orientation. Max. Load Capacity: 600KG |
|
Diamond wire |
Ø 0.28mm x 65m Length |
|
Traveling Distance |
300mm (±0.01mm accuracy, both Z and Y axis) |
|
Cutting Area |
Ø600mm × 600mm |
|
Wire Tension |
Built in pneumatic valves can easily adjust the tension of cutting wire. (air pump with >20 PSI pressure is required ,
but not included) |
|
Cooling |
Circulating water/coolant system by two water pumps (include) |
|
Product Dimensions |
Wire saw: 1454 X1404 X 2490, mmController: 520mm x 40mm x 250mm |
|
Warranty |
Two year limited, not include the diamond wire and rusty parts |
|
Certification |
CE Certified |
STANDARD PACKAGE
|
Item No. |
Description |
|
1 |
screw-drivers 1set |
|
2 |
auto-tensed wheel 4pcs (2 has been installed on the machine) |
|
3 |
power cable 1pcs |
|
4 |
spool handle 1pcs |
|
5 |
hex-angle screw 4pcs |
|
6 |
leading wheel 4pcs (2 have been installed on the machine) |
|
7 |
spanner for wire-installer 1pcs |
|
8 |
triangle block 1pcs |
|
9 |
water splash guard cover for spooler 1pcs |
|
10 |
270 m diamond cutting wire (0.28mm) 2 pcs (1 on the machine) |
|
11 |
wire-installer 1pcs |
|
12 |
coolant circulating tank /pump 2pcs
|
