Detailed Parameters Of The Product
Application:

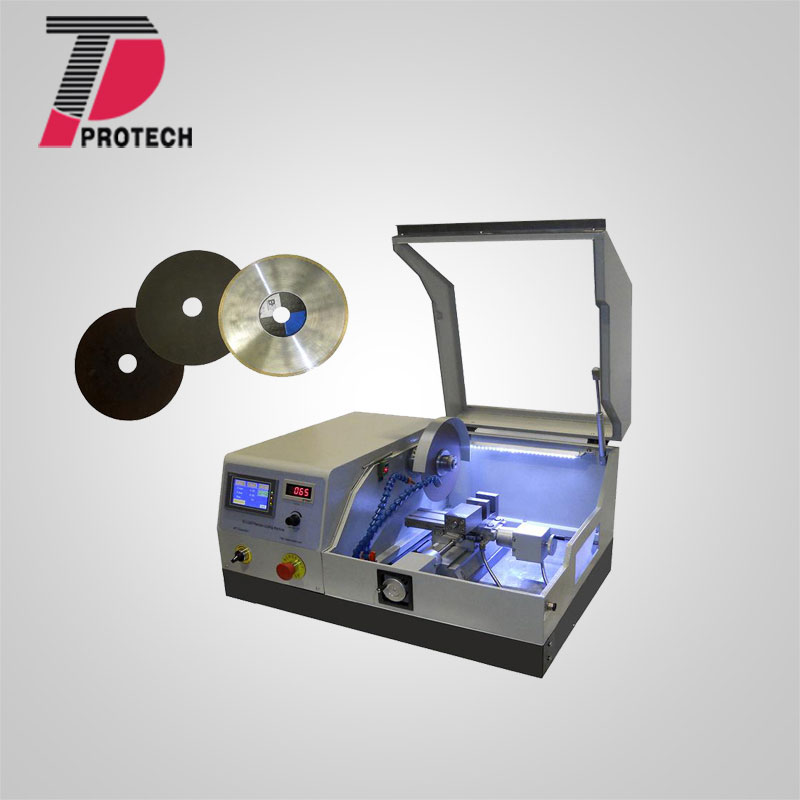

SYJ-200 is a CE certified automatic diamond saw is designed for precision cutting all type of materials up to 3" diameter. The saw is equipped with 8" diameter diamond blade and touch-push panel to achieve automatic control. It is the perfect cutting tool for metallurgical, ceramic and materials research laboratories
Technical parameters:
Voltage and Power |
-
208V-240VAC, 600W 50/60Hz
|
Motor & Spindle |
-
1 HP high torque DC motor.
-
1" dia spindle and 2" flange to accept 6 - 8" dia diamond blade.
-
Variable blade speed: 300-3500 RPM with screen touch control panel and digital display
|
Sample Stage & Controller |
-
Quick clamp is included to make sample mount easy and fast. (click picture below-lefy)
-
Automatic/manual control X and Y two axial motion via touch screen digitital panel ( click picture below right)
-
Programmable Y and X axis advancement via LCD panel to achieve automatic cutting with 0.01 mm precision.
X axis is for cutting feed which has Max. travel distance of 80 mm
and adjustable speed from 1.0 mm/ minute to 20 mm/minutes.Max. cutting deepth ( or sample height ) 65mm
Y axis is for controlling thickness of slices, which can be programmed up to 100 mm distance
|
Cutting Blade |
-
Three 8" cutting blades are included and completed accessaories are included for immediate use
One 8" Dia x 0.04" t x1.26" arbor SiC Blade for cutting non-ferous metal
one 8" Dia x 0.04" t x1.26" arbor Aluminum Blade for cutting ferous metal.
|
Water Cooling |
-
Adjustable nozzles is installed for re-circulating coolant
-
Protective splash cover with elec cooling duringtronic safety interlock installed
-
Click the picture below to order an optional 6L coolant circulating tank which perfectly connects to SYJ-200
|
Dimensions |
734mm x540mm x475mm. |
Shipping Weight |
Shipping weight: 365 lbs. |
Warranty & Compliance |
Two (2) Years Limited Warranty with life time support (not include the rusty part due to improper storage) |
Certification |
CE certified |
Application Note |
-
Must use anti-corrosion coolant during cutting to avoid rusting lead screw.
-
Please never use water as coolant during cutting. Always clean machine, especially the lead screw by W40 lubricant after each use.
-
Make sure the X,Y axes can move freely without blocking and rusting.
|
STANDARD PACKAGE
P/N |
Description |
Quantity |
SYJ-200-01 |
SYJ-200 Automatic Section Saw (AC~220V 50/60Hz 600W) |
1 |
SYJ-200-02 |
0~54 mm Bench Clamp (180 L x 85 W x 68 H mm) |
1 |
SYJ-200-03 |
Steel Plate for holding samples |
1 |
EQ-DB-153741 |
8" Dia x 0.025" t x1.0" arbor Sintered Diamond Blade |
1 |
EQ-SC-0801 |
8" Dia x 0.04" t x1.26" arbor SiC Blade |
2 |
EQ-SC-0801 |
8" Dia x 0.04" t x1.26" arbor Aluminum Blade |
2 |
SYJ-200-04 |
Blade Clamps (O.D 70 x I.D 25.4) |
1 |
SYJ-200-05 |
Blade Clamps (O.D 70 x I.D 32) |
1 |
SYJ-200-06 |
Wax rod for gluing samples |
4 |
EQ-GraphiteB |
Graphite blocks for sample holding |
2 |
EQ-WD40-Li |
WD-40 Smart Straw 16oz |
1 |
SYJ-200-07 |
A set of hexagonal screws (M3, M4, M5, M6) |
1set |
SYJ-200-08 |
Screw Drivers (Hex-head and "+" head) |
1set |
SYJ-200-09 |
Wrench (10#, 36#) |
1set |
SYJ-200-10 |
Water hoses (Ø8 x 2000 L mm) |
1 |
SYJ-200-11 |
Operation Manual CD |
1 |
SYJ-200-12 |
Fuse 10A/250V |
1 |
