High Energy Micro-Vibration Mill and Homogenizer with Zircon
model:MSK-SFM-12M-LD

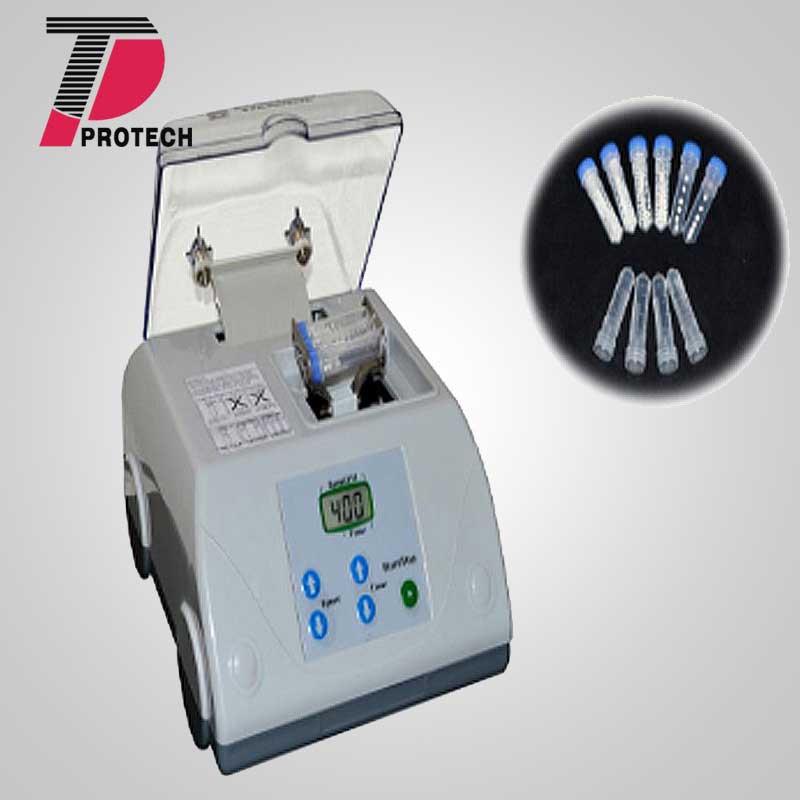

High Energy Micro-Vibration Mill and Homogenizer with Zircon

    Application:  Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, environmental protection and other departments. It is an ideal equipment for scientific research, experimental production and material research.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:U59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    MSK-SFM-12M is a high energy Micro-Vibration Mill & homogenizer that sets the performance standard for small quantity milling and mixing. Simultaneous homogenization of up to 3 samples at 2 ml tube takes place (often within 45 seconds) inside the disposable 2ml screw cap microtubes. The optimized mixing motion causes rapid milling through constant high velocity impact from the hardened micro-beads chosen specifically for your sample type. Developed for samples too tough to be homogenized in a common lab vortexer, MSK-SFM-12M provides a convenient and economical alternative to the traditional, over-priced homogenizers on the market today.U59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
U59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:U59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Working Voltage
  • 110 - 240VAC 50Hz, US plug
  • (208-240VAC version will included 60W transformer at $10 extra cost)
Vibration Speed 2700 to 4000 rpm adjustable
Timer 0 -- to 60 minutes adjustable
Capacity 3 x 2.0ml tube can be loaded on the device simultaneously
Tube 6 Prefilled Tube Kits and 4 empty tube kits (non-skirted with caps)
Grinding media
  • Three types of PureHigh Impact Zirconia Beads are included for rapid milling
  • Ø0.5mm (0.5g) & Ø1.5mm (0.5g) & Ø3mm (1g)  Zirconia Beads
  • Extra zirconia ball is available upon request at extra cost
Dimensions
  • 6.9 x 8.3 x 5.3 in.
  • 17 x 21 x 13.5 cm
Net Weight 5 lbs / 2.2kg
Warranty Two years limited warranty with lifetime technical support
 U59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
STANDARD PACKAGEU59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Name Qty.
MSK-SFM-12M Milling Machine 1
2ml tube 10
Backup screw 1set
Spring 2
Fuse 1
Ø1mm Milling Media ball Total 0.5g
Ø1.5mm Milling Media ball Total 0.5g
Ø3mm Milling Media ball Total 1gU59Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
