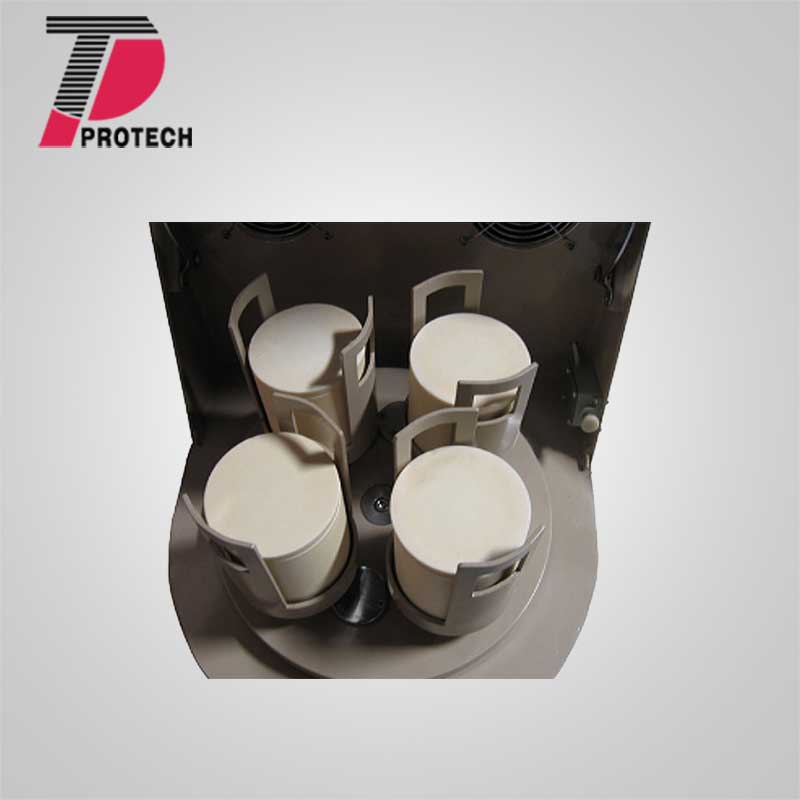

Bench-Top Planetary Ball Mill with 4 Alumina Jars (500mL)
model:MSK-SFM-1

Bench-Top Planetary Ball Mill with 4 Alumina Jars (500mL)

    Application:  Widely used in geology, minerals, metallurgy, electronics, building materials, ceramics, chemicals, light industry, medicine, environmental protection and other departments. It is an ideal equipment for scientific research, experimental production and material research.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:J84Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
    MSK-SFM-1 (upgraded from EQ-SFM-1) is a Planetary Ball Mill designed for mixing, fine grinding, and preparing small volume high-tech material production, which features with small volume, high efficiency, low noise . If mated with optional vacuum jar, it can grind samples in vacuum or inert gas. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc. MSK-SFM-1 has four ball grinding tanks installed on one turning plate. When the plate rotates, the tank axis makes planetary rotation in opposite directions and the balls in the tanks grind and mix samples in high speed movement. The product can smash and blend various products of different materials and granularity with dry or wet methodsJ84Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
J84Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:
J84Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
J84Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Working Voltage
  • 206 - 240V AC (single phase), 50/60 Hz
  • 220V AC Power plug is not included.
Max. Power Consumption 500W
Speed control Variable by changing frequency of AC motor
Rotary Rate Main plate rotation: 30-350 rpm J84Muffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
  • Mixing tank self rotation: 60-700 rpm
Digital display
  • Digital display the speed in rpm
  • Timer controls major platen's running time from 1 to 999 minutes
  • Timer control tank rotation time from clockwise to anticlockwise direction: 1-99 minutes
 Tank (Jar) O-ring can be inserted between the lid and jar for wet grinding (ID:90mm, OD:104mm)
Sieves
  • 1 pcs 14 mesh for separating samples is included
  • In order to mill efficiently, material particles shall be less than 14 mesh (1.12mm)
Warranty
  • One year limited warranty with lifetime support
  • Consumable parts, such as Al2O3 jar and grinding ball, are not covered by the warranty
Compliance CE Certified
Production Dimensions 450mm(L) x 490mm(W) x 530mm(H)
Net Weight 100 kg (220 lbs)
 Application NotesApplication Notes
  • SS304 mixing jar is suitable for grinding various metal materials
  • For milling the oxide material, please choose alumina/zirconia jars and media
  • Must place 4 jars or 2 in symmetrical with similar weight in the ball mill to keep balance during rotation, otherwise unbalance rotation, especially one jar, may damage the machine
  • DO NOT USE stainless steel balls in Alumina jars. Alumina jars are not included in the warranty
Shipping Dimensions 48"(L) x 40"(W) x 42"(H)
Shipping Weight 410 lbs
