Mini (3") Automatic Grinder/ Polisher with Complete Accesso
model:EQ-Unipol-300

Mini (3") Automatic Grinder/ Polisher with Complete Accesso

  • temperature:
    • 1200
    • 1400
    • 1700
  • chamber size:
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:

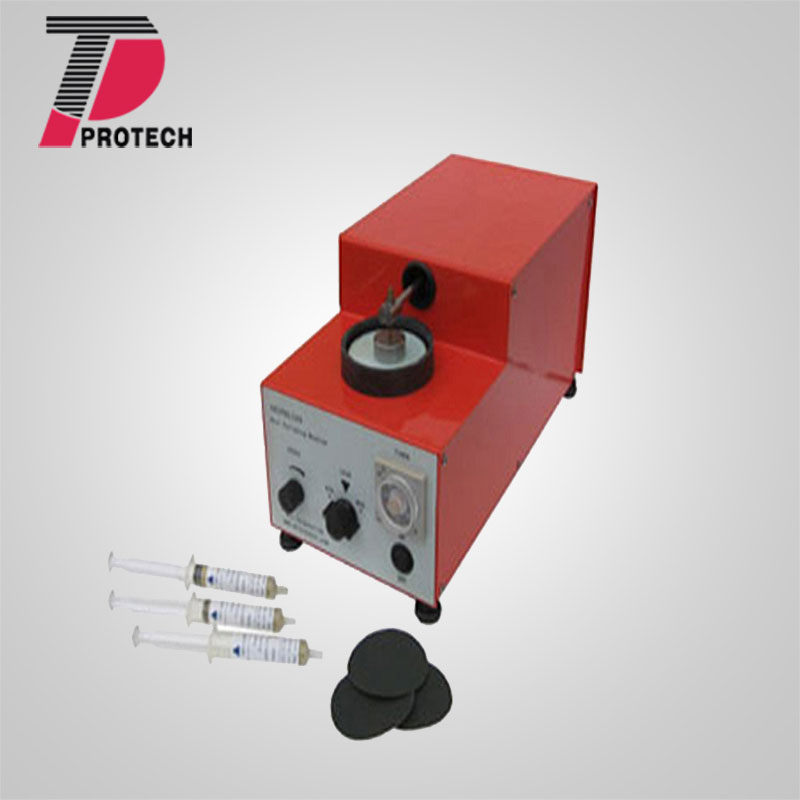

EQ-Unipol-300 is an automatic mini-grinder / polisher for preparing TEM, metallographic samples in a single mount. The machine equips with many advanced features, such as 3" fix lapping plate, variable sample moving speed, adjustable pressure load and selectable time switch to achieve attention free polishing. Unipol 300 simulates human hand to grind and polish sample via randomly moving sample holder on top versus fixed 3" plate. It is very suitable for preparing < 1" dia specimen in low volume laboratory for material research, failure analysis and medical test. By combining our SYJ-150 low speed saw, you can own a processing lab on one desk to prepare versatile specimen at an affordable budget.
Technical parameters:
Power AC 110V and 220V selectable for worldwide operation.
Max. Moving Weight of Specimen 200g
Max. sample size 25 mm dia.  x  20 mm H
Features

3" glass lapping plate ( front & back )
  • Easy to use and affordable.
  • Variable moving speed for the sample holder on top.
  • Adjustable pressure load by a spring inside from 0-5 Newton.
  • Automatic timer setting from 0 to 99 hours.
Overall Dimensions 420mm L x 190mm W x 210mm H
Net Weight 24 lbs
Package Dimensions 18" x 11" x 9"
Shipping Weight 32 lbs
Compliance CE Certified
Warranty
  • One year limited warranty with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty




 P/N Item Name  Qty.
EQ-Unipol-300  EQ-Unipol-300 Grinding / Polishing Machine 1
UP-300-02 Rubber polishing bowl 1
UP-300-03  3" glass lapping plate 1
UP-300-04 1" dia. sample holder for flat sample 1
UP-300-05  1" dia. sample holder for inserting bulk sample 1
UP-300-06 AC power cord 1
UP-300-07 1 set of 3 syringes (10g) diamond paste with 0.25, 1.0, and 3.0 micron grit  1 set
