model:PT-JS446

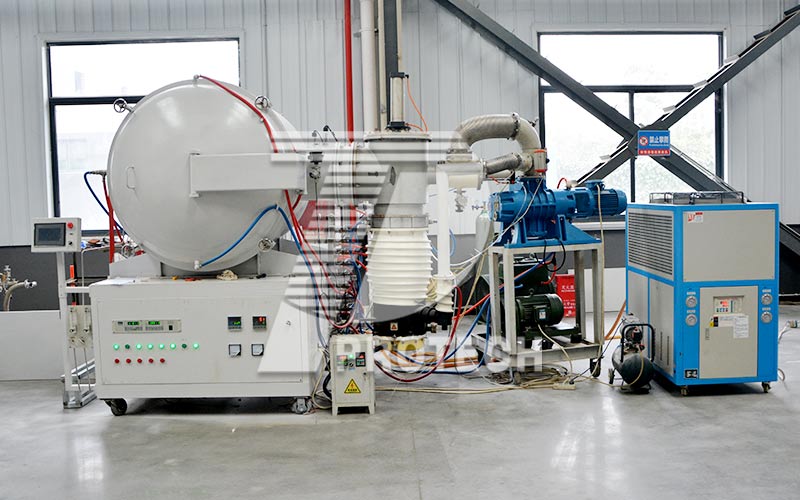

Stainless steel bright annealing vacuum furnace
Application: Stainless steel bright annealing furnace application scope: bright annealing of tool steel, die steel, ultra-high-strength steel, high-temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals and other materials. ...It is widely used in heat treatment and material research in industry, industrial and mining enterprises, universities and laboratory research laboratories.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product
Description: Stainless steel bright annealing vacuum furnace application scope: bright annealing of tool steel, die steel, ultra-high-strength steel, high-temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals and other materials. ...It is widely used in heat treatment and material research in industry, industrial and mining enterprises, universities and laboratory research laboratories.OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Applications:OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Bright annealing of tool steel, die steel, ultra-high strength steel, high temperature alloy steel, stainless steel, magnetic materials, titanium alloys, non-ferrous metals, etc.OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Product features:OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. The rotary vane pump, diffusion pump and Roots pump set achieve high vacuum to ensure the processing quality of the workpiece.OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. The heating elements are evenly arranged to ensure the uniformity of the furnace temperature.OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. Metal molybdenum heating, stainless steel insulation, and high furnace cleanlinessOtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. The touch screen interface is friendly and practical. It can display and monitor the operating status of the equipment, call, edit and store the sintering process, and has dynamic display, historical data can be recorded and exported.OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. With safety interlock, fault diagnosis and abnormal alarm functionsOtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
OtcMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical Parameters:
| Model |
PT-JS223 (optional) |
PT-JS334 (optional) |
PT-JS446 |
PT-JS557 (optional) |
PT-JS669 (optional) |
| Heating area (mm) |
200×200×300 |
300×300×400 |
400×400×600 |
500×500×700 |
600×600×900 |
| Heating power (Kw) |
25 |
50 |
75 |
95 |
150 |
| Maximum temperature (℃) |
1350 |
1350 |
1350 |
1350 |
1350 |
| Ultimate vacuum (Pa) |
10pa, 6.7×10-3pa |
| Heating element |
Metal molybdenum belt |
| structure |
Single indoor thermal horizontal structure |
| Heating rate |
0-20℃/min |
| More specifications can be customized according to requirements |
