Brief Description:

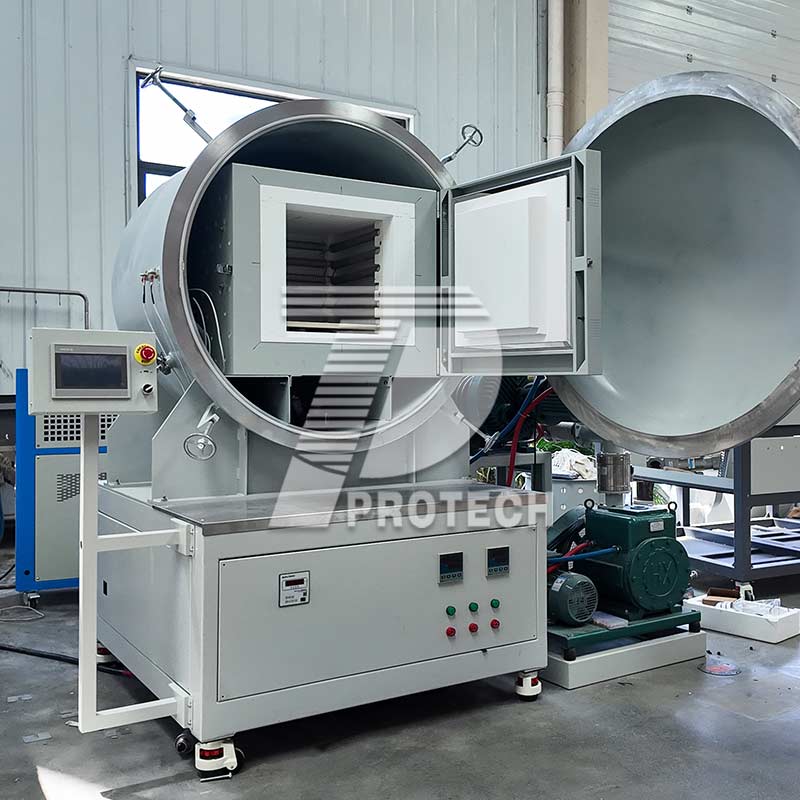

PT-V Series vacuum sintering furnace comprises a high-temperature furnace, a vacuum pump system and a precise pressure gauge.
Parameters:
| Model | PT-V1200 | PT-V1400 | PT-V1700 |
| Max. Temperature | 1200℃ | 1400℃ | 1700℃ |
| Working Temperature | 1100℃ | 1200℃ | 1600℃ |
| Heating Rate | 0-20℃ | ||
| Heating Element | Resistance Wire | SiC Heating rod | MoSi2 heating rod |
| Thermocouple | K-type | S-type | B-type |
| Insulation Material | Alumina ceramic fiber / molybdenum plate | Alumina ceramic fiber / molybdenum plate | Alumina ceramic fiber |
| Temperature Accuracy | ±1℃ | ||
| Power Supply | 110-415V，50/60Hz | ||
| Vacuum degree | 6.67x10Pa/6.67x10-3Pa | ||
| Outside tank | Cooled by fans / water | ||
| Heating Chamber Size mm |
Capacity L |
Heating Chamber Size mm |
Capacity L |
| 150*150*150 | 3.4 | 300*300*400 | 36 |
| 150*150*200 | 4.5 | 350*350*350 | 43 |
| 200*200*200 | 8 | 400*400*400 | 64 |
| 200*200*300 | 12 | 400*400*500 | 80 |
| 300*300*300 | 27 | 500*500*500 | 125 |
| Optional | Crucible, Touchscreen, Software | ||
| Notes: | 1, In order to ensure the longest possible service life of furnace parts, we recommend heating rate no higher than 10deg.C/min. 2, Cooling rate no higher than 5deg.C/min. 3, Toxic or explosive gas is not allowed. 4, It is normal that there will be tiny cracks on the wall of the heating chamber, they won’t affect the performance of the furnace, and can be repaired with alumina coating. |
||
| Warranty |
One year warranty with life-time technical support. Special notes: 1, Consumables like heating element, quartz, crucible and so on are uncovered. 2, Man-made damage and damage caused by misuse are uncovered. |
||
We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!
We provide 24/7 hours global online service, one-stop customized service, welcome to consult.
