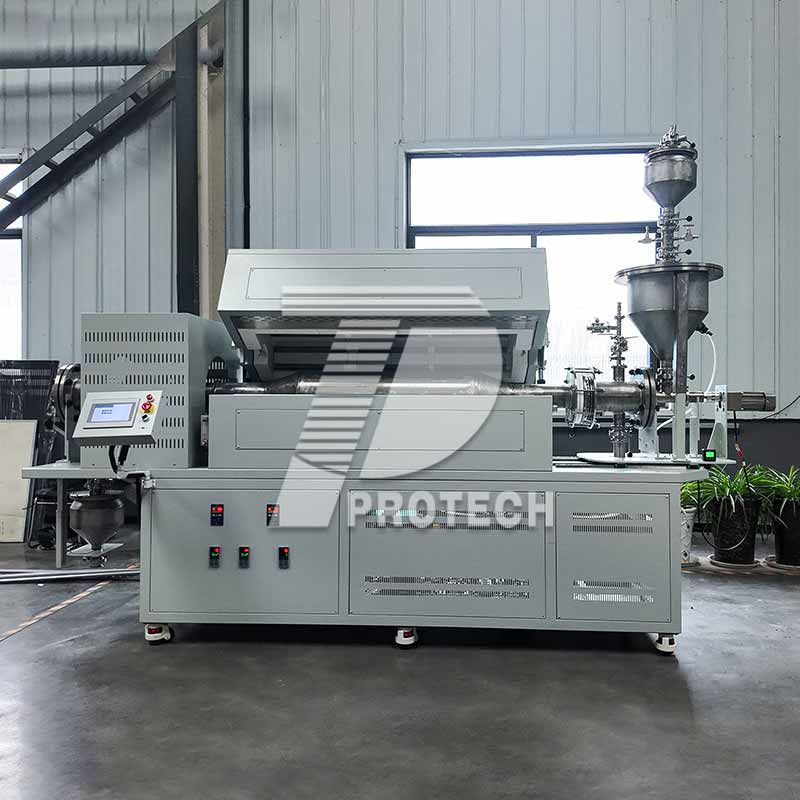

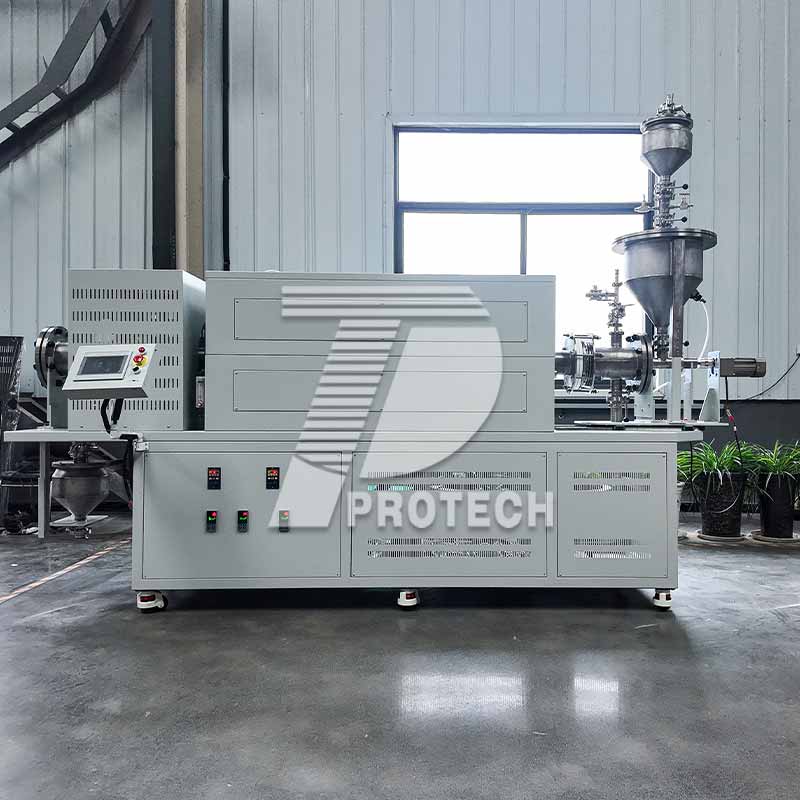

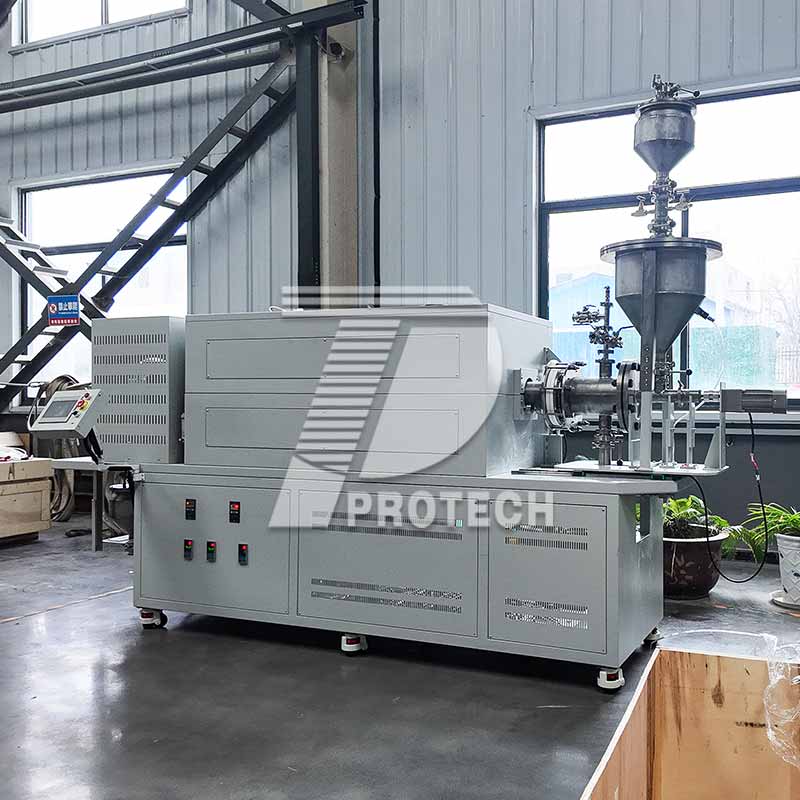

| Model | PT-TX650-H273LK3W |
| Shell structure | Double-layer shell, equipped with air cooling system, electrostatic spraying to effectively prevent rust |
| Tube material | TA2 |
| Tube size | Customized variable diameter furnace tube (can be customized according to customer needs) |
| Sealed structure | Metal rotating parts are installed at both ends of the furnace tube to achieve relative sealing. Valves and mechanical pressure gauges are installed to monitor the pressure inside the tube in real time. Inlet and outlet ports are reserved. |
| Air inlet and outlet | Reserve 1 air inlet and 3 air outlets |
| Number of temperature zones | 3 temperature zones, each temperature zone has independent temperature control, no partition between temperature zones |
| Chamber material | High purity alumina refractory fiber |
| Heating element | External high-quality resistance wire, circular arrangement |
| Temperature zone length | Total length: 1400mm N-type thermocouples, three temperature-control thermocouples for more accurate temperature control |
| Temperature | Max.temperatrue:650 ℃ Working temperature:≤500℃ |
| Temperature control method | Utilizes a PID controller with intelligent 30-segment programmable control. Equipped with a touchscreen, sintering data can be recorded at set intervals and exported to Excel. |
| Ultra-high temperature alarm | With ultra-high temperature alarm |
| Broken partner reminder | With broken partner reminder |
| Heating rate | 0--10℃/min |
| Furnace door structure | Electric upper opening |
| Tilt angle | Adjustable from 0 to 25 degrees |
| Furnace tube rotation | Furnace tube 3-5 rpm (adjustable) |
| Mobile box | The lower box is equipped with universal wheels and directional wheels, making the whole equipment easy to move. |
| Inlet and outlet | Feeding and discharging: 20L volume, continuous and quantitative feeding and discharging. Easy assembly and disassembly. The sealing flange is used with dynamic and static sealing devices for easy assembly and disassembly, and can be charged with protective gas. |
| Gas supply | Equipped with a float flow meter, nitrogen range to be determined |
| percussion hammer | The feed bin and the furnace tube discharge end are each equipped with a vibration device |
| Visible window | According to the actual situation, install an observation port at a suitable location to see the internal material situation |
