model:PT-TX1000-H159CK3

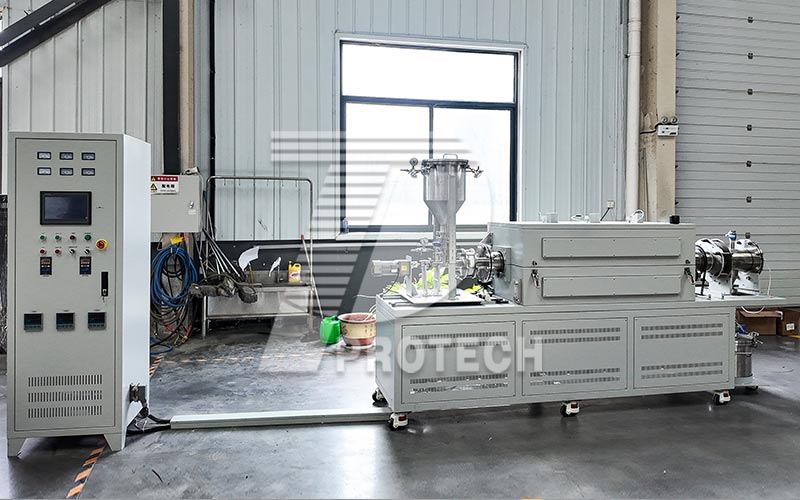

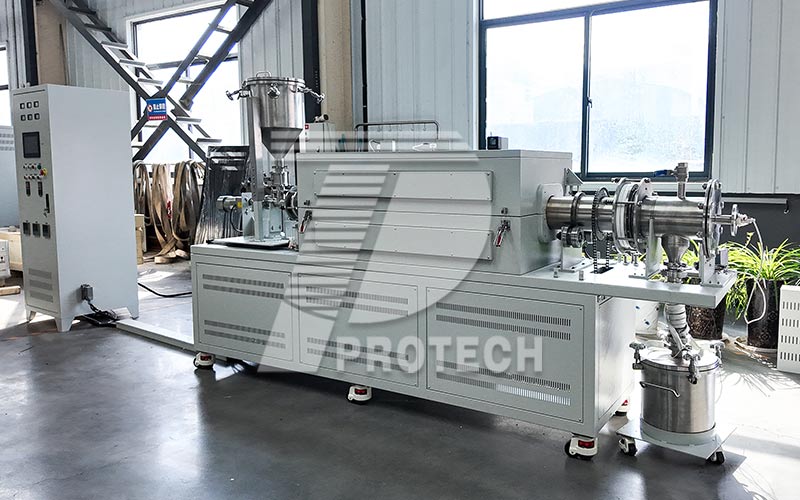

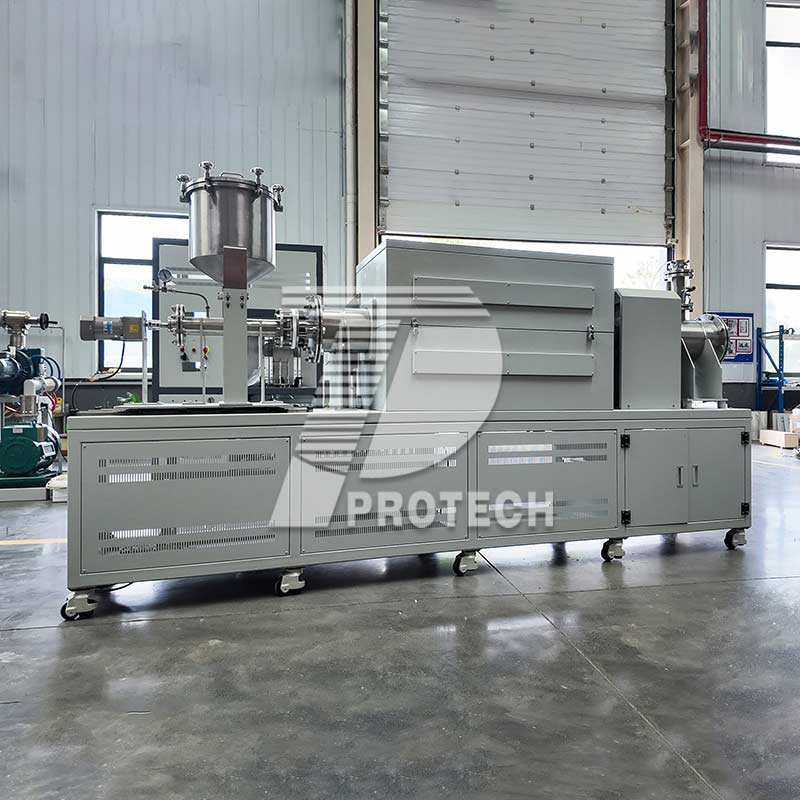

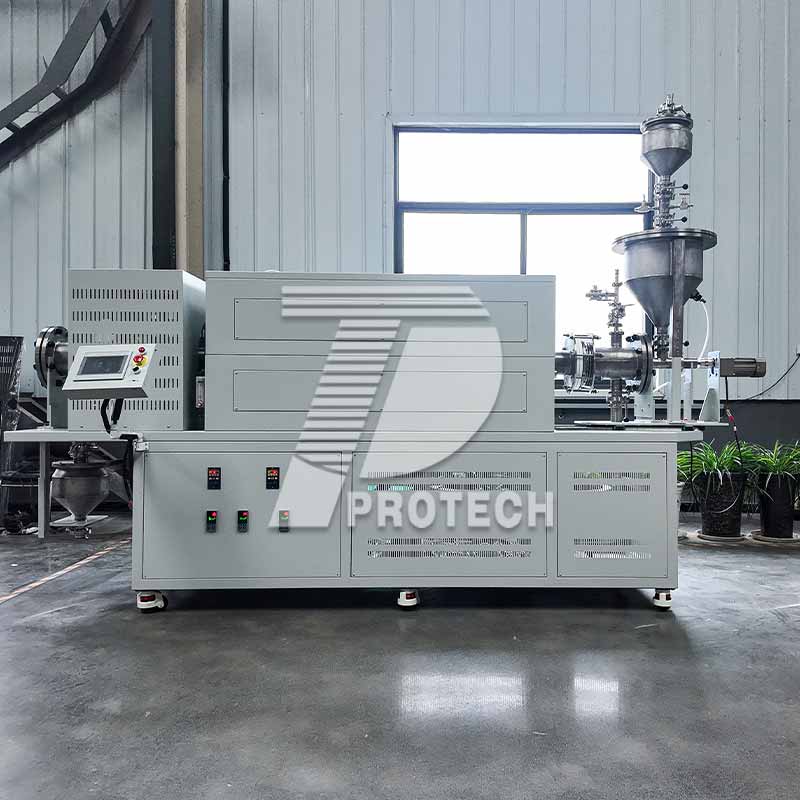

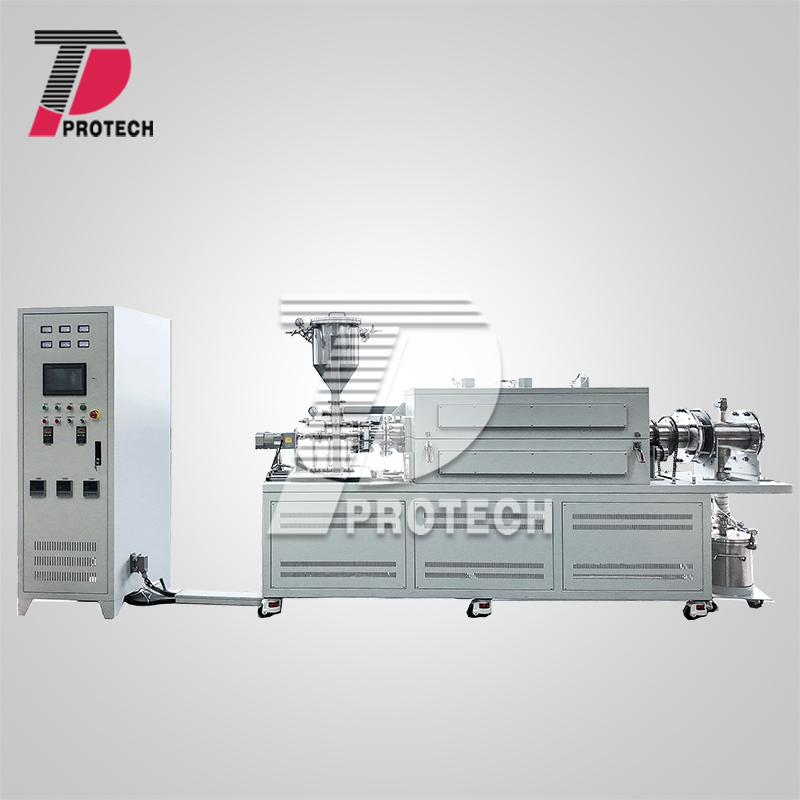

Continuous Feeding and Discharging Rotary Tube Furnace
Application: This continuous feeding and discharging rotary tube furnace is suitable for the experiment and production of fine particle powder materials such as metal oxides or other inorganic materials.
Contact us for customize
send-email:
info@lab-furnace.com
Detailed Parameters Of The Product

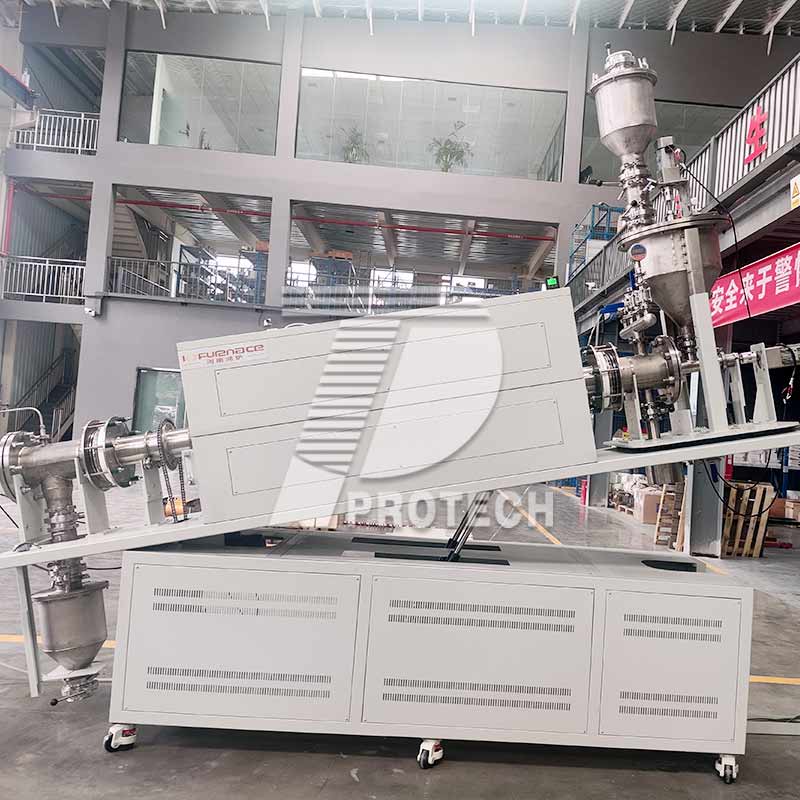

Introduction:QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThis Protech continuous feeding and discharging rotary tube furnace is made into an adjustable tilt angle, and the angle is adjusted by electric or hydraulic support (electric or hydraulic adjustment is selected according to the weight of the entire furnace body). The discharging speed is adjusted by adjusting the tilt angle. The rotary tube furnace adopts a spiral feeding method, and the speed reducer, motor, and speed control system are used to control and adjust the rotation speed of the spiral to achieve the speed of material entry. It is easy to open. The furnace tube adopts 310S metal furnace tube, which can rotate 360℃. The heating element adopts high-quality alloy heating wire, which has a fast heating rate, high temperature resistance, oxidation resistance, corrosion resistance, and fast heating; intelligent PID 30-stage program temperature control, high temperature control accuracy; sealing flange, good sealing ring performance, professionally used for laboratory calcination and drying of battery positive and negative electrode materials, non-strong acid and alkaline powder materials, and granular materials. Users can choose to burn under vacuum or atmosphere protection according to the materials to be burned.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacApplication:QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacThis continuous feeding and discharging rotary tube furnace is suitable for the experiment and production of fine particle powder materials such as metal oxides or other inorganic materials. It is a continuous production equipment for sintering and calcining particle powders in powder metallurgy, ceramics, refractory materials, lithium battery positive and negative electrode materials, new energy and other industries, and measuring materials under certain atmosphere conditions.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere FurnacFeatures:QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac1. The heating element adopts high-quality alloy heating wire, which has good furnace heat preservation performance, durability, high tensile strength, no impurities, high purity and very good energy saving effect.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Equipped with feeding and discharging device and feeding and discharging bin, it is convenient for users to take and discharge materials.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. The heating area adopts a three-temperature zone design, with a total length of 1000mm. It is easy to operate, reliable in sealing, and has high comprehensive performance indicators.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. The furnace tube is made of customized 310S metal tube. During the heating process, the furnace tube can rotate 360° to move the material so that the material can be heated more fully, and the rotation speed is adjustable.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Adopting touch screen operating system, heating is operated on the touch screen, temperature data can be stored and output, and the operation is simple and convenient.
QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac Specification:
| Product name |
Continuous feeding and discharging rotary tube furnace |
| Model |
PT-TX1000-H159CK3 |
| Chamber material |
alumina polycrystalline fiber |
| Tube size |
Diameter Φ159mm*2300mm (Can be customized according to customer needs) |
| Heating zone |
Three temperature zones.QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Total length of heating zone 1000mm |
| Tube material |
310S Metal tube |
| Working temperature |
≤950℃ |
| Max. temperature |
1000℃ |
| Heating element |
High quality alloy heating wire |
| Temperature control accuracy |
±1℃ |
| Heating rate |
0-20℃/min，10℃/min is recommended, which can be adjusted according to the experimental process |
| Temperature test element |
Three N-type thermocouples |
| Temperature control system |
LCD touch screen operation, intelligent multi-stage PID programmable controlQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
The temperature control system adopts artificial intelligence adjustment technology, has PID adjustment, self-tuning functions and can compile multi-stage temperature rise and fall programs;QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
1. Use PID to adjust temperature control, and can set multi-stage temperature rise and fall programsQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
2. Temperature control accuracy ±1ºCQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
3. Over-temperature protection and broken couple protection. The electric furnace heating circuit is automatically cut off when over-temperature or broken couple is overheatedQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
4. The instrument has the function of temperature self-tuningQdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
5. Touch screen operation, data can be output and stored |
QdjMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

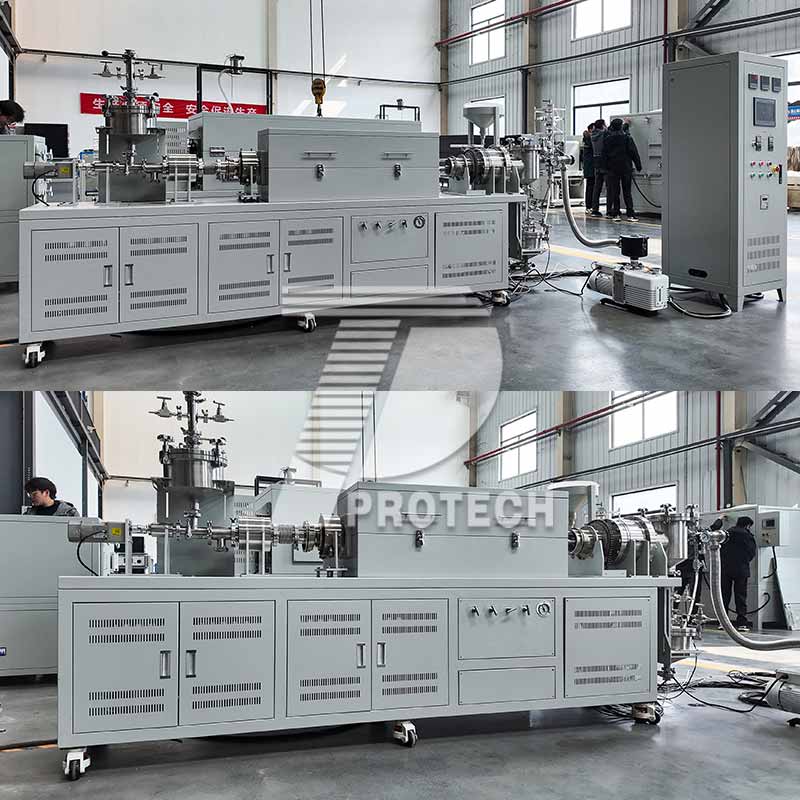

Furnaces customized according to customer needs: Fully automatic loading and unloading rotary tube furnace series:
