Bell Atmosphere Furnace with Glove Box
model:PT-A1000-E450-DZ

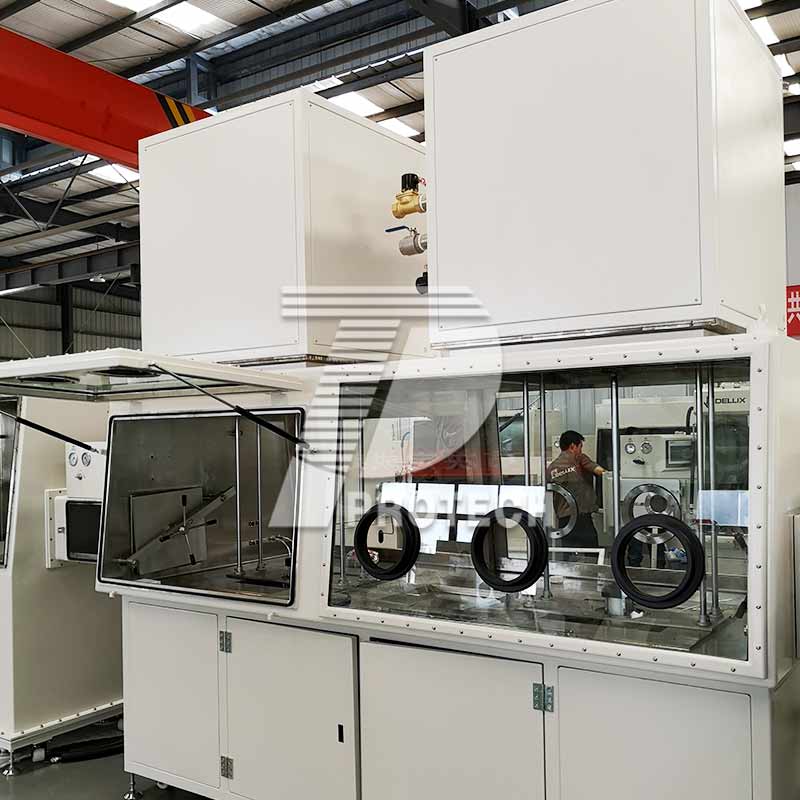

Bell Atmosphere Furnace with Glove Box

    Application:  The Bell Atmosphere Furnace with Glove Box system is particularly suitable for materials that are sensitive to air/moisture (such as lithium metal, sulfide, active alloy, etc.) and is widely used in new energy, semiconductors, advanced ceramics and other fields.
Contact us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
sieMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Introduction:sieMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Bell Atmosphere Furnace with Glove Box is a highly sealed heat treatment equipment that combines a bell-shaped heating furnace and an inert gas glove box to complete high-temperature treatment, sintering or reaction experiments of materials in an oxygen-free and water-free environment. The system is particularly suitable for materials that are sensitive to air/moisture (such as lithium metal, sulfide, active alloy, etc.) and is widely used in new energy, semiconductors, advanced ceramics and other fields.sieMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac

Glove Box Integrated Bell Jar Furnace
sieMuffle Furnace,Tube Furnace,Vacuum Furnace,Atmosphere Furnac
Technical parameters:
Product name Bell Atmosphere Furnace with Glove Box
Model Non-standard customized (PT-A1000-E450-DZ)
shell structure Double air cooling
Number of heating chambers 2 each heating chamber has an independent control system
Effective size of heating chamber Diameter 400*450 Height mm
Refractory Alumina refractory fiber
Heating zone material Stainless steel
Woking temperature Continuous working temperature is less than or equal to 600°C; maximum temperature: 800°C
Temperature control method 7-inch touch screen, PID controller, intelligent 30-segment programmable control
Heating rate 0-10℃/min
Over temperature alarm With over temperature and broken couple alarm function
Heating element Molybdenum resistance wire
Thermocouple K-type thermocouple temperature measurement
Furnace door opening method Bottom automatic control lift
Furnace door seal Furnace mouth installation sealing silicone strip
special requirements The atmosphere furnace requires a sealed connection to a specific glove box
Glove box bracket from ground 950mm(height adjustable)
Station There are multiple operating stations, single-sided operation
Glove box material 304 stainless steel, thickness 5mm
Working power 380V     Three-phase   50HZ
