model:PTH-600C

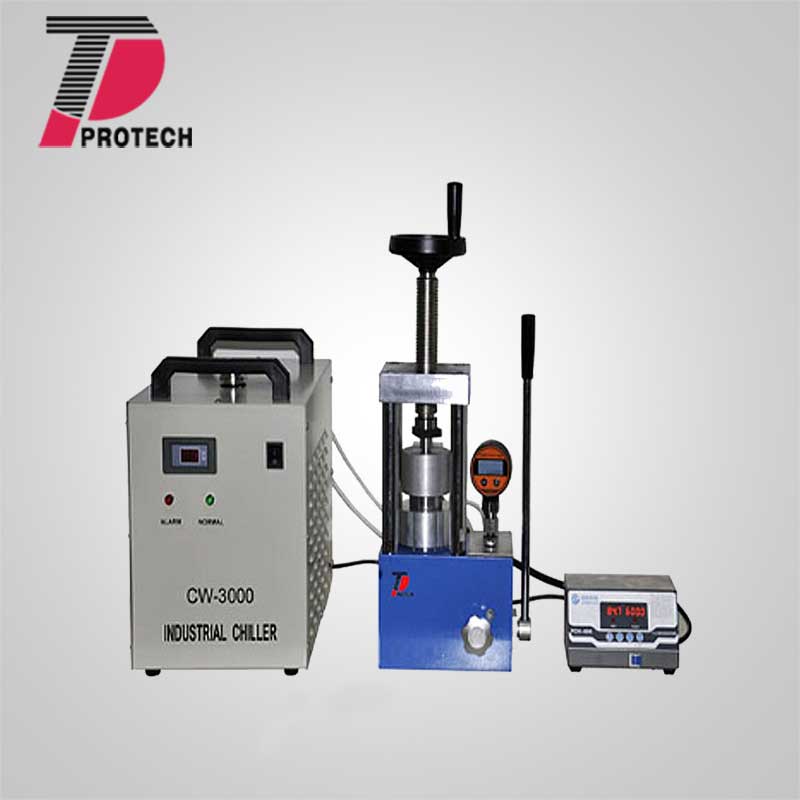

Integrative cylindrical Hot Press Machine

  • temperature:
    • 1200
    • 1400
    • 1700
  • chamber size:
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:
Using a unique vacuum hot pressing system, the bond synthesis power can be greatly increased without damage to the chip.
Technical parameters:
Model PTH-600C
Temperature Control Range -600℃
 Heating Temperature Circular Heating
Temperature Control Accuracy 0.1℃
Temperature Overshoot 200℃ above  ≤1℃
Heating Rate 5-10℃/min
Cooling Way Water-cooling
Decreasing Rate 5-10℃/min
Power 220V/500W
Pressure Range 0-15T/24T
Integrative Structure Mainboard,Oil Pool,Oil Cylinder with no seal structure
Diameter of Oil Cylinder Chrome plated cylinders φ80mm/φ95mm
Max. Travel Distance of piston stroke 30mm
Digital Pressure Gauge 0.1-30MPa
Worktable Diameter 140×140mm
Working Space 80×80×130mm
Pressure Stability ≤1MPa/10min
Machine Dimensions 260×190×460mm
Weight 70kg
