15T Miniture CIP (Cold Isostatic Pressing) with Protection
model:CIP-15

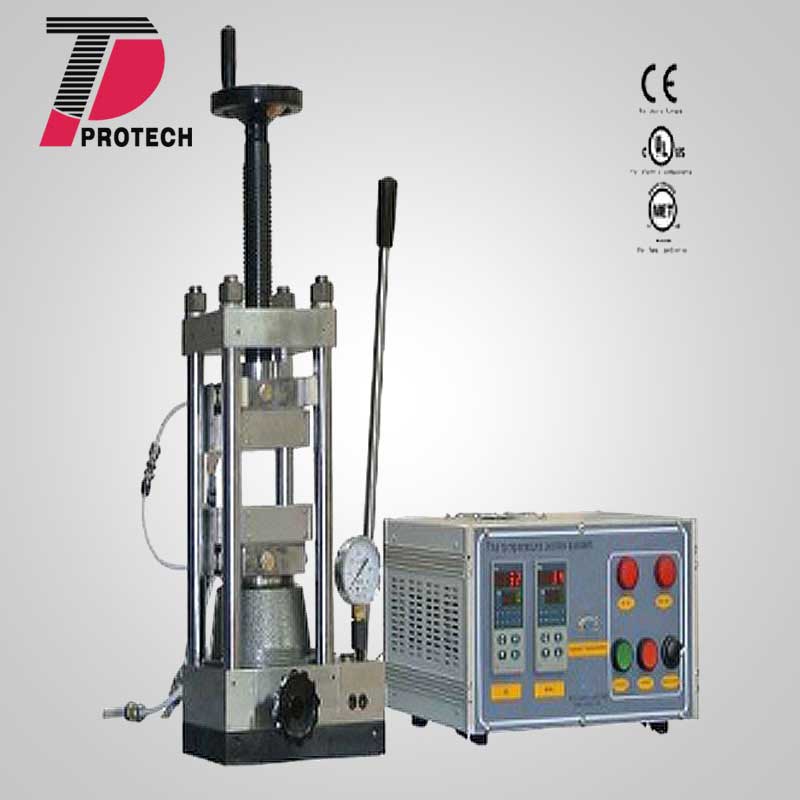

15T Miniture CIP (Cold Isostatic Pressing) with Protection

  • temperature:
    • 1200
    • 1400
    • 1700
  • chamber size:
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:
CIP-15 is the smallest cold isostatic presser (CIP) in the world. It has a 22mm ID x90mm hydraulic chamber made by ultra strength alloy , which can provide isostatic hydraulic pressure up to 300MPa via a 15T presser. It is excellent CIP for material research lab to prepare high density compound sample at easy. CIP-15 has small footprint and can be placed in glove-box to prepare air-sensitive materials. A plastic protection cover is included.
Technical parameters:
Model 15T Miniture CIP (Cold Isostatic Pressing) with Protection Cover - CIP-15

Pressure Chamber Size 22mm dia. x 90mm Height
Max. Hydraulic Pressure in Chamber 300 Mpa ( 43500 PSI)
Hydraulic Machine 15 T
Operation Temperature 10 - 40°C
Dimention of Working Space D1: 98mm
 D2: 87mm
 H1: 152.4mm
 H2: 140mm
Overall Dimension  (including 15T Presser)  260 L x 210W x 500H, mm
Net Weight  90 Lbs
Warranty One year
