model:CIP-50A

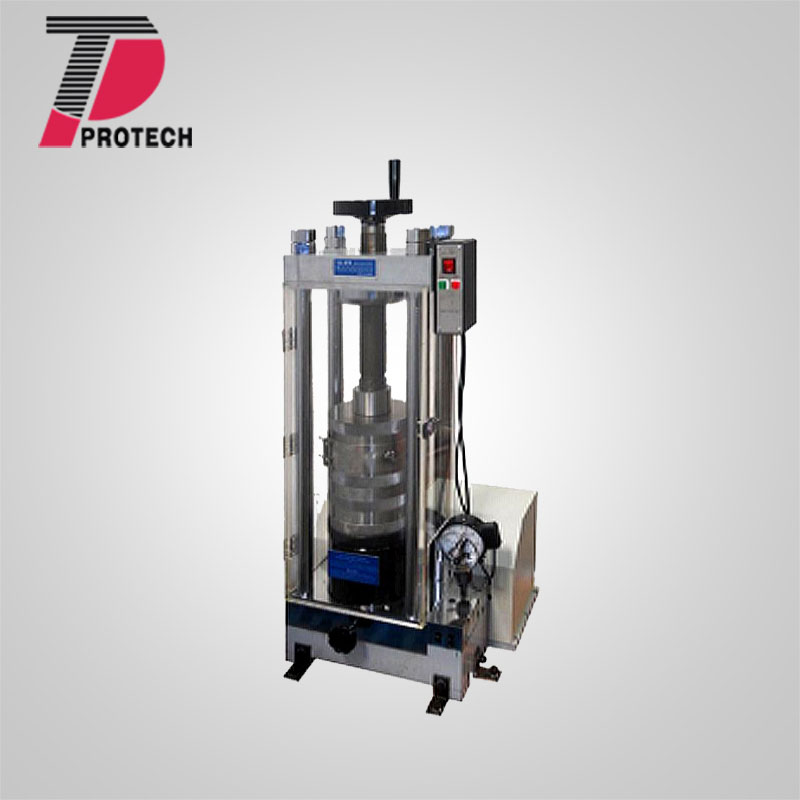

50T Electric Cold Isostatic Pressing(CIP) Machine - CIP-50A

  • temperature:
    • 1200
    • 1400
    • 1700
  • chamber size:
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:
CIP-50A is a electric cold isostatic pressing (CIP) machine operated manually with 50mm ID x 150mm H chamber up to 50 metric tone. It is excellent tool for preparing high density ceramic rod, disk or target.
Technical parameters:
Model 50T Electric Cold Isostatic Pressing(CIP) Machine - CIP-50A

Voltage AC 208~240V, 50/60Hz
Power 330W
Hydraulic cylinder pressure 0 - 50 T
CIP chamber size 50 Dia. x 150H, mm
Chamber Pressure 0 - 250 MPa
Pressure Stability 1MPa  / 5min
Dimension of Machine  450 (L) X 420(W) X 1010 (H), mm
Net Weight  200 Kg
Warranty One year

  Name Qty
1 Main machine (50T Electric hydraulic pressing machine) 1 unit
2 CIP pressing die 1 set
3 Seal kit (for top pressing die) 5 pc
4 Holding bar (for carrying the CIP pressing die) 2 pc
5 Pressing oil 1 bottle
6 Hex-socket wrench (for top pressing die and degassing) 1 pc
