Microwave muffle furnace
model:PTiLab-C1500

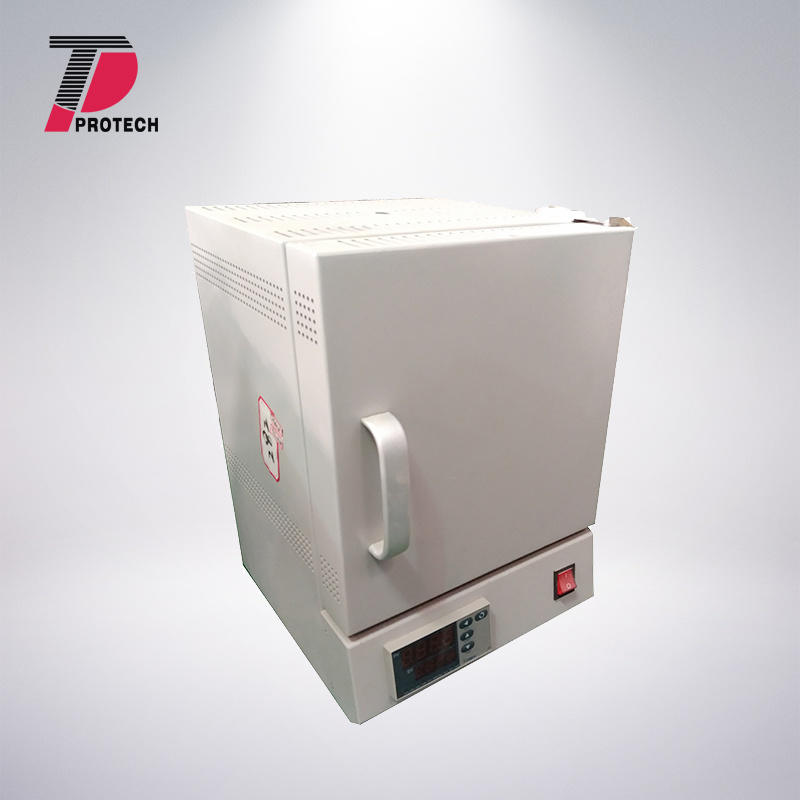

Microwave muffle furnace

  • temperature:
    • 1200
    • 1400
    • 1700
  • chamber size:
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product

Description:
Claiming / synthesis of powder or particle materials: Electronic ceramic powders: barium titanate, barium-strontium titanate, strontium titanate, barium zirconate titanate;Lithium ion battery anode materials:lithium cobaltoxide, lithium manganate;Various colorants, glaze material, inorganic pastel; Alumina, magnesium oxide, zinc oxide, manganese dioxide, manganous-manganicoxide, zirconia, ammonium metavanadate,vanadium pentoxide, titanium dioxide, zinc carbonate, manganese carbonate, aluminum hydroxide, magnesium hydroxide, lithium cobaltoxide, zinc ferrite, Tri-chromatic rare earth fluorescent powder (Red), cement.

Description of microwave muffle furnace

PTiLab-C1500 is our 3rd generation high temperature microwave laboratory system. PTiLab-C1500 is a sophisticated upgrade to traditional muffle furnaces, with the high level of accuracy, control, and speed that are customary in systems. Drying, binder burn-out, synthesis and sintering of powder and solid materials, metals, and glass can be completed in this system in a 3-4 hour period.  PTiLab-C1500 was designed to increase the productivity of solid state laboratories from one set of samples to 3-4 sets of samples per day, without having to continuously run the system during periods of inactivity.

Technical specification

Technical specification

Model

PTiLab-C1500

Voltage

AC 220 plus/minus 10V/  50Hz,

Rating power

4.0KW

Microwave output power

0.2-1.40KW continuously variable

Microwave frequency

2.45GHzplus/minus 25MHz

Max working temperature

1600 Celsius degree

Temperature measuring way

IR thermometer(U.S.A. Raytek)

Temperature range

250 Celsius degree -1650celsius degree.

Temperature accuracy

plus/minus 0.5%

Atmosphere system

air

Max loading space

120x120x40mm(LxWxH)

Cycle cooling water flow

more than 0.8m3/h

Cycle cooling water pressure

more than 0.15MPa

Cycle cooling water total hardness

less than 60mg/L(tap water can replace it)

Control system

embedded system and touch screen, connected with PC, with data memory and printing function

Microwave leakage

less than 1mw/cm2, (national standard is less than 5 mw/cm2)

System outside dimension

750x750x660mm(LxWxH)
