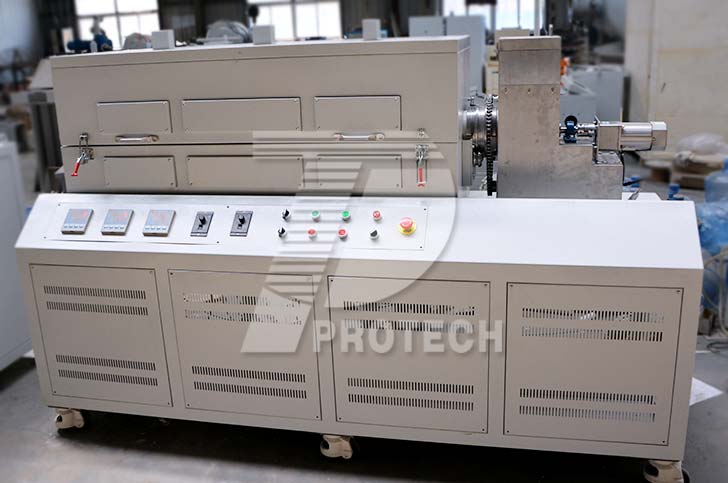

High temperature Rotary tube furnaces
model:PT-R1300

High temperature Rotary tube furnaces

    Application:  Rotary tube furnaces consist of heating coils/ rods surrounding a cylindrical cavity where temperature is controlled by a thermocouple. A rotary tube furnace is available as single or multi-zone, split design. They also come in either continuous or batch rotary tube furnaces. Many tube furnaces are equipped with two or more heating zones and can produce temperatures up to 1300°C. The general design will vary based on process temperature, throughput, atmosphere requirements, characteristics of material, cooling requirements, etc.
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Brief introduction
Rotary tube furnaces consist of heating coils/ rods surrounding a cylindrical cavity where temperature is controlled by a thermocouple. A rotary tube furnace is available as single or multi-zone, split design. They also come in either continuous or batch rotary tube furnaces. Many tube furnaces are equipped with two or more heating zones and can produce temperatures up to 1300°C. The general design will vary based on process temperature, throughput, atmosphere requirements, characteristics of material, cooling requirements, etc.

Product Specification
Model PT-R1300
Display LED
Max Working Temp. 1300℃
Heating Rate 0~20℃(suggest 0~15℃)
Tube Material Mullite
 Tube Diameter OD130mm
Heated Zone Length 1000mm
Heated Zone Num 3
Tube length 1700mm
Max Rotary Speed 10RPM
Max Angle of Inclination 10°
Heating Element SiC rod
Thermal Couple S type
Input Hopper Capacity As required
Discharge Hopper Capacity As required
Feeding mode Spiral or vibrated feeding
Chamber Material Ceramic fiber
Working Voltage As required
Temperature Control PID automatic control via SCR power control
Warranty One year warranty(not include heating element and other wear parts)

Design features
  1. The tube is rotary design for uniform heating.
  2. Three independent heating zone with independent temperature controller to guarantee good uniform heating.
  3. Adjustable slanted control for sintering material in / out.
  4. Continuous spiral feeding.
  5. 30 steps of programmable temperature, PID automatic temperature controller.
  6. Combined aural and visual alarm for accident of over temperature & thermocouple broken, and the power supply of the heating part will cut off automatically.
