model:MSK-2150

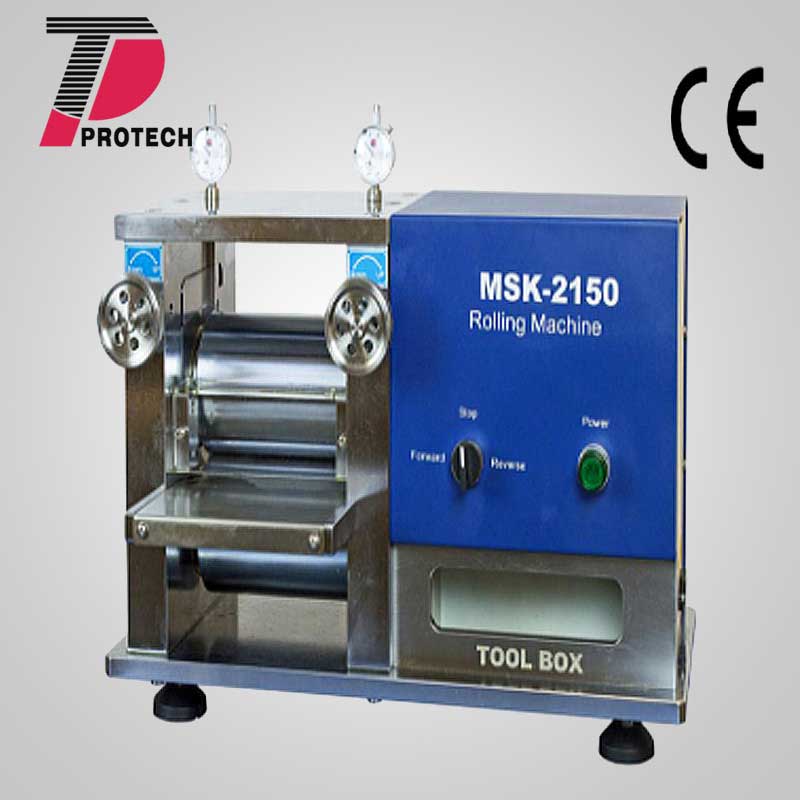

Electric Precision 6" Width Rolling Press with Tool Box - M

  • temperature:
    • 1200
    • 1400
    • 1700
  • chamber size:
Contace us for customize send-email: info@lab-furnace.com
Zhengzhou Protech Zhengzhou Protech
Detailed Parameters Of The Product
Application:
MSK-2150 is a 150mm width ( 6") precision electric rolling press with a compact body. It is an ideal rolling press for adjusting thickness and increasing active material density of the electrodes in Li-Ion batteries research after coating and drying.
Technical parameters:
Features:
  • Rollers can be rotated back and forth.
  • Plexiglas safety barricade.
  • Thickness can be adjusted freely, easy to operate.
 MSK-2150 is a 150mm width ( 6") precision electric rolling press with a compact body. It is an ideal rolling press for adjusting thickness and increasing active material density of the electrodes in Li-Ion batteries research after coating and drying.


Model Electric Precision 6" Width Rolling Press with Tool Box - MSK-2150

Structure
  • Heavy duty steel frame, gears and handle
  • Dual micrometer for accurate thickness adjustment in the range 0 - 1.5 mm
  • Built in tool box for easy operation & safety barricades (infront and behind rollers)
Rolling Width 0~150mm
Constant Rolling Speed 35 mm/ second
Power 120W
Working Voltage
  • AC 208-240V single phase, 50Hz
  • 220V AC Power plug is not included.
Overall Dimensions 520mm(L) x 220mm(W) x 320mm(H)
Net Weight 100kg
Compliance CE Certified
Warranty
  • One year limited with lifetime support
  • Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Application Notes Important announcement (please read this before place the order)
  • The MSK-2150 roller is specially designed for battery R&D in terms of its advantages as affordable
  • Must use acetone to clean rollers' surface after each use
  • Never rolling material with hardness > 50HRC
  • If the machine will be idle for a long period of time, please apply atni-rust lubricant on the rollers
  • The minimum thickness of the rolled sheet should depend on the physical property of the material.
